Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > 300/1000KG Manual Small Hydraulic Scissor Platform Lift Table
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Tonghe
Model Number:
HH Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300/1000KG Small Hydraulic Lifting Platform TableNegotiableMOQ: 10 Pieces -
Mobile Lift Table 300KGNegotiableMOQ: 5 Pieces
-
300/1000KG Hydraulic Manual Scissor Lift TableNegotiableMOQ: 10 Pieces
-
1.5T/2T/2.5T/3T Manual Hydraulic Hand Pallet Lift JackNegotiableMOQ: 6 Pieces
-
2.5T Hydraulic Jack Manual Hand Pallet TruckNegotiableMOQ: 6 Pieces
Place of Origin
Zhejiang, China
Brand Name
Tonghe
Model Number
HH Series
Lift Mechanism
Scissor Lift
Lift Drive / Actuation
Hydraulic
Rated Loading Capacity
300-1000KG
Max. Lifting Height
500-1500mm
Table Size
600*500-1200*600mm
Overall Dimensions
It depends
Weight
85-130KG
Certification
CE/ISO
Warranty
1 year
After-sales Service Provided
No overseas service provided
Specifications

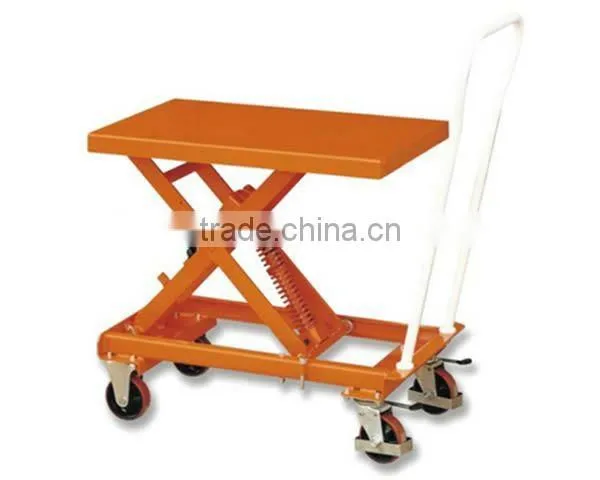

300/1000KG Manual Small Hydraulic Scissors Platform Lift TableSuitable for transporting machinery & large tool chests,etc
Manual hydraulic platform truck lift table
1.Easy action foot operated hydraulic lift for raising table top to desired level.
2.Hand operated table descent control.
3.Over load by-pass valve protects operator and pump.
4.Economic & reliable
Specifications
Rated Capacity | Kg | 300 | 500 | 700 | 1000 | |
Max.Lifting Height | mm | 500~900~1200~1500 | ||||
Lifting Speed | mm/time | 20 | ||||
Falling Speed | Can be controlled | |||||
Table Size | mm | 600×500~800×500~900×520~1000×520~1200×600 | ||||
Overall Size | L | mm | 600~800~1000~1200 | |||
W | mm | 500~520~600 | ||||
H | mm | 600~900~1000~1100~1300 | ||||
N.W | kg | 85~110~130 | ||||
Wheel Dia. | Front | mm | φ125 | |||
Back | mm | φ125 | ||||
