Help Center900*600mm Single Head Acrylic Fabric CO2 Laser Cutting Machine
Related Products
-
900*600mm (35 Inch *23 Inch) Fabric Leather PlyWood Acrylic Sheet CO2 Laser Cutting MachineNegotiableMOQ: 1 Set -
Table Top Laser Engraving Stamp MachineNegotiableMOQ: 1 Set
-
40W Mini Portable Desktop CO2 Laser Engraving MachineNegotiableMOQ: 1 Set
-
Desktop Small Laser Stamp Carving Engraving MachineNegotiableMOQ: 1 Set
-
Mimi CO2 Laser CNC MachineNegotiableMOQ: 1 Set
Specifications
It's mainly used to engrave and cut many nonmetal materials, controled by computer, easy to operate, high speed, high precision.This laser cutting machine is mainly used to engrave and cut many nonmetal materials, controlled by computer, easy to operate, high speed, high precision.
Features
1) Laser power: 80W
2) Cutting thicknes: 0-25mm(Plexiglass(acrylic), others determined by materials
3) Minimum shaping character: Chinese character 2x2mm, Letter 1x1mm
4) Resolution ratio: < 0.01mm
5) Power supply: AC220V± 10%, 50Hz
6) location precision: < 0.01mm
7) Number of hanged line: 90/line
8) Gross power: 1250W
9) Operating temperature: 0oC-45oC
10) Operating humidity: 5-95%(Free of condensed water)
11) Engraving speed: 0-90000mm/min
12) Cutting speed: 0-48000mm/min
13) Graphic format supported: BMP,PLT,AI,DXF, DST
Applicable Materials

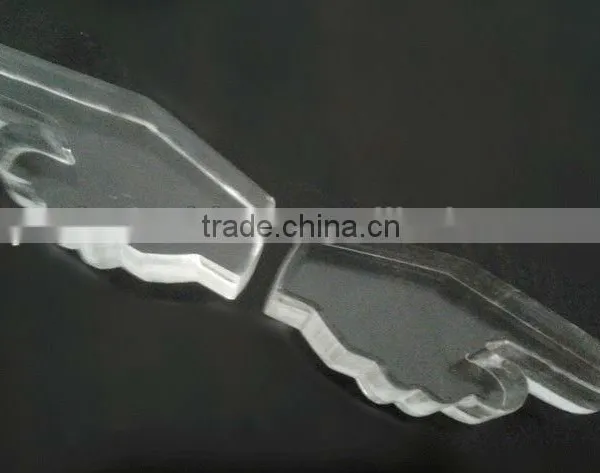

Cloth, leather, plexiglass(acrylic), wooden product, plastic, rubber, crystal ceramic tile, jade.
Applicable Industry
This series of machine is suitable to professional user who is concerning about processing result and comprehensive performance in garment, leather, cloth Toy computerized embroidery and clipping, cutting of template, art gift, advertisement decoration, building upholster, package, printing, paper product and other industries.
Basic configuration
Step motor import from Germany
Adopt 64 bits DSP chip and automatic off-line control system
Six balanced straight-line guide tracks from Japan
70W CO2 glass laser tube
The laser lens import from Singapore completely
Chinese-English LCD manifestation mold a combination
Laser provide constant temperature with cool package.
Specification
Type |
TH-960C |
Laser Power |
80W |
Working Area |
900*600mm |
Cutting Speed |
0-48000mm/min |
Engraving Speed |
0-90000mm/min |
The Accuracy of Repeated Orientation |
≤ ± 0.05mm |
Minimum Line Width |
0.1mm |
Connecting Way |
PCI / USB online/offline reading U flash |
Cooling Way |
Circulation Water Cooling |
Power Supply |
220V / 50Hz / 1kVA |
Net Weight |
210kg |
Dimension of Machine |
1460*1080*1180mm |
