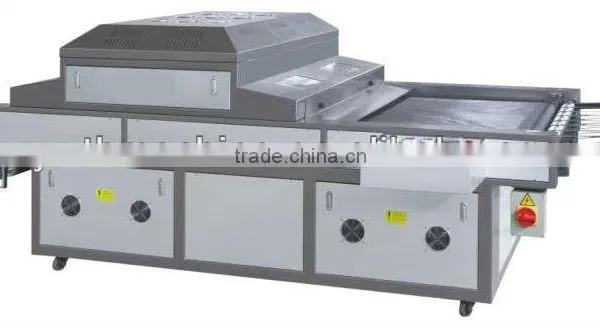

PLC Control Conveyor Belt UV Drying Machine

Name: PLC Control Conveyor Belt UV Drying Machine
Brand: Tonghe
SKU: 141518354
Availability: InStock

PLC Control Conveyor Belt UV Drying Machine thumbnail-1

PLC Control Conveyor Belt UV Drying Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, Conveyor Belt UV Drying Machine

Place of Origin:

Zhejiang, China

Contact Supplier Request Quote Chat Now

Yiwu Tonghe Imp. & Exp. Trading Firm

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, Conveyor Belt UV Drying Machine

Place of Origin Zhejiang, China

Brand Name Tonghe

Model Number 800/1050UV

Voltage 380V

Power(W) 2400

Dimension(L*W*H) See Table Below

Weight See Table Below

Certification CE ISO

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Features

800UV/1050UV are desigened for using with the full automaic stopcylinder screen press they also can be used with ofset machine for UV drying. They are widely used in the field of screen printing, printing and dyeing,plating and electron circuitry board and so on for drying,dehumidifying and UV soildifying ect.
1.Three groups of UV lamps are controlled independently.Three choice for the UV intensity separately are half,3/4 and full power,which can prolong the life of the lamp and save energy.It also shows the irradiance intensity and the using life timely.
2.Each lamp independently has its exhaust sytem(one group),run automatically,save energy and effectively control the inside temperature.
3.The inside temperature is inspected multipointly,if the temperature is abnormal the machine will stop automatically,as well as the cover will lift automatically.
4.It has conveyer belt rectify a deviation system,with adsorption,use imported TEFION belt.
5.The conveying speed is adjusted frequency conversion,the max is up to 60m/minute.
6.Whole machice is controlled by PLC.

Model	800UV	1050UV
Speed	60m/min.	60m/min.
UV Lamp Power	8KW3(Pcs)3(Choice)	8KW3(Pcs)3(Choice)
Effective Solidify Width	850mm	1100mm
Conveying Motor Power	200W	200W
Exhaust Fan Power	0.55KW*3	0.55KW*3
Absorption Fan Power	1.5KW*2	1.5KW*2
Overall Dimensions	320014501200mm	320017001200mm
W.T	850KGS	1000KGS
