Help CenterTG-250 Tiangang Soya Beans Milk Producing Plant Tofu Making Line
Related Products
-
TG-100 Shanghai Automatic Commercial Tofu Machine / Tofu Making MachineUS$ 1,800 - 2,500MOQ: 1 Piece -
T-30 Shanghai Automatic Tofu Machine / Tofu Making MachineUS$ 1,030 - 1,300MOQ: 1 Set
-
TG-80 Shanghai Automatic Commercial Old Tofu MachineUS$ 1,300 - 1,600MOQ: 1 Set
-
JM-80 Commercial Colloidal Mill Peanut Butter Making MachineUS$ 1,200 - 1,400MOQ: 1 Piece
-
TGM-300 Shanghai Food Grinding Machine /Paste Making Machine /Soy Milk Making MachineUS$ 2,200 - 2,500MOQ: 1 Piece
Main technical data:
Voltage:380V/50Hz
Improve soybean power:750W
Grindin & Separating power:4KW+3KW
Input (soybean):100kgs/Hr
Boiling pan capacity: 270L*2
Suction pump capacity: 750W+750W
Size: 1400*1800*2300mm
(Need to bring their own steam boiler, steam evaporation: 70kg/hr more
The types of electric heating boilers, gas heating, diesel heating, coal or wood heating, etc. Select the appropriate model to use their own)
Do tofu, the need to increase Bean product pressing machine

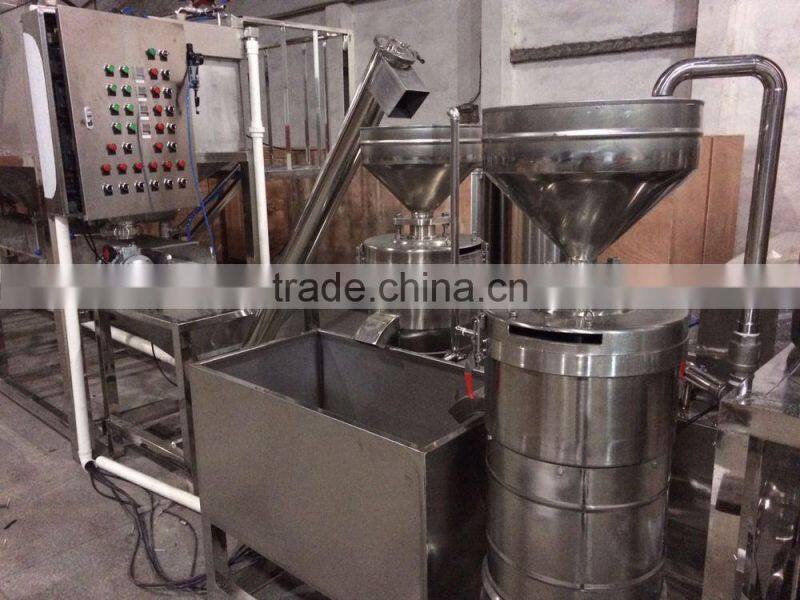

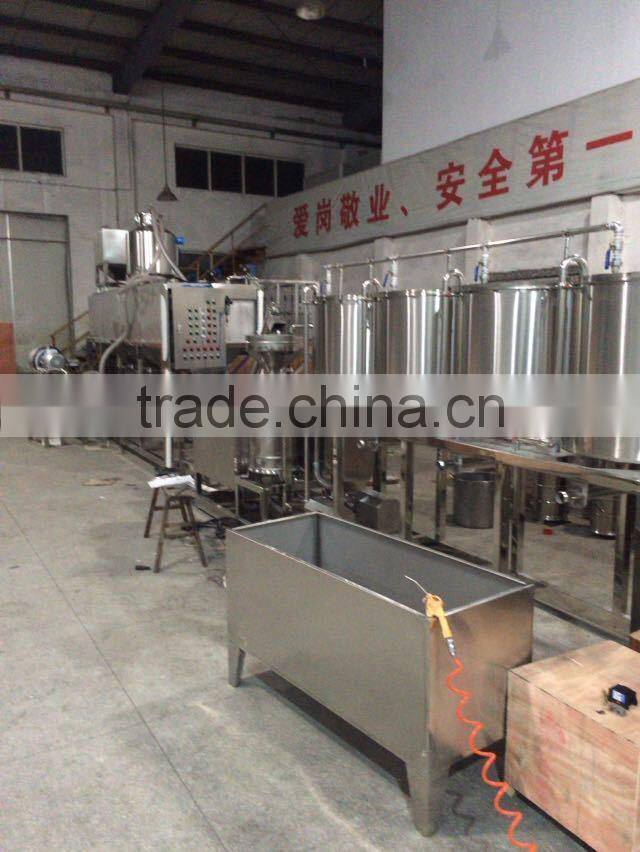

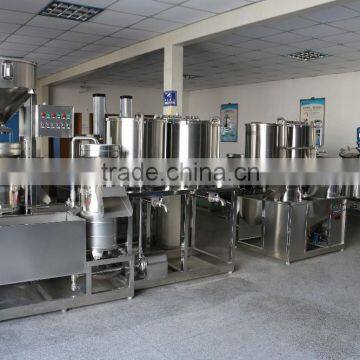

The machine of entire stainless steel structure, twice grinding paste systems, two barrel cooking soymilk, composed of two grinding & separating machines, suction pumps, bean-dreg pumps, soybean milk barrel, bean-dreg barrel, cooking soybean barrel and so on. External connect steam.
Application:
Small scale bean processing factory, supermarket and so on.
We can custom design it to suit customers'needs
Technical Data |
Pressure mode |
Heating Power |
Grinding Power |
Pump Power |
Boiling pan capacity |
Weight |
Size |
TG-250 |
380V 50Hz |
External Boiler |
5KW +5KW |
750W+1500W |
250L*2 |
500Kg |
1400*1800*2250mm |
TG-150 |
220V 50Hz |
External Boiler |
2200W +1.5KW |
370W+750W |
170L*2 |
300Kg |
1000*1200*1850mm |
TG-100 |
380V 50Hz |
18kw |
1500w |
120w |
110L |
200Kg |
650*2050*1550mm |
