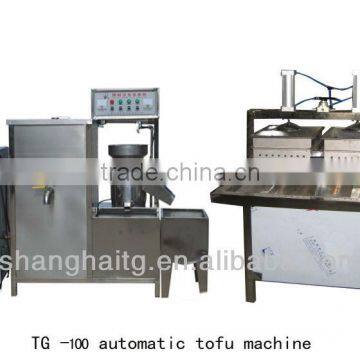

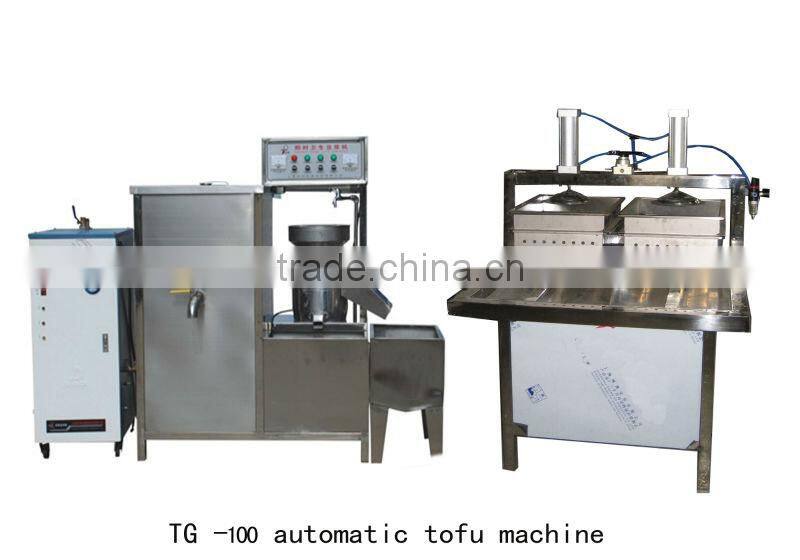

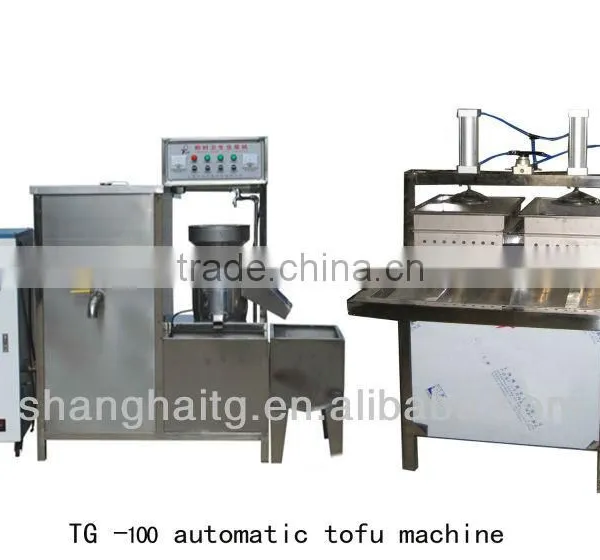

TG-100 Automatic Commercial Tofu making machine
| Model Number | TG-100 |
| Power source | 380V /50Hz |
| Heating power | 18KW |
| Grinding paste power | 1.5KW |
| Pump power | 120W |
| Input(soybean) | 35kg/h |
| Output | 200L |
| Boiler size | 500*600*1250mm |
| Soya-bean milk size | 1600*700*1550mm |
| Pressing size | 2550*650*2200mm (Pump does not include ) |
| Tofu box size | 350*350*60mm |
| Weight | 75kg |
| Tofu pressing machine |
Pump does not include
|
Related products
Technical Data |
Voltage |
Heating Power |
Grinding Power |
Pump Power |
Boiling pan capacity |
Weight |
Size |
TG-30 |
220V 50Hz |
6kw |
750w |
-- |
40L |
55Kg |
960*500*1350mm |
TG-50 |
380V 50Hz |
15kw |
1500w |
90w |
80L |
120Kg |
650*1200*1550mm |
TG-80 |
380V 50Hz |
18kw |
1500w |
90w |
100l |
150Kg |
650*1690*1550mm |
Technical Data |
Pressure mode |
Heating Power |
Grinding Power |
Pump Power |
Boiling pan capacity |
Weight |
Size |
TG-250 |
380V 50Hz |
External Boiler |
5KW +5KW |
750W+1500W |
250L*2 |
500Kg |
1400*1800*2250mm |
TG-150 |
220V 50Hz |
External Boiler |
2200W +1.5KW |
370W+750W |
170L*2 |
300Kg |
1000*1200*1850mm |
TG-100 |
380V 50Hz |
18kw |
1500w |
120w |
110L |
200Kg |
650*2050*1550mm |
The machine of entire stainless steel structure, twice grinding paste systems, two barrel cooking soymilk, composed of two grinding & separating machines, suction pumps, bean-dreg pumps, soybean milk barrel, bean-dreg barrel, cooking soybean barrel and so on. External connect steam.
Application:
Small scale bean processing factory, supermarket and so on...
Company Introduction
Shanghai Tiangang Machine Manufacture Co., Ltd. integrates design, manufacture, sale and service. We specialize in manufacturing and selling soy bean machinery. Our main products are High speed grinding/separating machines, Commercial soybean Milk Machines, such as soya milk making machines, tofu making machines, dry bean curd machines, Japanese style tofu machines and related equipment.
We can offer soybean soaking & washing, auto exalting, grinding & separating, soymilk cooking & coagulating, forming & U.H.T sterilizing, cooling & packing whole systems.
We have a professional product development team and an after-sales service team. We are able to produce, install and adjust the machines, and can meet the requests of customers.
