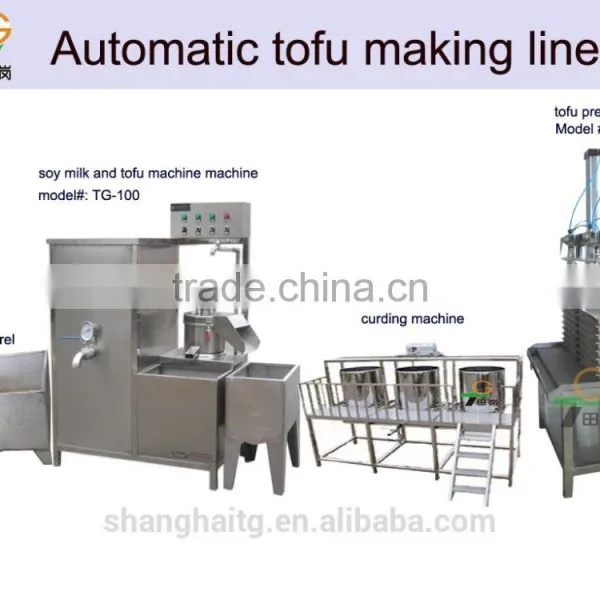

Automatic Soy Milk and Tofu Make Line

Automatic Soy Milk and Tofu Make Line photo-1
Automatic Soy Milk and Tofu Make Line photo-2
Automatic Soy Milk and Tofu Make Line photo-3
Automatic Soy Milk and Tofu Make Line photo-4
US$ 7,700 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Tiangang
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name Tiangang
Model Number TG-100
Type Soybean Machinery
Voltage 380V/50HZ
Power(W) 18kw
Weight 150kg
Dimension(L*W*H) 160*70*155 cm
Warranty 1 Year
After-sales Service Provided No overseas service provided

automatic soy milk and tofu make line

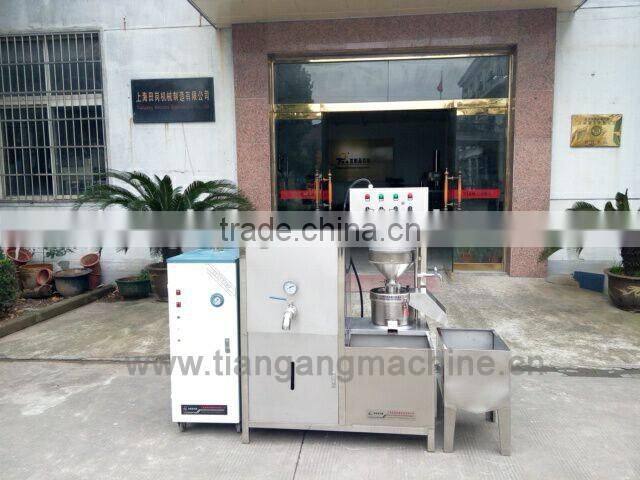

TG-100 soymilk/tofu making machine
Product Brief:
1,soymilk/tofu maker
2,suitable for small scale soymilk processing.
3.external steam boiler



TECHNICAL DATA VOLIAGE Heating Power Grinding paste power Souce pan capacity Weight Size
T-30 220/50Hz 6KW 750W 40 L 42 kg 450 x 1060 x 1350mm
TG-30 220/50Hz 6KW 750W 40 L 40 kg 500 x 1060 x 1350mm
TG-50 380v 6KW/9KW 1.5KW 90 L 100 kg 650 x 1200 x 1550mm
TG-100 380v 18KW 120w 110 L 88 kg 500 x 600 x 1250mm



 automatic soy milk and tofu make line

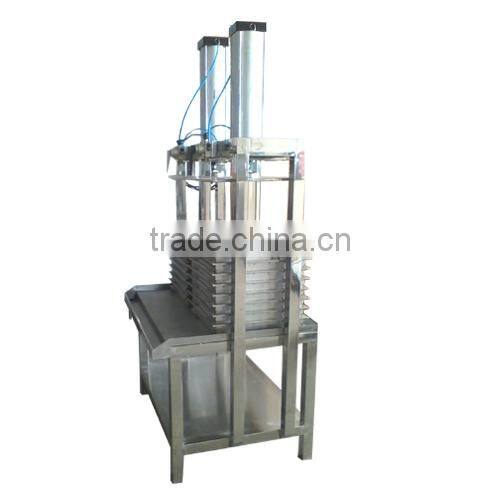

Y-7 aerodynamic force tofu press machine

Description:
Consist of full stainless steel , up and down of the plate controlled by the two switch of the cylinders, and the speed can controlled through adjust the air rate.
Features:
1,Using tofu grid small structure at the bottom than the upper part , overlapping tofu grid-molding press, a high degree of fixed positioning makes fashioned tofu height standard uniform.

This model which is occupys little area, low energy consumption, high efficiency, easy operation etc.

Apply to Beancurd Mill make mass production.



Technique datas:
diameter of air cylinder :120mm, route:500mm
Maximun pressure:0.8MPa
diameter of piston rod:30mm
machine size:1200*750*2200mm
Press force:Aerodynamic force

plastic Tofu mould size:380*380*60mm
Voltage:220v/380v,50hz ,pump power:1.5kw
Mould quality:6*2 pieces

include 12 plastic moulds

Customer can according to their request offer the size of tofu mould, we will custom it.

Mark:not include the air pump





Spare parts :

1, grinding wheel

2, filter screen

3,bean pump  suction

4,tofu box (plastic or stainless steel )

5,cellular net

6,milk point barrel



Company Introduction



Shanghai Tiangang Machine Manufacture Co., Ltd. integrates design, manufacture, sale and service. We specialize in manufacturing and selling soy bean machinery. Our main products are High speed grinding/separating machines, Commercial soybean Milk Machines, such as soya milk making machines, tofu making machines, dry bean curd machines, Japanese style tofu machines and related equipment.

We can offer soybean soaking & washing, auto exalting, grinding & separating, soymilk cooking & coagulating, forming & U.H.T sterilizing, cooling & packing whole systems.

We have a professional product development team and an after-sales service team. We are able to produce, install and adjust the machines, and can meet the requests of customers.
