Detailed Product Description
Tofu machine
Capacity: 1000L of soya milk per hour
380V/50hz
Stainless steel structure

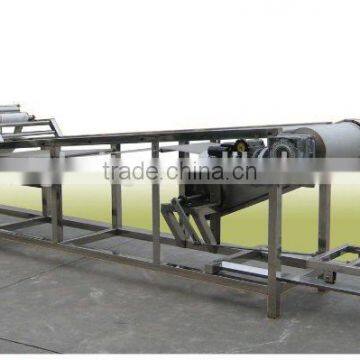

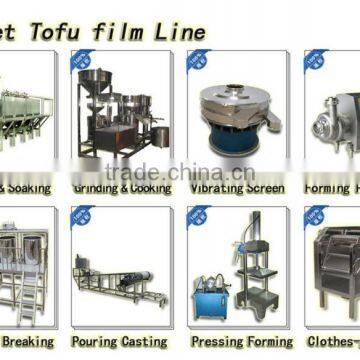

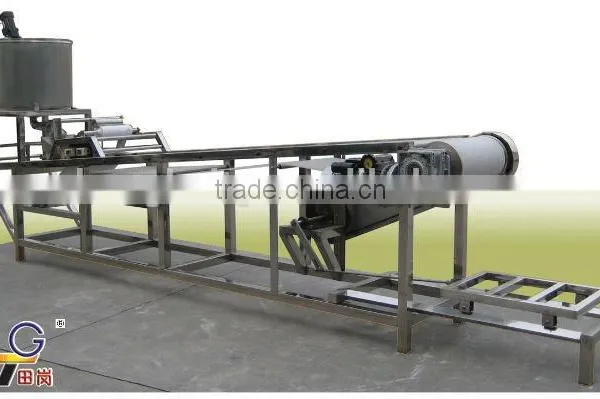

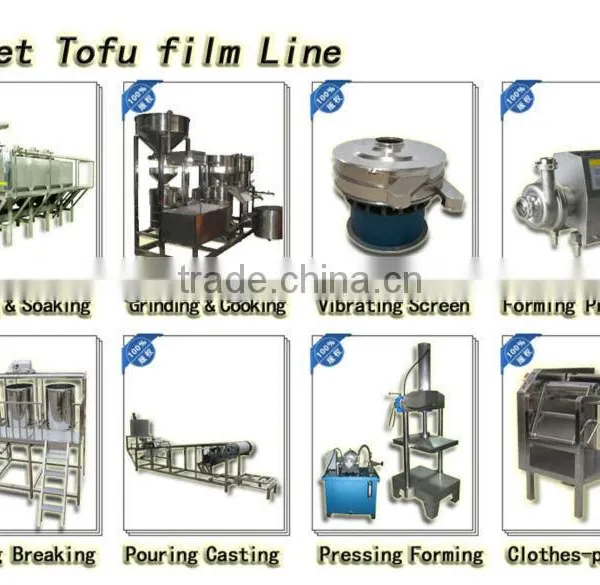

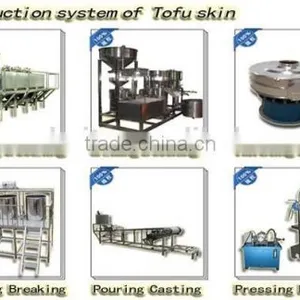

Tofu skin Line
We can custom design it to suit customers'needs
Tofu machine or soybean milk machine or Soybean Grinding and Cooking Machine TG-250
Detailed Product Description
large-scale soymilk, tofu machine series
Main technical data:
Voltage: 380V/50Hz
Improve soybean power:750w
Grinding & Separating power: 5KW+5KW
Input (soybean): 100kgs/Hr
Boiling pan capacity: 270L*2
Suction pump capacity: 750W*2
Size: 1400*1800*2300mm
Need to bring their own steam boiler, steam evaporation: 70kg/hr more.The types of the steam boiler are electric heating boilers, gas heating, diesel heating, coal or wood heating, etc. Select the appropriate model according to your need.
If you make tofu, you need to the Bean product pressing machine.

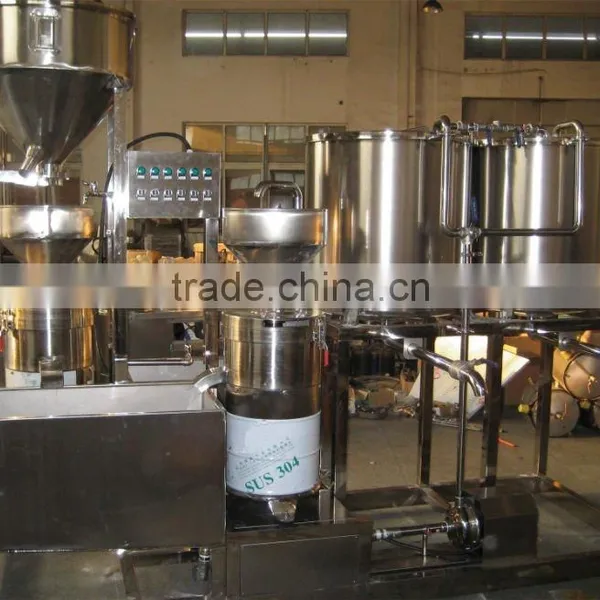

The machine is entirely stainless steel structure. There are twice grinding paste systems, two barrel cooking soymilk, composed of two grinding & separating machines, suction pumps, bean-dreg pumps, soybean milk barrel, bean-dreg barrel, cooking soybean barrel and so on. External connect steam.
Application: Small scale bean processing factory, supermarket and so on
We can custom design it to suit customers'needs
Technical Data |
Pressure mode |
Heating Power |
Grinding Power |
Pump Power |
Boiling pan capacity |
Weight |
Size |
TG-250 |
380V 50Hz |
External Boiler |
5KW +5KW |
750W+1500W |
250L*2 |
500Kg |
1400*1800*2250mm |
TG-150 |
220V 50Hz |
External Boiler |
2200W +1.5KW |
370W+750W |
170L*2 |
300Kg |
1000*1200*1850mm |
TG-100 |
380V 50Hz |
18kw |
1500w |
120w |
110L |
200Kg |
650*2050*1550mm |
