TG-150 SOYMILK PROCESSING PLANT FOR BAGPACK/BOTTLE PACK
Main technical data:
Voltage: 380V/50Hz(110V/60Hz)
Grindin & Separating power: 2.2KW+1.5KW
Input (soybean): 60kgs/Hr
Boiling pan capacity: 170L*2
Suction pump capacity: 750W+370W
Size: 100*1200*1500mm
(Need to bring their own steam boiler, steam evaporation: 45kg/hr more
The types of electric heating boilers, gas heating, diesel heating, coal or wood heating, etc. Select the appropriate model to use their own)
Do tofu, the need to increase Bean product pressing machine
The machine of entire stainless steel structure, twice grinding paste systems, two barrel cooking soymilk, composed of two grinding & separating machines, suction pumps, bean-dreg pumps, soybean milk barrel, bean-dreg barrel, cooking soybean barrel and so on. External connect steam.
Application:
Small scale bean processing factory, supermarket and so on.

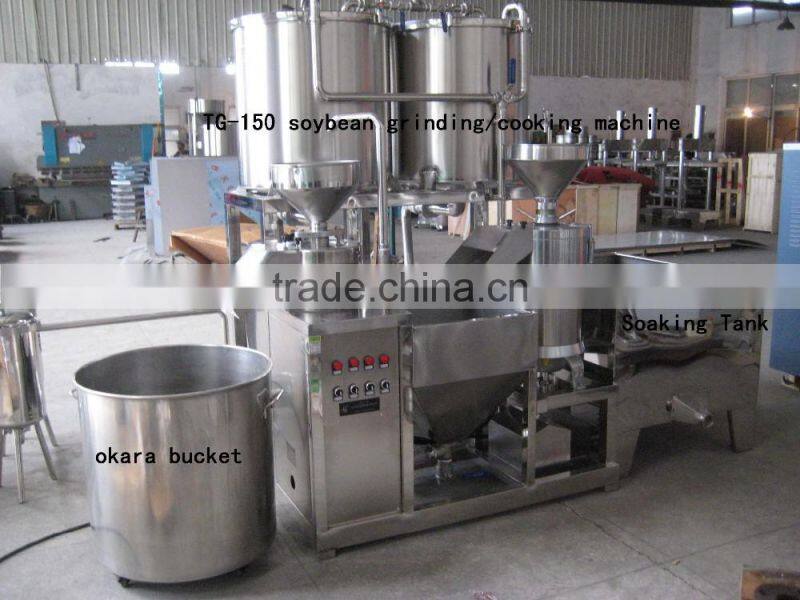

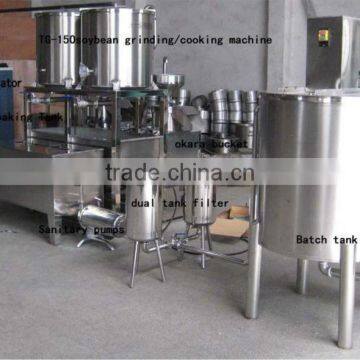

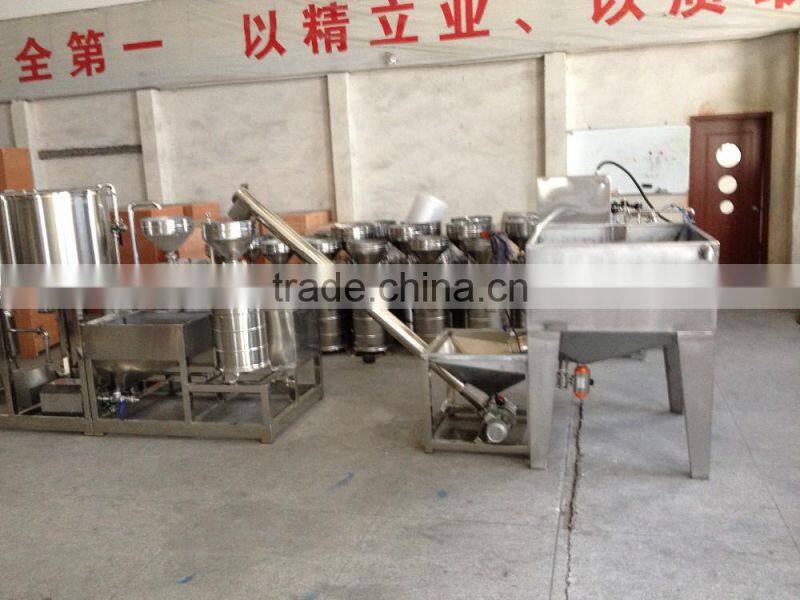

The TG-150 soy milk production line information, machine list, flowchart:
1. beans soaking & washing machine
2. soaked beans hoisting machine
3. TG-150 grinding & separating machine
4. steam boiler to cook the soy milk
5. soy milk and okara bucket
6. dual tank filter
7. soy milk pump
8. batch tank for soy milk blending
The ralated machines
Technical Data |
Pressure mode |
Heating Power |
Grinding Power |
Pump Power |
Boiling pan capacity |
Weight |
Size |
TG-250 |
380V 50Hz |
External Boiler |
5KW +5KW |
750W+1500W |
250L*2 |
500Kg |
1400*1800*2250mm |
TG-150 |
220V 50Hz |
External Boiler |
2200W +1.5KW |
370W+750W |
170L*2 |
300Kg |
1000*1200*1850mm |
TG-100 |
380V 50Hz |
18kw |
1500w |
120w |
110L |
200Kg |
650*2050*1550mm |
Description: This model can produce 200-350 bags per hour for soymilk.
Application:
Small scale bean processing factory, supermarket and so on.
Company Brief:
Shanghai Tiangang Machine Manufacture Co., Ltd. Integrates design, manufacture, sale and service. We specialize in manufacturing and selling soy bean machinery. Our main products are High speed grinding/separating machines, Commercial soybean Milk Machines, such as soya milk making machines, tofu making machines, dry bean curd machines, Japanese style tofu machines and related equipment.
Our superiority:
We are manufacturer.we design it and produce it by ourselves, we could offer customers more supports and more professional service.You could rest 100% assure by buying it from us,because we could supply you with technical support.And we could help you to fix problems.
Support Service:
we would offer 1year warranty,we would supply you the parts of cost price in 2 years. And we would supply you with technical support.
If yu have any question, please feel free to contact to me.Thank you!
