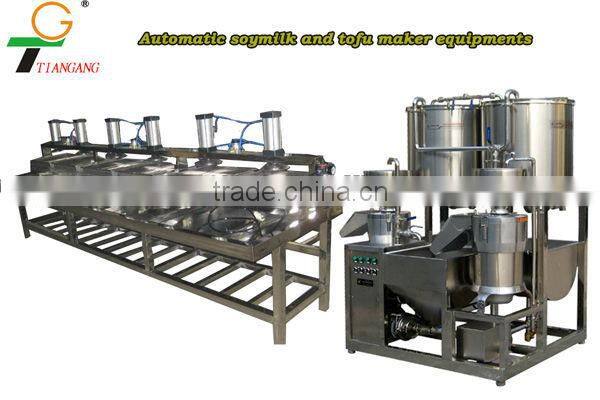

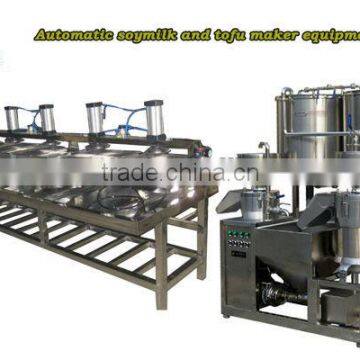

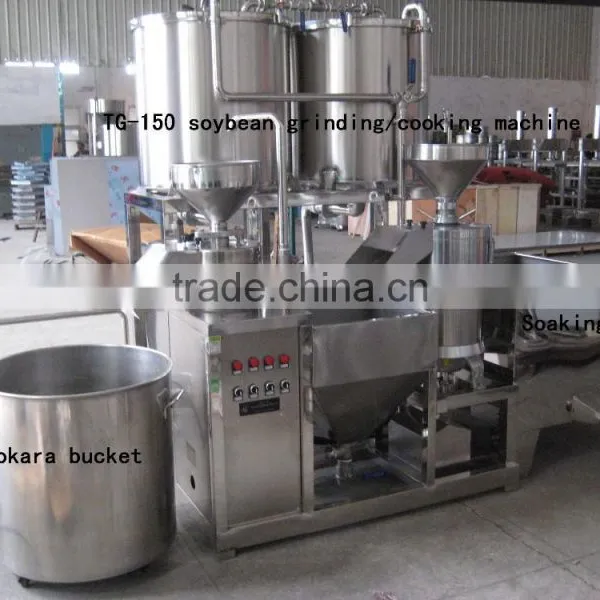

TG-150& Y-3D3 SOYMILK AND TOFU MAKING MACHINE
Specification
Model |
TG-30 |
TG-50 |
TG-80 |
TG-100 |
TG-150 |
TG-250 |
|
Capacity(soaked beans) |
5-6KG/HR |
10-12KG/HR |
15-20KG/HR |
20-30KG/HR |
40-60KG/HR |
80-100KG/HR |
|
heating supply |
electric |
electric or LPG(NEED CUSTOMIZE) |
electric or LPG(NEED CUSTOMIZE) |
External steam boiler, Steam capacity:>25kg/hr |
External steam boiler, Steam capacity:>50kg/hr |
External steam boiler, Steam capacity:>80kg/hr |
|
heating power |
6kw |
12kw |
18kw |
18KW |
36KW |
40KW |
|
cooking tank capacity |
80L/Hr |
120L/Hr |
160L/Hr |
220L/Hr |
600-700L/Hr |
1100L/Hr |
|
weight/G.W |
55/70kg |
105/120kg |
130/150kg |
140/160kg |
250/300kg |
420/500kg |
|
Over dimmensions |
1060*500 *1350mm |
600*1200 *1550mm |
680*1690 *1550mm |
500*600 *1250mm |
1000*1200 *1850mm |
1400*1800 *2200mm |
|
Main functions |
Beans grinding, okara separating, twice grinding,soymilk cooking |
||||||
Y-3D3 contious tofu press machine
Description:
Consist of full stainless steel , rack, tofu mould ,pressure control system and air Compressor .Simple structure, easy to operate, wash convenient , the tofu press height can easy control, the tofu looks nice , production operations save time and strength.
Apply to Beancurd Mill,Large-scale chains shop, canteens, restaurants etc.
Technique datas:
diameter of air cylinder :80mm, route:150mm
Maximun pressure:0.8MPa
tofu mould:460*460*60mm
machine size:3500*980*1300mm
Y-3D3 can press Six mould once only.
Divided into three groups switch control
Features:
1, The types of electric heating boilers, gas heating, diesel heating, coal or wood heating, etc. Select
the appropriate model to use their own)
2, The machine of entire stainless steel structure, twice grinding paste systems, two barrel cooking
soymilk, composed of two grinding & separating machines, suction pumps, beandreg pumps, soybean

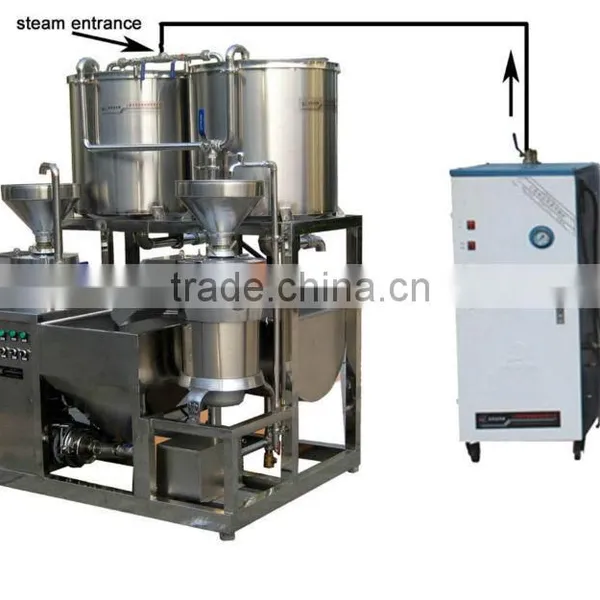

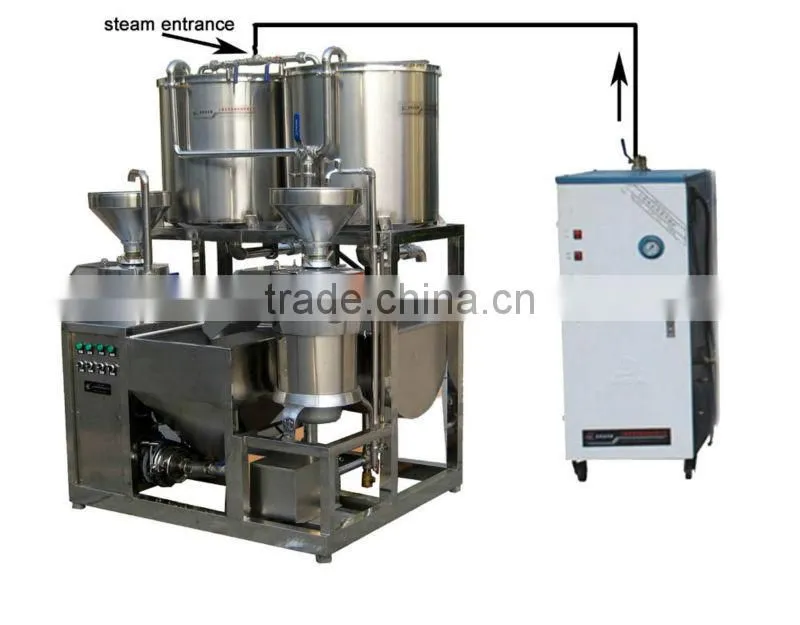

milk barrel, bean-dreg barrel, cooking soybean barrel and so on. External connect steam Steam generator .
3, Make tofu ,You just need added a coagulating barrel is OK. This press machine can make tofu about 240-300kg per hour.If you want to make more, just need added this press machine is OK.
Our company:
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for
about 15 years .Our products are widely used all over the world . Mainly including grinding machine,commercial soymilk
machine,instant tofu making machine,dried tofu and many other soybean processing machine . Also,we can provide
whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and
separating,cooking,breaking,pressing and sterilization.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are
know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
Any questions please feel free to contact me! Thanks for your attention.
