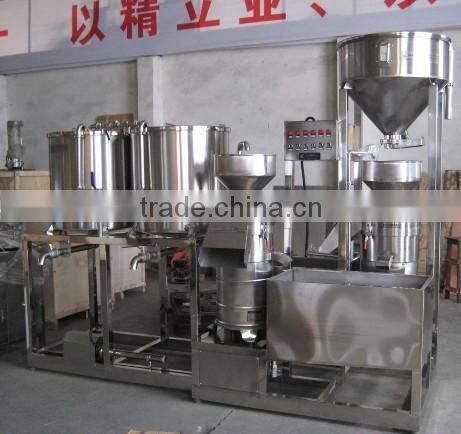

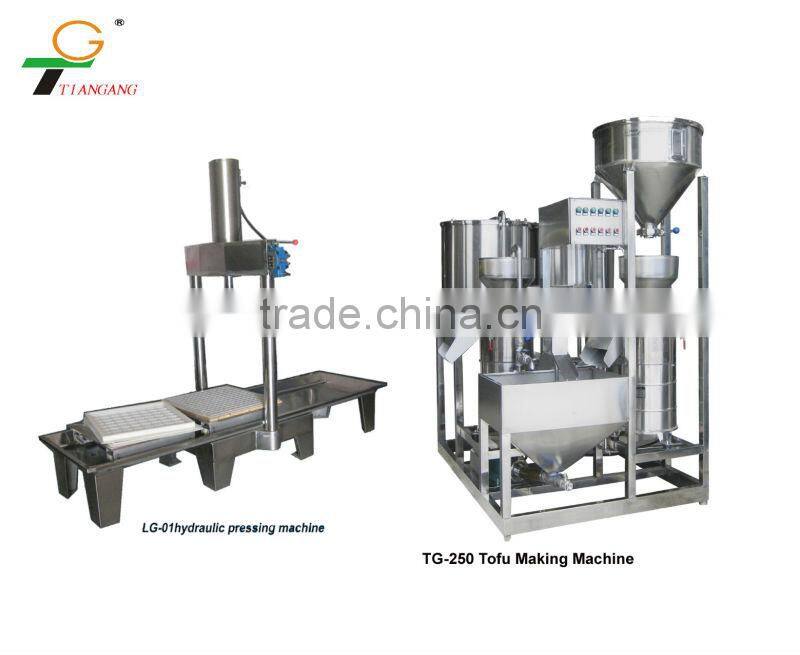

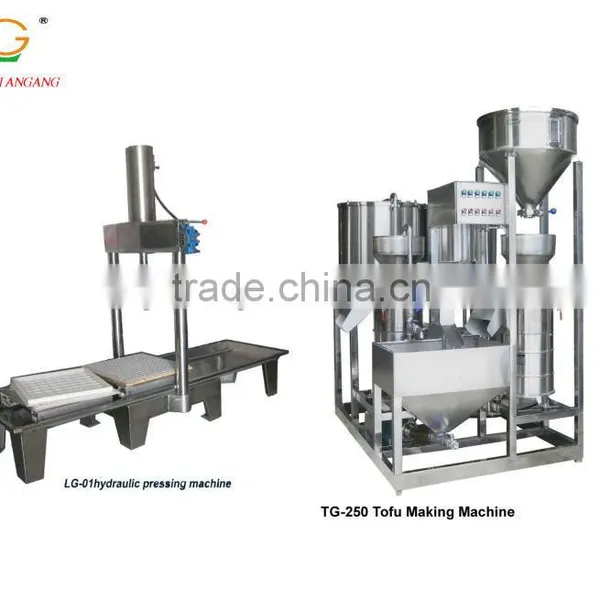

TG-250 soymilk and tofu making machine
Main technical data:
Model | TG-30 | TG-50 | TG-80 | TG-100 | TG-150 | TG-250 |
Capacity(soaked beans) | 5-6KG/HR | 10-12KG/HR | 15-20KG/HR | 20-30KG/HR | 40-60KG/HR | 80-100KG/HR |
heating supply | electric | electric or LPG(NEED CUSTOMIZE) | electric or LPG(NEED CUSTOMIZE) | External steam boiler, Steam capacity:>25kg/hr | External steam boiler, Steam capacity:>50kg/hr | External steam boiler, Steam capacity:>80kg/hr |
heating power | 6kw | 12kw | 18kw | 18KW | 36KW | 40KW |
cooking tank capacity | 80L/Hr | 120L/Hr | 160L/Hr | 220L/Hr | 600-700L/Hr | 1100L/Hr |
weight/G.W | 55/70kg | 105/120kg | 130/150kg | 140/160kg | 250/300kg | 420/500kg |
Over dimmensions | 1060*500 *1350mm | 600*1200 *1550mm | 680*1690 *1550mm | 500*600 *1250mm | 1000*1200 *1850mm | 1400*1800 *2200mm |
Main functions | Beans grinding, okara separating, twice grinding,soymilk cooking | |||||

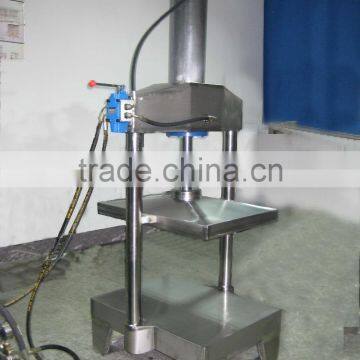

pressing way:Hydraulic force
Hydraulic pump power:220v/50hz
Power:750w
Machine size:2200*800*1850mm
Features:
(Need to bring their own steam boiler, steam evaporation: 100kg/hr more
The types of electric heating boilers, gas heating, diesel heating, coal or wood heating, etc. Select the appropriate model to use their own)
Suitable for making tofu ,hard tofu, curd skin, dried tofu and so on!
Structure:
The machine of entire stainless steel structure, twice grinding paste systems, two barrel cooking soymilk, composed of two grinding & separating machines, suction pumps, bean-dreg pumps, soybean milk barrel, bean-dreg barrel, cooking soybean barrel and so on. External connect steam.
Application:
Small scale bean processing factory, supermarket and so on.

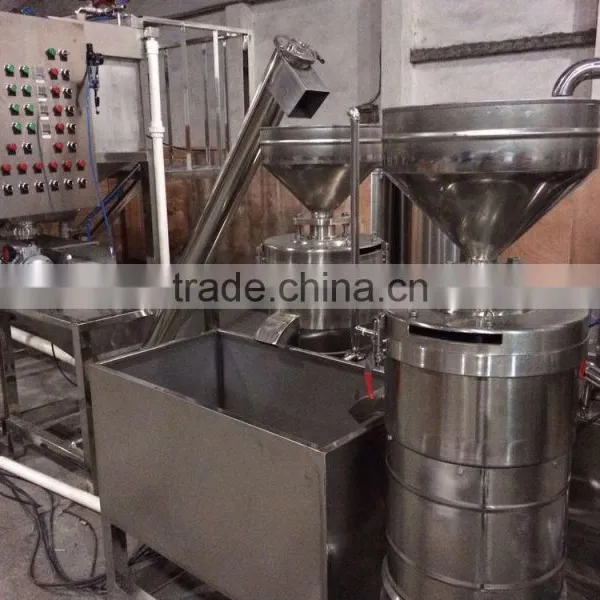

Products shows

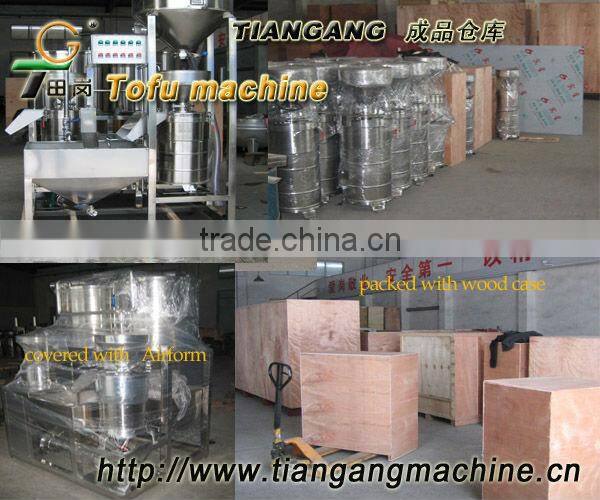

Our workshop and packag

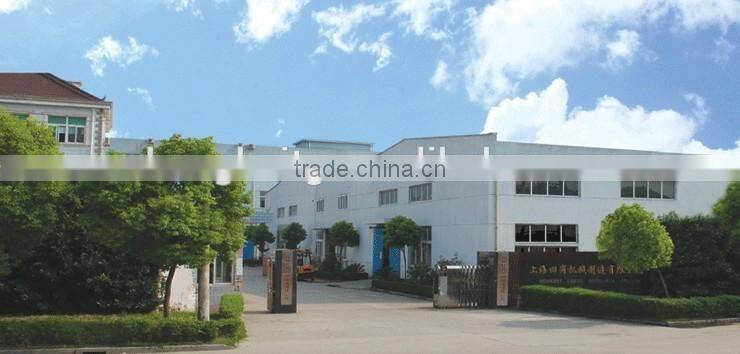

Our company:
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for
about 15 years .Our products are widely used all over the world . Mainly including grinding machine,commercial soymilk
machine,instant tofu making machine,dried tofu and many other soybean processing machine . Also,we can provide
whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and
separating,cooking,breaking,pressing and sterilization.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are
know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
