Aerodynamic Tofu Pressing/ Tofu Processing Machine Y-7

Aerodynamic Tofu Pressing/ Tofu Processing Machine Y-7 photo-1
Aerodynamic Tofu Pressing/ Tofu Processing Machine Y-7 photo-2
Aerodynamic Tofu Pressing/ Tofu Processing Machine Y-7 photo-3
Aerodynamic Tofu Pressing/ Tofu Processing Machine Y-7 photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
TianGang
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name TianGang
Model Number Y-7
Type Bean Curd Machine
Weight 180kg

  Aerodynamic tofu pressing/ bean curd processing Machine Y-7

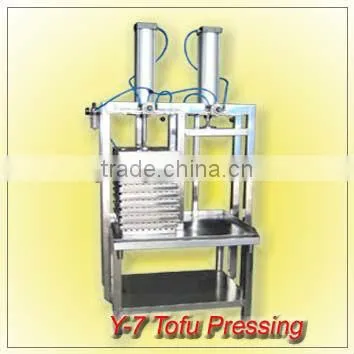

Y-7  aerodynamic force tofu press machine

Description:
Consist of full stainless steel , up and down of the plate controlled  by the two switch of the cylinders, and the speed can  controlled through adjust the air rate.
Features:
1,Using tofu grid small structure at the bottom than the upper part  , overlapping tofu grid-molding press, a high degree of fixed positioning makes  fashioned tofu height standard uniform.

Has a small footprint, low energy consumption, high efficiency, easy operation etc.

Apply to Beancurd Mill make mass production.

Technique datas:
diameter of air cylinder :120mm, route:500mm
Maximun pressure:0.8MPa
diameter of piston rod:30mm
machine size:1200*750*2200mm

 Y-7 can press 10-12 moulds once only.

Customer need according to their request offer the size of tofu mould, we will custom it.

Mark:not include the air pump

 Aerodynamic tofu pressing/ Tofu processing Machine Y-7Aerodynamic tofu pressing/ Tofu processing Machine Y-7

Tofu Pressing Forming Machinery



Technical Data

Pressure mode

Table size

Pressure stroke

Maximum pressure

Weight

Size

Y-4

Hoisting jack

580*600mm

400mm

10T

30Kg

600*680*1300mm

Y-6 / 6A

Hydraulic pump

600*800mm

500mm

16T

50Kg

800*850*1950mm

Y-5 / 7

Air compressor

Customized

500mm

0.8Mpa

120Kg

750*1250*1950mm

Y-8

Hydraulic pump

Customized

500mm

16T

250Kg

850*800*1950mm
