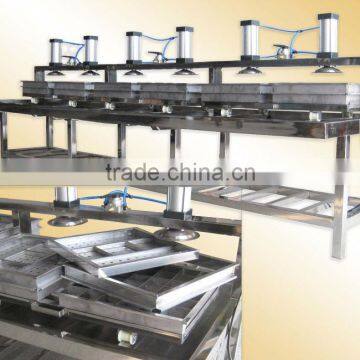

Aerodynamic tofu pressing machine Y-7

Y-5  aerodynamic force tofu press machine with draining
Description:
Consist of full stainless steel , up and down of the plate controlled  by the switch of the cylinder, and the speed can  controlled by adjust by the air rate.
Features:
1,Using tofu grid small structure at the bottom than the upper part  , overlapping tofu grid-molding press, a high degree of fixed positioning makes  fashioned tofu height standard uniform.
2,Draining worktable which  centralized drainage function set a good system for cleaning and sanitation, also easy to operate.
Apply to Beancurd Mill and bean products factory  produce tofu.
Technique datas:
diameter of air cylinder :120mm, route:500mm
Maximun pressure:0.8MPa
diameter of piston rod:30mm
machine size:2550*650*2200mm

 Y-5 can press 6-8 moulds once only.
Customer need according to their request offer the size of tofu mould, we will custom it. Common plastic tofu mould size:350×350×60mm , fashioned tofu height:40mm
Mark:not include the air pump
