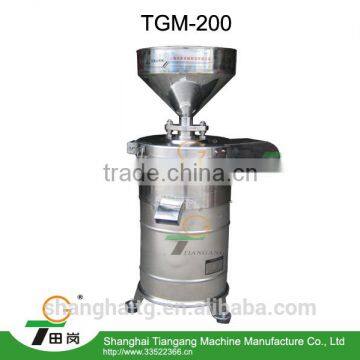

TGM-200 Shanghai TIangang Automatic Grinding and Separating Machine

TGM-200 Shanghai TIangang Automatic Grinding and Separating Machine photo-1
TGM-200 Shanghai TIangang Automatic Grinding and Separating Machine photo-2
TGM-200 Shanghai TIangang Automatic Grinding and Separating Machine photo-3
US$ 1,200 - 1,200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Tiangang
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name Tiangang
Model Number TGM-200
Type Soybean Machinery
Voltage 380V/50HZ
Power(W) 5kw
Weight 96kg
Dimension(L*W*H) 500*580*1150mm
Warranty 1 Year
After-sales Service Provided No overseas service provided

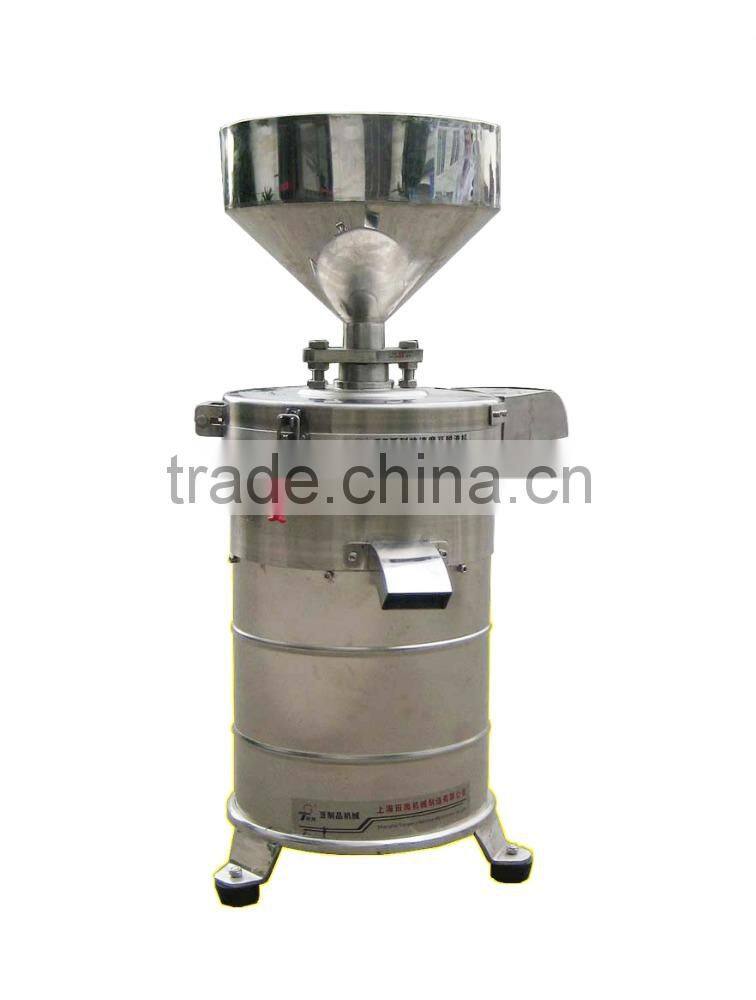

TGM-200 Shanghai TIangang Automatic grinding and separating machine

TGM-200 Shanghai TIangang Automatic grinding and separating machine

Product Description

Soybean grinder machine. Suitable for make soy milk, tofu etc. Application to the food processing plants.

Features:
Bean grinding, with thickly flavored bean paste emerging all at once, Okara removal
accomplished in a single operation, and flaky Okara discharged at the same time.

1, Unique structure of door body and grinding bore and motor special waterproof device, have an effective solution to the problem of leakage of water.

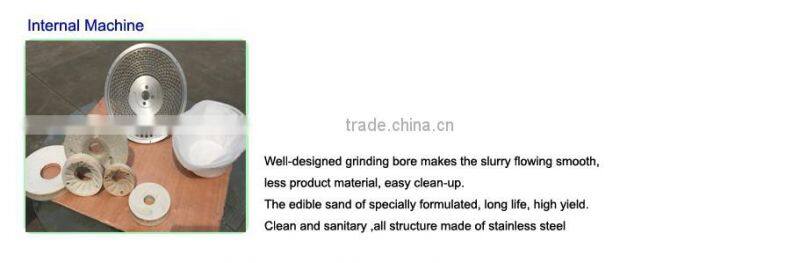

2, Well-designed grinding bore makes the slurry flowing smooth, less product material, easy clean-up.

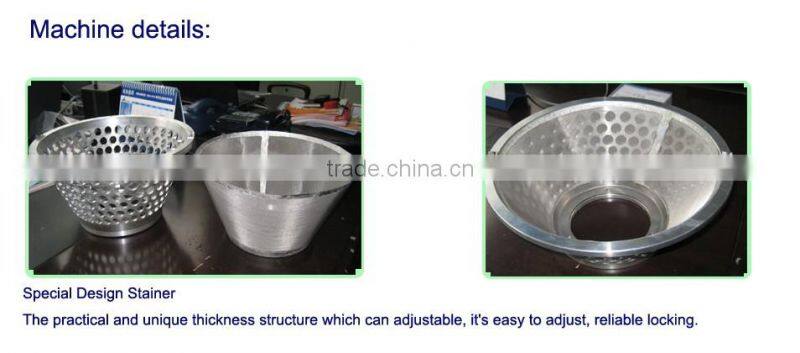

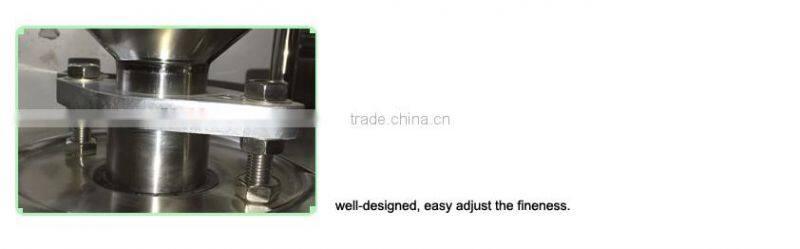

3, The practical and unique thickness structure which can adjustable, it's easy to adjust, reliable locking.

4,The edible sand of specially formulated, long life, high yield.

5, Clean and sanitary ,all structure made of stainless steel.

Applicable to grinding the soaked soy beans, soaked items.

Model NumberTGM-200
inputSoybean 175kgs/hr
Diameter of the grinding stone200mm
material of the grinding stonewhite corundum
Power5kw
Voltage380v/50Hz
filter90 mesh
Speedr2800 R.P.M.
Weight96kgs
Size500*580*1150mm



TGM-200 Shanghai TIangang Automatic grinding and separating machine

TGM-200 Shanghai TIangang Automatic grinding and separating machine



TGM-200 Shanghai TIangang Automatic grinding and separating machineTGM-200 Shanghai TIangang Automatic grinding and separating machine



Packaging & Shipping

 Packing: internal packing with plastic, to avoid the moisture inside the machine.

           outside wooden case packing, to avoid the damage during the shipping.

 shipping: 7-40 days deliver after supplier received the payment.





Our Services



Pre-sale service:

1.customize the machine for different buyers, process the design.

2.assist you make a production line or factory.

3. provide you a good counsel, until you find a best solution.



Sale service:

1.free accessory together with the machine.

you to make the technical statement and the details of the process.



After service:

1.     one year quality insurance.

2.     quanlity problem, we will send you spare parts free.



TGM-200 Shanghai TIangang Automatic grinding and separating machine

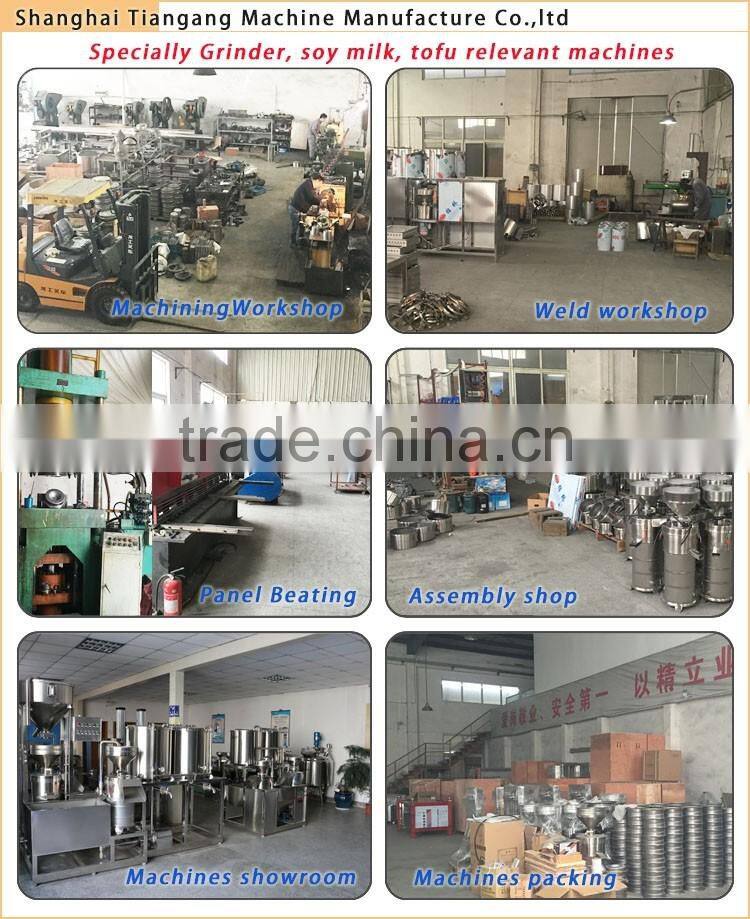

Company Information

 Shanghai Tiangang Machine Manufacture Co., Ltd. integrates design, manufacture, sale and service. We specialize in manufacturing and selling soy bean machinery. Our main products are High speed grinding/separating machines, Commercial soybean Milk Machines, such as soya milk making machines, tofu making machines, dry bean curd machines, Japanese style tofu machines and related equipment.

We can offer soybean soaking & washing, auto exalting, grinding & separating, soymilk cooking & coagulating, forming & U.H.T sterilizing, cooling & packing whole systems.

We have a professional product development team and an after-sales service team. We are able to produce, install and adjust the machines, and can meet the requests of customers.

TGM-200 Shanghai TIangang Automatic grinding and separating machine





FAQ



1. how long the soybean should be soacking ?

Answer: It depends on the soybean type, temperature and geographical location. But we will suggest to soaking it 12 to 14 hours usually.



2. how mach water should be mixed during the grinding.

Answer: Different customer has different tasting, some likes strong, and some like light. We suggest input 7 – 10 kgs water for 1kg dry soybean.



3.how many kilogram soy milk can be product by 1 kg dry soybean, and how many tofu can be output ?

Answer: usually 1 kg dry soybean can product 8 kgs soy milk, and can product 3 kgs old tofu, and product 5 kgs fresh tofu.

Noted: actually there is no standard answer for this question, it all depends on the operator’s skill.



4. how can I install and test the machine ?

Answer: all our machines has been tested before we shipping out, and all machines are completed during the shipping, the buyer will received whole set machine.



5. how long the quality insurance your company provide?

Answe: we provide one year quality insurance, except the comsumption parts, like strainer, heater, fuse and so on.

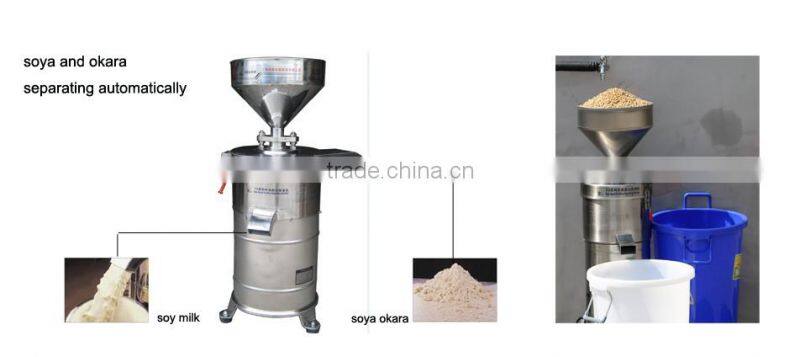

6.how can I separate the soya and soya okara?

Answer: our TGM series machine is designed automatic separating the soya and soya okara, two exit designed. The okara will be throw away during the machine running by weight, and soy milk will runoff to storage tank.
