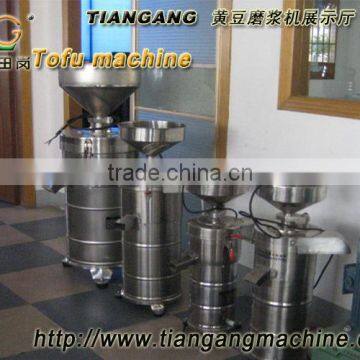

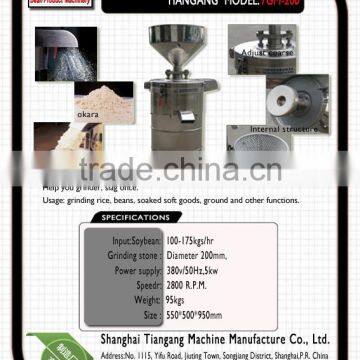

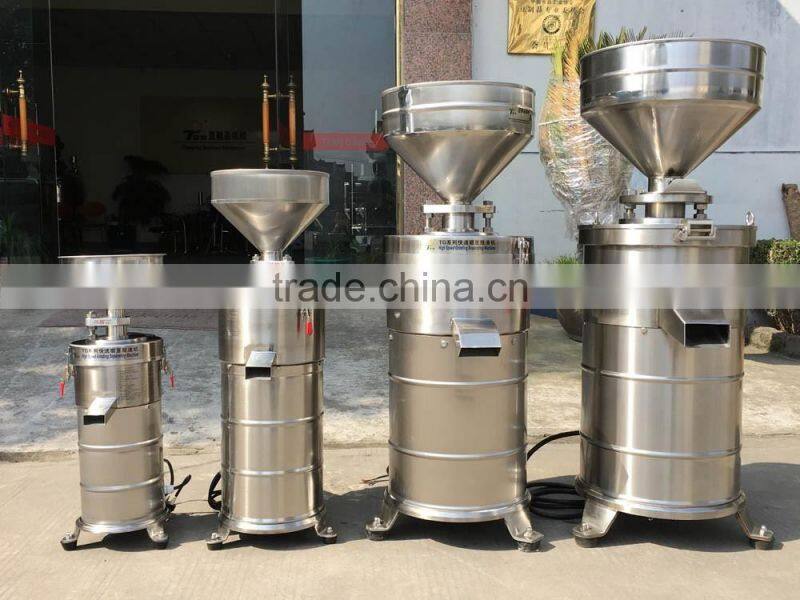

TGM-200 soybean grinding and separating machine
capacity: 100-175kgs/hr
Diameter of the grinding stone 200mm
Material of the grinding stone:white corundum.
Power:5kw,
Voltage:380v/50Hz
Filter:100 mesh ,
Speed:2800 R.P.M
Weight:96kgs
Size :500*580*1150 mm
Application:
Soybeans grinder machine. Suitable for make soy milk, tofu etc. Application to the unit
canteens, restaurants and small food processing plants.
Features:
Bean grinding, with thickly flavored bean paste emerging all at once, Okara removal
accomplished in a single operation, and flaky Okara discharged at the same time.
1, Unique structure of door body and grinding bore and motor special waterproof device, have
an effective solution to the problem of leakage of water.
2, Well-designed grinding bore makes the slurry flowing smooth, less product material, easy
clean-up.
3, The practical and unique thickness structure which can adjustable, it's easy to adjust,
reliable locking.
4,The edible sand of specially formulated, long life, high yield.
5, Clean and sanitary ,all structure made of stainless steel.
Applicable to grinding the soaked soy beans, soaked items.
Related Products
Technical Data | Voltage | Motor Power | Input (Soybean) | Diameter of the grinding stone | Weight | Size |
TGM-100 | 220V 50Hz | 750w | 15-30Kg/Hr | 95mm | 22Kg | 960*500*1350mm |
TGM-130 | 220V 50Hz | 1500w | 40-65Kg/Hr | 125mm | 40Kg | 650*1200*1550mm |
TGM-200 | 380V 50Hz | 5kw | 80-175Kg/Hr | 200mm | 95Kg | 650*1690*1550mm |
M-18 | 220V 50Hz | 1.5HP | 20-45Kg/Hr | 100mm | 36Kg | 650*2050*1550mm |
F-16 | 220V 50Hz | 2HP | 50-135Kg/Hr | 120mm | 56Kg | 650*2050*1550mm |
Company Introduction
Shanghai Tiangang Machine Manufacture Co., Ltd. integrates design, manufacture, sale and service. We specialize in manufacturing and selling soy bean machinery. Our main products are High speed grinding/separating machines, Commercial soybean Milk Machines, such as soya milk making machines, tofu making machines, dry bean curd machines, Japanese style tofu machines and related equipment.
We can offer soybean soaking & washing, auto exalting, grinding & separating, soymilk cooking & coagulating, forming & U.H.T sterilizing, cooling & packing whole systems.
We have a professional product development team and an after-sales service team. We are able to produce, install and adjust the machines, and can meet the requests of customers.
