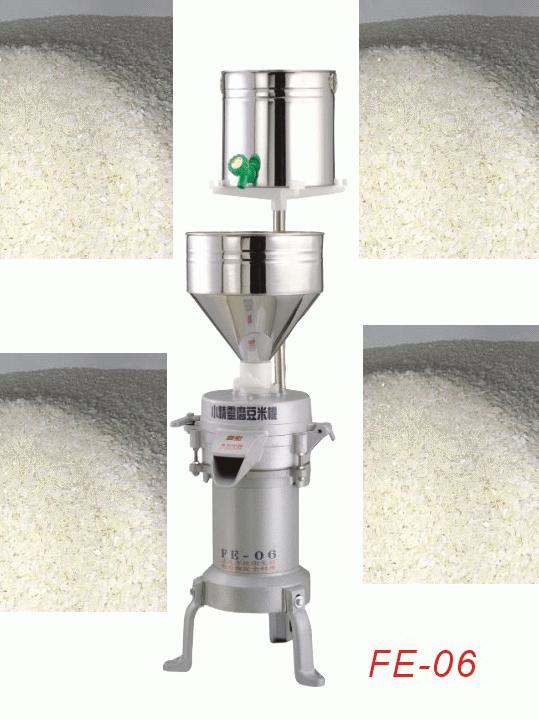

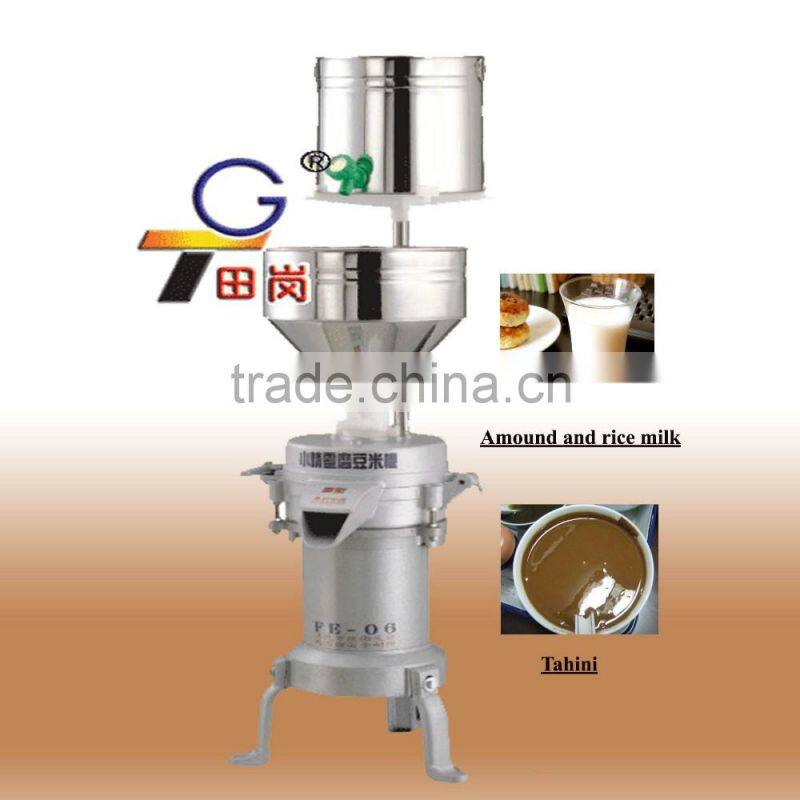

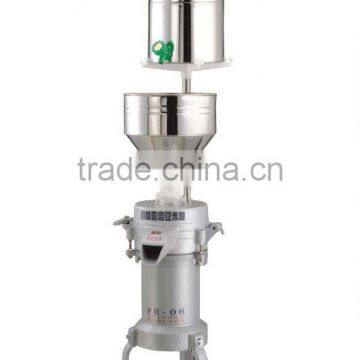

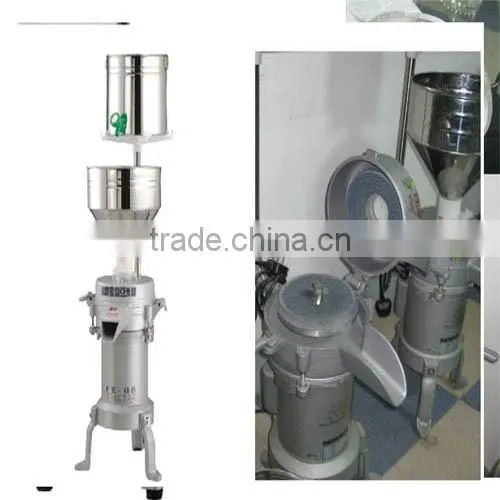

FE-06 high speed grinding machine
Main technical data
Capacity: 30-70kgs/hr,

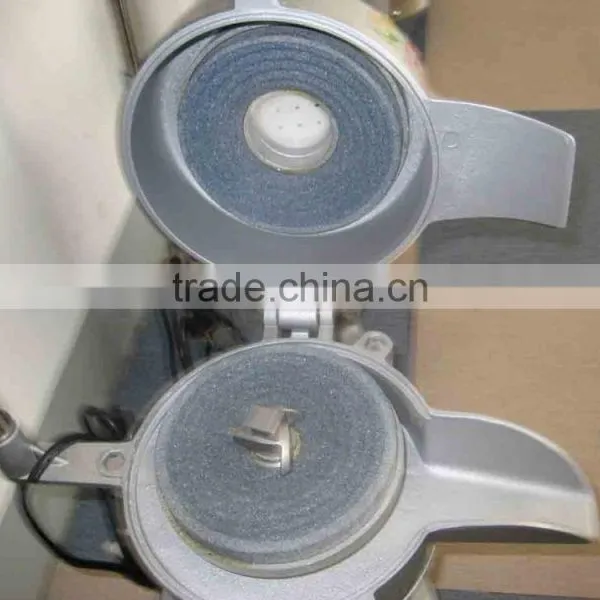

Diameter of the grinding stone :150mm,
Material of the grinding stone: corundum.
Power:750W,
Voltage:220v/50Hz,110v/60hz(Need to customize)
Speed:1720/1430 R.P.M.
Weight:29kgs
Size :531*333*1067mm,
Features:
Interval of grindstones adjustable with stainless steel screws & nuts have three-point
adjustment. Easily adjustable and never rusts even long time use.
Specially designed grindstone angle makes been-grinding fast and rice-grinding fine.
Newly designed motor with more sufficient power.Special water-prooof design with
safety&durability .
Application:
Suitable for making soybean milk, rice paste, chilli paste and the fine grinding of various
beans, rice and other food.
Technical Data |
Voltage |
Motor Power |
Input (According to Materials) |
Diameter of the grinding stone |
Weight |
Size |
FE-05 |
220V 50Hz |
750w |
15-30Kg/Hr |
125mm Corundum |
22Kg |
960*500*1350mm |
FE-06 |
220V 50Hz |
1500w |
40-65Kg/Hr |
150mm Corundum |
40Kg |
650*1200*1550mm |
FP-05 |
380V 50Hz |
5kw |
80-175Kg/Hr |
125mm Corundum |
95Kg |
650*1690*1550mm |
JM-60 |
220V 50Hz |
1.5KW |
0.05-0.5T/Hr |
Conical stainless steel |
45Kg |
300*300*650mm |
JM-80 |
380V 50Hz |
4KW |
0.2-1.5T/Hr |
Conical stainless steel |
95Kg |
450*450*800mm |
JM-120 |
380V 50Hz |
7.5KW |
0.5-2T/Hr |
Conical stainless steel |
150Kg |
550*550*1300mm |
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for
about 15 years .Our products are widely used all over the world . Mainly including grinding machine,commercial soymilk
machine,instant tofu making machine,dried tofu and many other soybean processing machine . Also,we can provide
whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and
separating,cooking,breaking,pressing and sterilization.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are
know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
