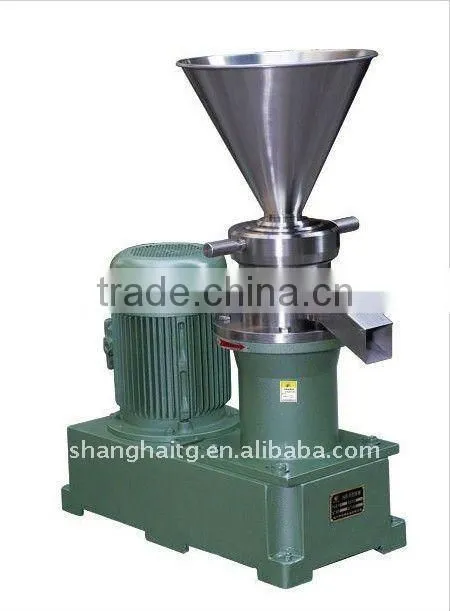

TGM-400 high speed grinding machine
Main technical data
Capacity: beans 400kgs/hr,
Diameter of the grinding stone :300mm,
Material of the grinding stone: corundum.
Power:7.5kW,
Voltage:380v/50Hz,
Weight:450kgs
Size :1200×800×1380mm
Features:
This device of wet grinding equipment which is a novel stainless steel ,used in the food
class materials for wet milling processing of wet grinding., such as rice, soybeans, corn,
etc. Alsi use of some materials in the pharmaceutical, sugar, food and other industries .
After pretreatment of the clean-up, soak the material into the hopper into the mill,
centrifugal force into the relative motion on down dishes because of the mutual impact of
materials, extrusion and sand tray shear the combined effects of the tear etc., so that the
material along the sand tray from the inside to the outside, the plane reached from coarse
to fine grinding purpose.
Technical Data | Voltage | Motor Power | Input (According to Materials) | Diameter of the grinding stone | Weight | Size |
FE-05 | 220V 50Hz | 750w | 15-30Kg/Hr | 125mm Corundum | 22Kg | 960*500*1350mm |
FE-06 | 220V 50Hz | 1500w | 40-65Kg/Hr | 150mm Corundum | 40Kg | 650*1200*1550mm |
FP-05 | 380V 50Hz | 5kw | 80-175Kg/Hr | 125mm Corundum | 95Kg | 650*1690*1550mm |
JM-60 | 220V 50Hz | 1.5KW | 0.05-0.5T/Hr | Conical stainless steel | 45Kg | 300*300*650mm |
JM-80 | 380V 50Hz | 4KW | 0.2-1.5T/Hr | Conical stainless steel | 95Kg | 450*450*800mm |
JM-120 | 380V 50Hz | 7.5KW | 0.5-2T/Hr | Conical stainless steel | 150Kg | 550*550*1300mm |
