2015 GX pump shell with ductile cast iron
- 50 Ton / Tons per Month
- shanghai shaanxi tianjin
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | GuangXing or OEM | Model Number: | QJ150-QJ250(china standard,means minimum well dia.) |
Theory: | Axial Flow Pump | Structure: | Multistage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, electric |
Pressure: | High Pressure | Application: | Submersible |
Product Description
2015 GX pump shell with ductile cast iron

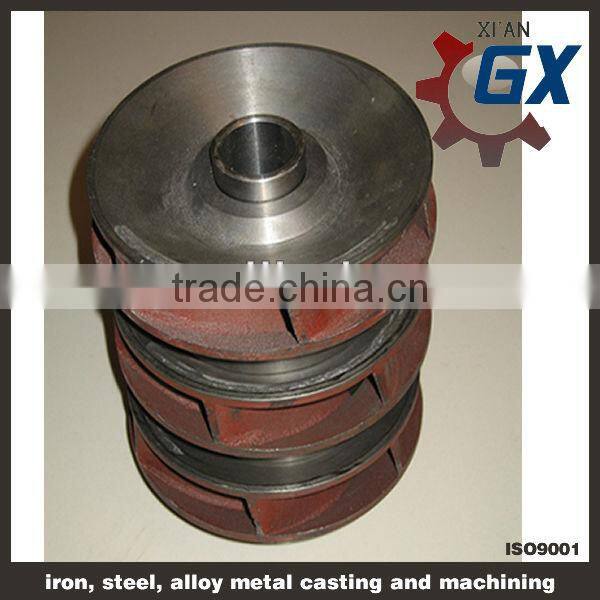

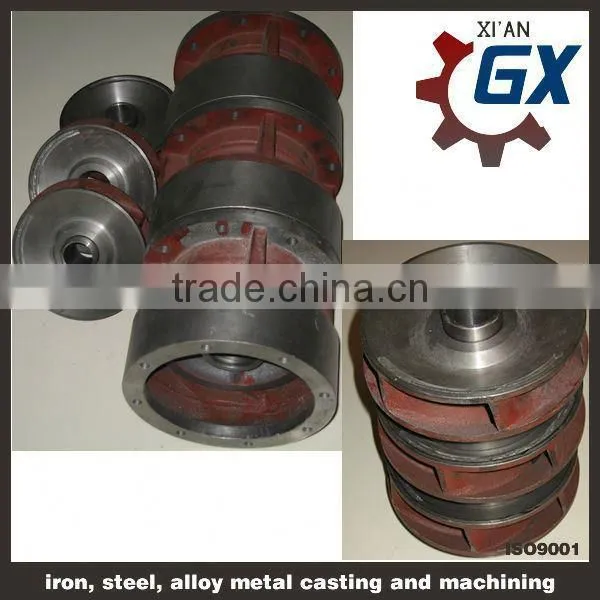

1. Diversion shell
Diversion shell is an important energy conversion device, the hydraulic losses in diversion shell accounts for about 40 to 50% of the pump. The diversion pump collected liquid from the impeller, and transported it to the next stage impeller inlet or pump outlet; convert the pressure function into velocity energy; try to eliminate the liquid pre-swirl in the next one impeller inlet.

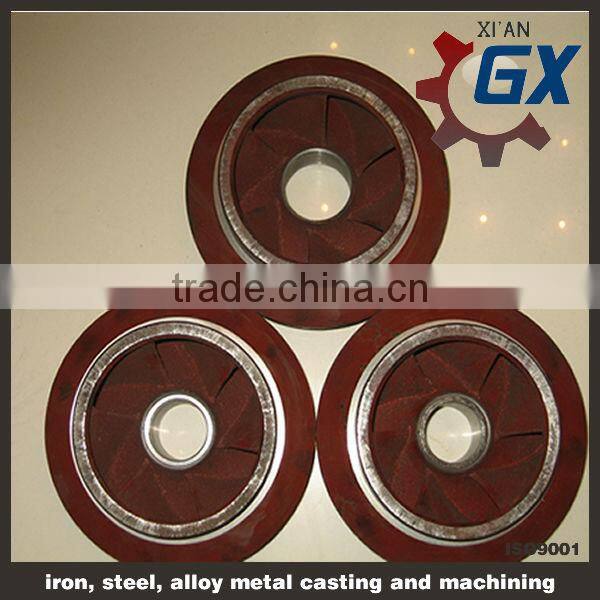

2. Submersible pump impeller
Submersible pump impeller is the main component of the centrifugal pump, which is made of cast iron. The pump impeller blades are playing a major role, the shape and size of the pump impeller and the pump performance are closely related.
Pump impeller can generally be divided into two types: single-suction and double suction,
1). The single suction impeller is unilateral water, most type of low flow pump impeller is for such patterns.
2). Double suction impeller is both absorbent, most high flow pump impellers are double suction impeller.
*******************************************************************
We supply the best products at competitive prices, and bring you the best service available!
1. Our Product:
1.Used for:Various casting and machining products |
2. Material: Iron, carbon steel, stainless steel, alloy steel, high manganese steel, heat resistant steel, copper alloy, aluminum alloy, Hastelloy alloy etc. |
3.Tolerance: 0.001mm after machining |
4. Tooling design and fabrication available |
5.Machining: Turning, Milling, Drilling, Grinding, Welding, Tooling, Broaching, Wire EDM etc. |
6: Surface treatment: Powder coating ,Painting ,Shot blasting, Polishing ,Electrical galvanizing, Chemical galvanizing, Chrome plating , Nickel plating, Passivation etc. |
7. Standard: AISI, ASTM, JIS, BS, DIN, ISO, EN, GB. |
2. Service offer:
Drawing: | We will translate your original drawing; make manufacturing procedure plan, offer professional suggestions on the design if needed. Engineering design software: Solidworks, AutoCAD.PROE DWG .DXF .IGS ,jpg formats are acceptable. |
Quality control: | We have full set of quality control system to guarantee best product quality. Depends on the products, we make different item testing plan, different manufacturing procedure and provide certified lab mechanical testing. We have the chemical analyzing chamber to analyze the component content of the material after entrance to the factory, on melting and after casting to promise the chemical component content. After getting the drawing , we first put into the software anycasting to analyze and build the mold and the feed system. We have UT, RT, MT equipment to test the product, promising the quality of the casting, both internal and surface. Also we can do the strength test for mechanical stress. Any way we can supply our costumer the qualified product, as promised. We have our Q.A. Team to promise the quality and can supply the quality certificate. and also the third part intervention for QC is also acceptable. |
Samples: | If it is only samples available, we can draw the drawings for you. till now we can supply the impeller, the diffuser and the intermedate of sear,calpeda, pedrollo, lowara,KSB pump. |
3. Edges
Edges in Quality | We have years of experience and most of our clients are satisfied with our products. |
Edges in Cost | The price of is reasonable and more competitive. |
4.Overview of our company
Xian Guangxing Mechano-Electronic Co., Ltd.,founded in 2008, is located in Shaanxi. We are a professional enterprise engaged in the manufacture and sale of stainless steel products and castings. We can supply a wide range of products to meet ever-changing market demands. Customized orders are welcomed. We are increasingly expanding our international market share based on quality products, excellent services, reasonable prices and timely delivery.
Please contact us at any time for more information.We will be very glad to receive any of your inquiry, and provide you our best service and products efficiently . , HT250
we supply below products: k type Closed non-clogging 2 or 3 vane impeller D type Open single vane impeller E type Single vane impeller F type Vortex impeller S type Grinder pump shell ASTM A 48 Class 35 B Cast Iron and Wear resistant Chromium White Iron Please click the link below to look for other pump products if this item is not proper for you. http://guangxingjidian.en.china.cn/productgrouplist-220666642/pump_and_pump_parts.html
