Competitive price chip board production line / steam mill
- 2 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- sale AC High speed motor for shaving machine
- wood shaving machine
- 2 ton/hour horse bedding/chicken bedding/animal bedding wood shaving machine for sale
- professional machine to make wood shavings machine shaving wood machine
- Hot selling in Tunisia 1.5t/h wood shaving machine for animal bed
- Wood wool making machine Wood shavings pine wood shavings South Africa
Product Details
Condition: | New | Application: | wood-working | Production Capacity: | automatic |
Place of Origin: | Shandong, China | Brand Name: | SG-Machinery | Model Number: | SG-PL100 |
Voltage: | 220/380V | Power(W): | 200KW | Certification: | ISO 9001 |
Warranty: | 2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Chip Board Production Line1.Full automatic
2.durable and economic
3.labor-saving
4.certificate: CE/ISO 9001

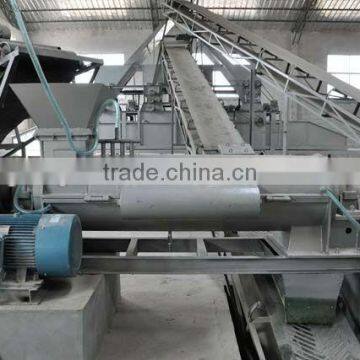

PICRURES OF CHIP BOARD PRODUCTION LINE
Competitive Price Chip Board Production Line
Particle board is made from small-diameter wood, branches, wood residues and non-wood agricultural residues via Chip preparation, drying, spreading and hot press section. Finished boards can be used for furniture, building, packing, vehicle and decoration and lamination.
1. Chip preparation section
Raw material is reduced into qualified chips by the drum chipper, then the chips are transported to the chip bin, and then feed to the knife-ring flaker by which the chips are turned to flakes, then the flake stored in wet flake bin.
2. Drying and sifting section
The flakes discharged from the wet flake bin are conveyed to the rotary dryer. Qualified core flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing, and transported to surface flake bin.
3. Glue regulating and applying section
After scaled, the core and surface flakes are to be effectively and uniformly mixed with qualified glue independently in their glue mixers respectively.
4. Forming and hot-pressing section
The surface and core flakes are sent into classi-forming machine, and forming on the mat conveyor uniformly. After processes of metal remover, pre-press, lengthwise saw, cross saw, accelerate conveyor, scaling conveyor, storing conveyor and loading conveyor, mats are transported to carrier and then to hot press. Rough boards after pressing are pushed to unloader via pallet.
5.Cooling and sizing section
The rough board is conveyed to star-cooler for cooling, then the rough board goes through side trimming saw and become a qualified particle-board, stacked on the hydraulic lift.
6. Sanding Section
The board are sanded, checked and stored .
PLC control is used in mat-forming section
Detailed Product Description
1. Particle board production line
2. board size:4*8'
3. thickness:8-25mm
4. annual capacity:20000-120000CBM
5. PLC control
