AC-DC power converter 24V AC power supply module 24V turn 12V2A camera becomes 12V1.5A DC

Product Name: AC-DC power converter 24V AC power supply module 24V turn 12V2A camera becomes 12V1.5A DC
Product Type: KREE-AC24-DC12-36W
Color classification:
Product details:
Input voltage: AC: 24V (wide voltage 16V-28V) or DC (wide voltage 16V-40V)
 Output Voltage: DC: 12V
 Output Current: 2A peak current MAX: 3A Output Power: 24W
 Efficient conversion rate: more than 96% Ripple: 80MV
 Working temperature: -40 ℃ ~ + 85 ℃

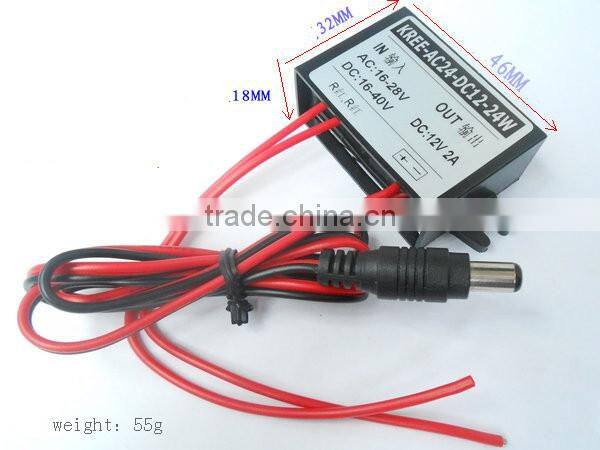

 Volume Specifications: 46 * 32 * 18MM (L * W * H)
 Weight: 0.055KG / a

 Baby details:

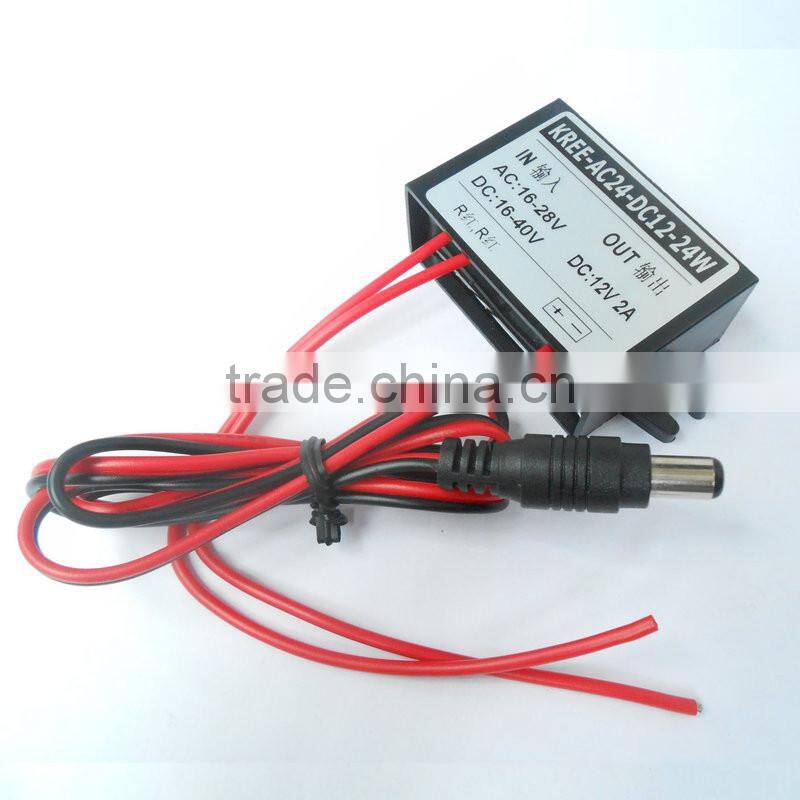

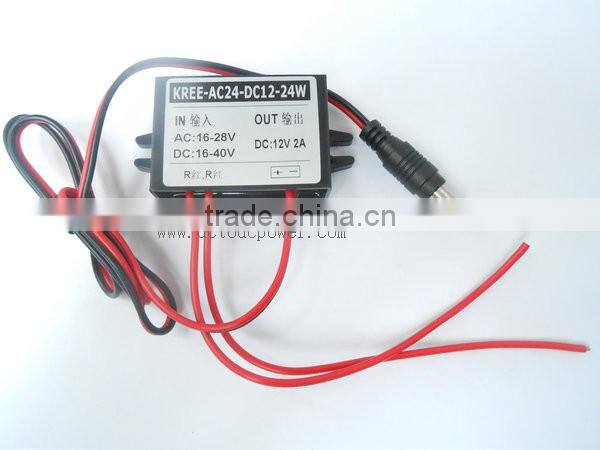

1  first you have to remember, this is a (AC or DC input may be) of the power conversion module (input, regardless of polarity), so the inputs are two red lines.

2  Output: DC head inside positive outside negative. Outer 5.5mm, the inner core 2.1mm, 20  red, black and copper wire, wire length 60CM (include DC head) pro Note contrast.

3  the input AC: between the voltage range AC16V-28V. DC input: between the voltage range DC16V-40V, can be accurately output 12V. Voltage stability.

4  section baby can work long 2A peak 3A, which means you can load device 30W or less long-term stability without adding any heat sink. Performance is very stable, full power enough.

5   all components are imported, synchronous rectification, the plastic casing, waterproof, shock, moisture and dust.

6  Enter the high-voltage transient protection, output overcurrent protection, output short circuit protection, chip overheating protection.

7  Applications (Common Application): Surveillance cameras (CCD Camera); monitoring equipment (CCTV System); router (Gateway); any other applications to 12V electronic equipment, etc
