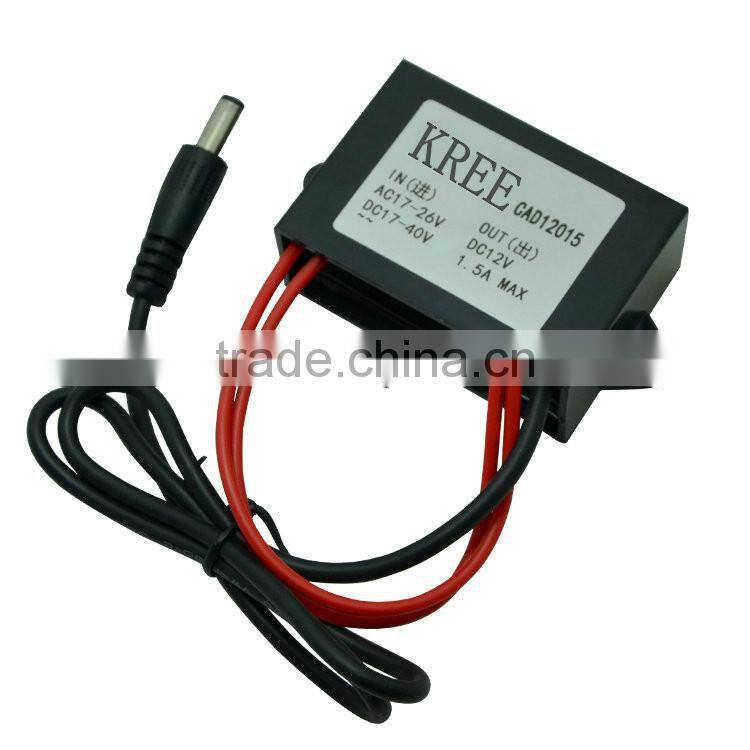

AC24V DC12V1.5A turn the camera power adapter AC to DC transformer modules Security Monitor

Product Name: AC24V DC12V1.5A turn the camera power adapter AC to DC transformer modules Security Monitor
Product Type:
Color classification:
Product details:
Input Voltage (Input Voltage): 17-26VAC AC input or DC17-40V

Regardless of the positive and negative input

Output voltage (Output Voltage): 12V DC DC

Output Interface: outer 5.5mm, 2.1mm inner core

Output Polarity: positive with

Output Current (Output Current): 1.5A continuous sustained, long enough to work 1A

Total Power (Total Power): 12 Watt Watt

The output ripple (Output Noise): <= 100mV

Efficiency (Efficiency Rate):> = 85%

Operating ambient temperature (Environment Operation temperature): -20-60 degrees Celsius (Culsius degree)

The average working life (MTBF):> 20000  (Hour)

Protection (Protection function):

1. Output short circuit protection (Short circuit protect);

2. Output overcurrent protection (Over current protect);

3. Output overload protection (Over load protect)

Volume: L58 * W40 * H22MM weighs about: 100G

Applications (Common Application): Surveillance cameras (CCD Camera); monitoring equipment (CCTV System); router (Gateway); any other applications to 12V electronic equipment, etc.
