36V 24V converter 48V turn 24V1.5A 36V48V 24V buck converter power module

Product Name: 36V 24V converter 48V turn turn turn 24V1.5A 36V48V 24V buck converter power module

Keywords: 48V step-down power module turn 24V1.5A

Product Type: KREE-3648-24-36W

Color classification:

Product Details: Power Supply Model: KREE-3648-24-36W

Parameters Table
Input voltage: (DC30V-58V between)
Output voltage: DC24V
Output Current: 1.5A
Output Power: 36W
Conversion efficiency: up to 96% of the output ripple: 50mV (MAX)
Operating temperature: Industrial grade (-40 ℃ to + 85 ℃)

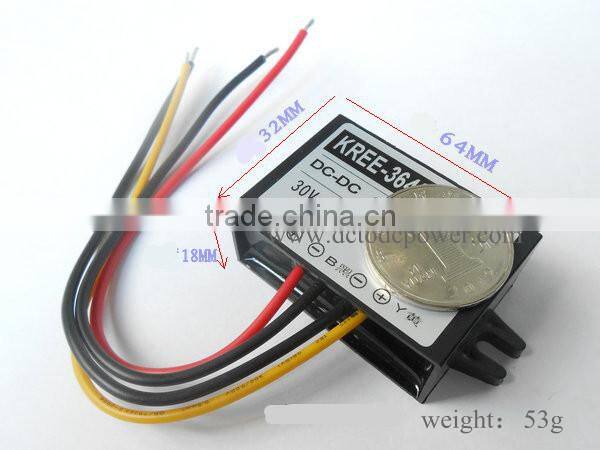

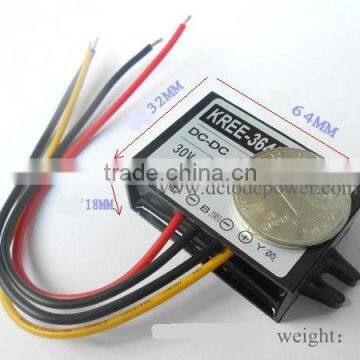

Volume: 46 * 32 * 18mm
Weight: 53 g

Features

1. Imported integrated switching regulator module manufacturing.

2. synchronous rectification, the conversion rate of 96% or more, very low heat.

3. over-voltage, over-current, over-temperature, short circuit protection automatic braking function, and work after recovery conditions.

4. epoxy potting, waterproof, shock, moisture and dust.

5. The line length is about 15CM, slim, small size, easy installation.

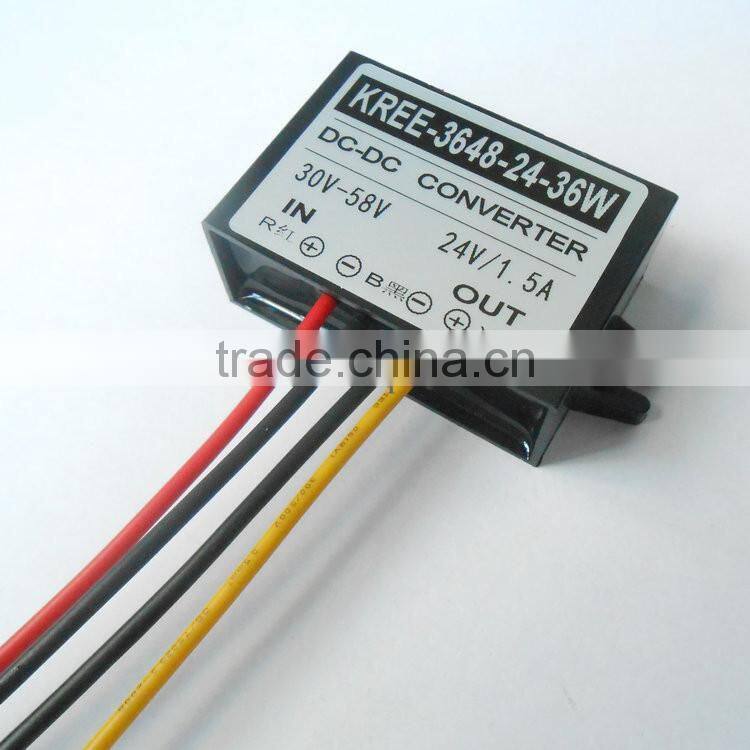

6. Connection: Enter the red (+) black line (-), the output of the yellow line (+) black (-).

7. Scope: bus, CMB, large trucks, motor car, solar power, bus display, taxi advertising screen, absolute taxi radio without interference, car audio, LCD TVs, LED, intercom and monitoring systems .

Note:
1. Please strictly follow the characters wiring, otherwise it may damage the power supply module, the output voltage polarity is reversed may damage electrical equipment.
2. To ensure that the module can output enough voltage and power, make sure there is adequate input supply voltage and power.
3. Please average output of more output with load line, please hasty merger with load.
4. It should be noted the maximum current output value reached thermal power module (module to give the best to leave some of the current margin, which last longer, do not use the maximum possible)
