12v24v Turn 6V5V3.3V4.2V3.7V7.5V9VDC-DC Buck Converter 5A Automotive Power Module

Product Name: 12v24v turn 6V5V3.3V4.2V3.7V7.5V9VDC-DC buck converter 5A automotive power module

Keywords: DC-DC buck converter car power

Product Type: KREE-12-5-25W

Color Classification: 3.7V5A 7.5V5A 9V5A 3.3V5A

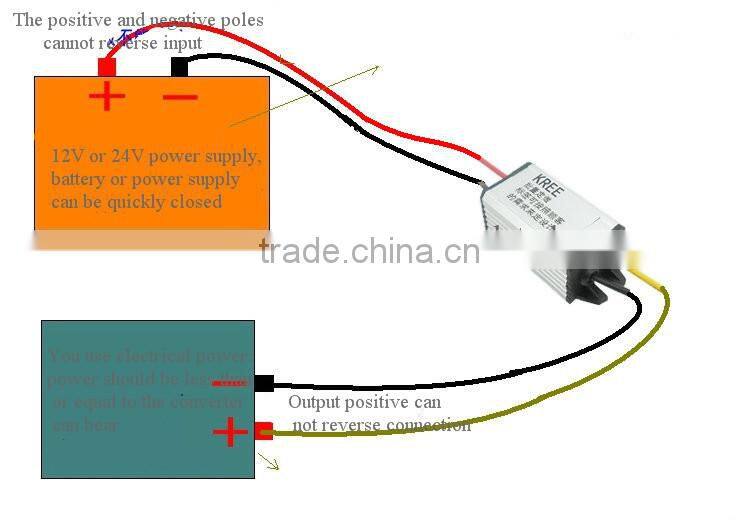

Product details: 1 input voltage: The output voltage is higher than 3V-40V, Special Note: buck power supply, input voltage must be higher than the output voltage, the lowest dropout 3V, such as you choose the 5V output, the input is 8-40V the range is the range you selected is 9-40V of 6V

2. Output voltage: 3.3V 3.7V 4.2V 5V 6V 7.5V 9V and other optional pro what voltage output; selected above relative voltage photographed it. Note that each power supply can only turn a kind of voltage, not adjustable.

3. Output Current: 5A MAX, 5V 4A below what is recommended long-term use, greater than 5V to 9V 3.5A recommend following long term use, of course, but also according to the ambient temperature, use conditions, and let the power left margin, low fever, is to ensure the long-term stability of

4. Working temperature: -20-65 -40-80 limit

5. Frequency: 240HZ

6, the volume size: 45 * 25 * 20MM L * W * H

7, by weight, about 40G

8, filling plastic packaging, waterproof, moisture, dust, shock, more suitable environment

9. protection, output short circuit, output over-current, over-temperature protection comes
