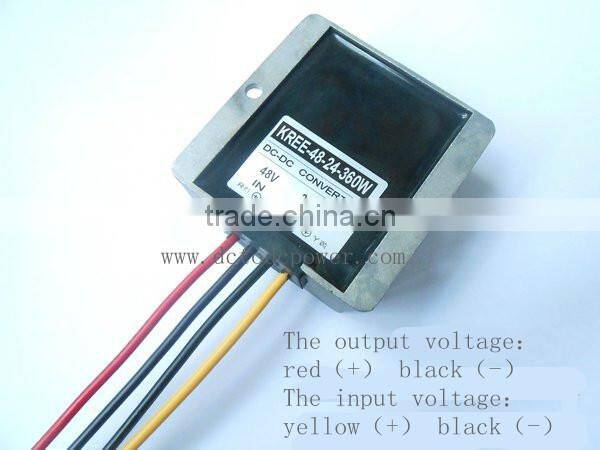

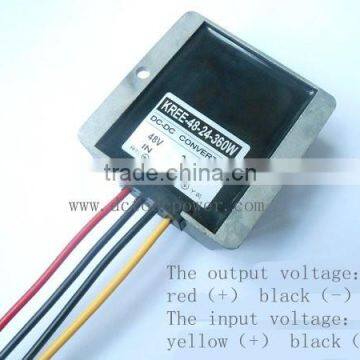

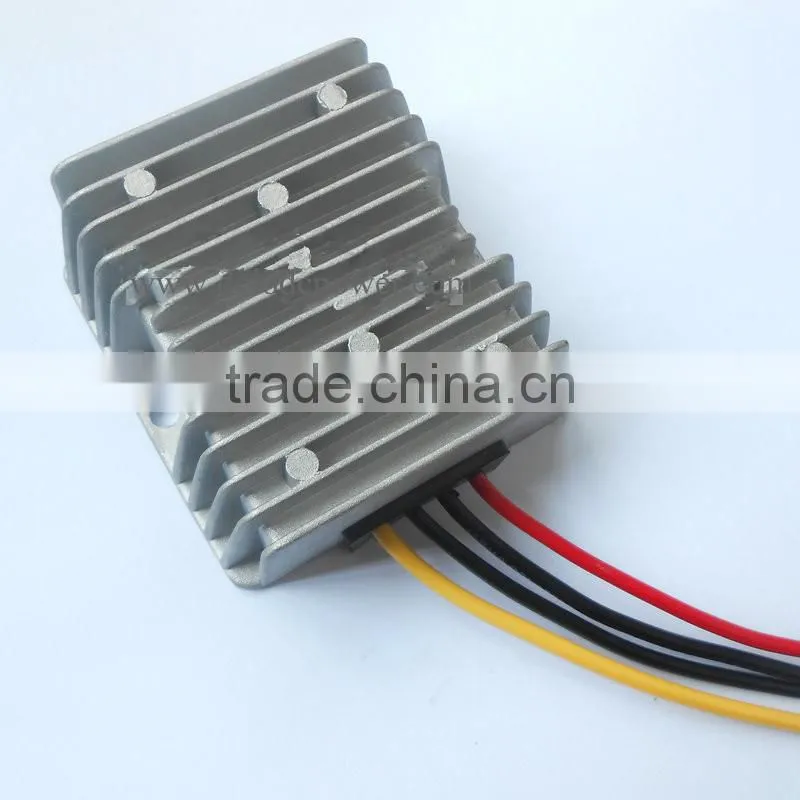

48V 24V Converter Turn Turn 24V12A 15A 360W 48V Step-down DC-DC Power Module Synchronous Rectification

Product Name: 48V 24V converter turn turn 24V12A 15A 360W 48V step-down DC-DC power module synchronous rectification

Keywords: 48V turn 24V12A 15A 360W DC-DC step-down power module synchronous rectification

Product Type: KREE-48V-24V360W

Color classification:

Product Details: Power Supply Model: KREE-48V-24V360W

Parameters Table
Input voltage: DC48V (wide voltage 36V-60V)
Output voltage: DC: 24V
Output Current: 15A
Output Power: 360W
Conversion rate: more than 90% Ripple: 100MV
Working temperature: -40 ℃ ~ + 85 ℃

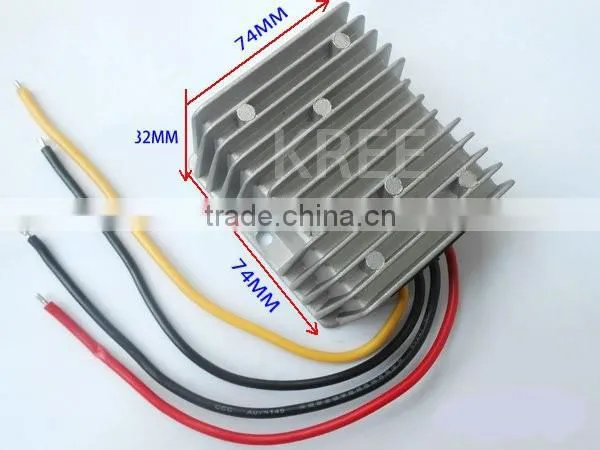

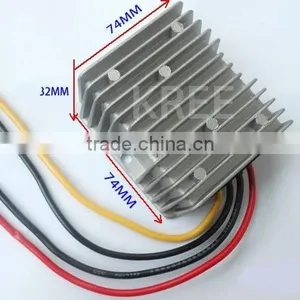

Volume Specifications: 74 * 74 * 32MM (L * W * H)
Weight: 0.3KG / a

Baby details:

1, any one of a voltage between 36V-60V wide voltage input can be accurately output 24V, voltage stability.

2, section baby peak 15A, 12A recommend the following long-term work, lower heat power and longer life.

3, all the components are imported, synchronous rectification, aluminum alloy shell, waterproof, shock, moisture and dust.

4, output overcurrent protection, output short circuit protection, chip overheating protection.

5, for a voltage range of appliances: electric motors, audio, navigation, surveillance, LED car display, air conditioning, fans, solar energy, photovoltaic energy, DVD, LED lights, motors, pumps, electrical appliances and industrial equipment, and so on.

Note Note:

1, this section without the reverse power protection, the positive and negative input and output lines can not be reversed, please parents who must pay attention to.

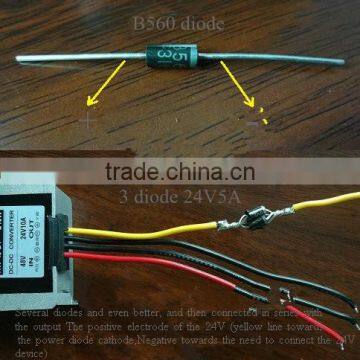

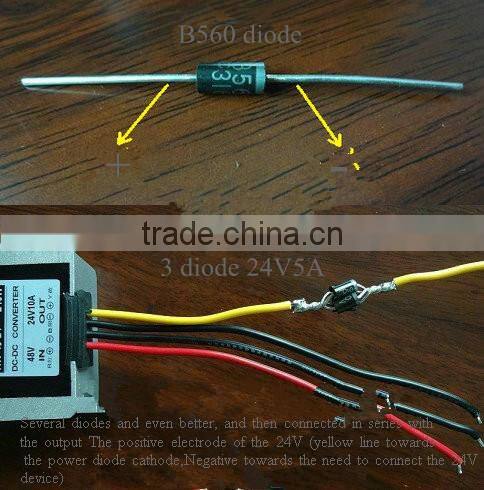

2. If used (to the battery, motor, motor) in these three areas, it must be added to the positive power diode 24V output, so relatively safe, to prevent excessive current playing back to power, if not used in this three aspects do not need added. Plus diode follows:

This is necessary when the power load 12A diode string of five

B560 diodes themselves can go to the market to buy,

You can also purchase one yuan / month with my company.

3, many customers are concerned with 5A, 5A power can not be used in the following equipment will burn it?

A: No, because this power is our constant output current is adaptive output, the converter is based on your equipment to the output current demand, as long as your device can be used in the following 5A, 5A on the line does not exceed . Even if your device is also the same as the normal use of 0.5A contrary, the current needs of the smaller your device, and then you choose bigger power supply actually more secure. Such power has margin, no heat, more secure, more reliable! I hope reassure parents to buy!

4, water supply, normal use, preservation six months.
