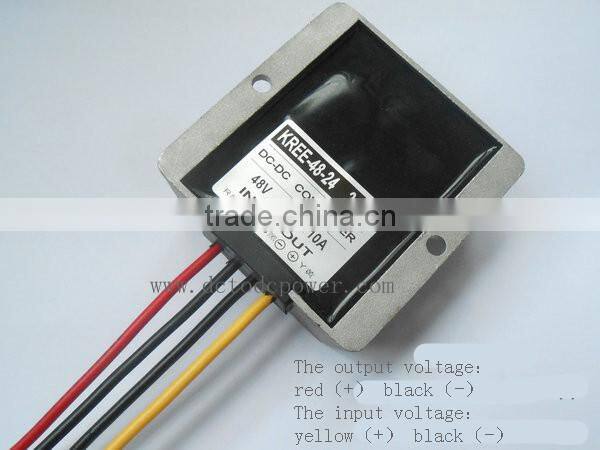

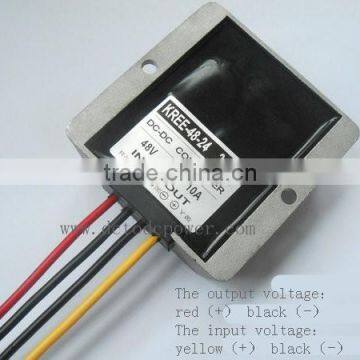

synchronous rectification DC-DC48V 24V switch turn 24V10A240W buck converter 48V DC power supply

Product Name: synchronous rectification DC-DC48V 24V switch turn 24V10A240W buck converter 48V DC power supply module

Keywords: synchronous rectification DC-DC48V 24V converter switch

Product Type: KREE-48-24-240W

Color classification:

Product Details: Power Supply Model: KREE-48V-24V240W

Parameters Table
Input voltage: DC48V (wide voltage 37V-60V)
Output voltage: DC: 24V
Output Current: 10A
Output Power: 240W
Conversion rate: more than 90% Ripple: 100MV
Working temperature: -40 ℃ ~ + 85 ℃
Volume Specifications: 74 * 74 * 32MM (L * W * H)
Weight: 0.3KG / a

Baby details:

1, any one of a voltage between 37V-60V wide voltage input can be accurately output 24V, voltage stability.

2, section 10A baby can work long-term, peak 20A, which means you can load equipment 240W or less long-term stability without adding any heat sink. Performance is very stable, full power enough.

3, all the components are imported, synchronous rectification, aluminum alloy shell, waterproof, shock, moisture and dust.

4. Enter the high-voltage transient protection, output overcurrent protection, output short circuit protection, chip overheating protection.

5, for a voltage range of appliances: electric motors, audio, navigation, surveillance, LED car display, air conditioning, fans, solar energy, photovoltaic energy, DVD, LED lights, motors, pumps, electrical appliances and industrial equipment, and so on.

Note Note:

1, this section without the reverse power protection, the positive and negative input and output lines can not be reversed, please parents who must pay attention to.

2. If used (to the battery, motor, motor) in these three areas, it must be added to the positive power diode 24V output, so relatively safe, to prevent excessive current playing back to power, if not used in this three aspects do not need added.

B560 diodes themselves can go to the market to buy,

You can also purchase one yuan / month with my company.

3, many customers are concerned with 5A, 5A power can not be used in the following equipment will burn it?

A: No, because this power is our constant output current is adaptive output, the converter is based on your equipment to the output current demand, as long as your device can be used in the following 5A, 5A on the line does not exceed . Even if your device is also the same as the normal use of 0.5A contrary, the current needs of the smaller your device, and then you choose bigger power supply actually more secure. Such power has margin, no heat, more secure, more reliable! I hope reassure parents to buy!

4, water supply, normal use, preservation six months.
