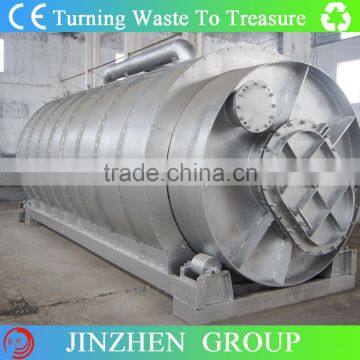

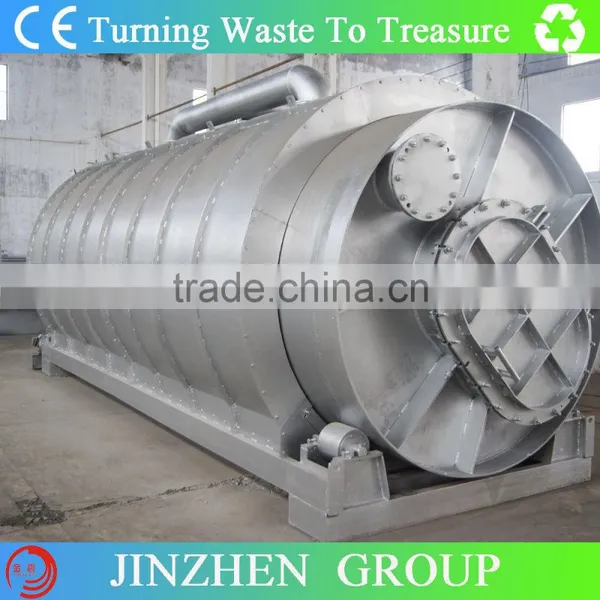

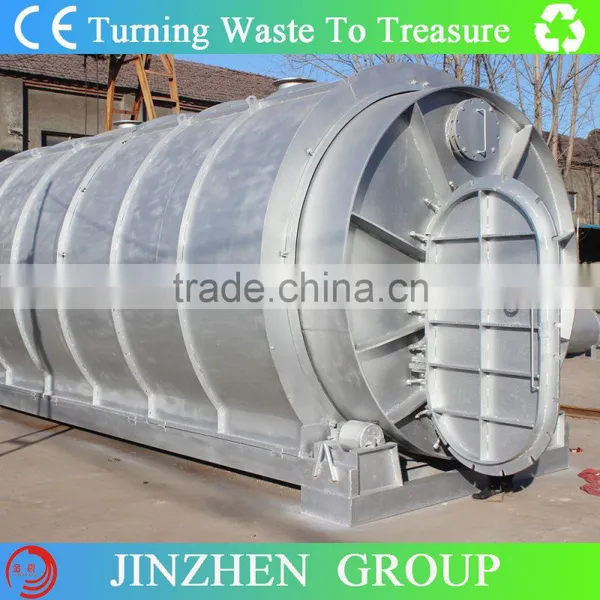

Help CenterScrap Tires Pyrolysis/Recycling Machine Also Process Plastic Waste to Crude Oil
Related Products
-
Used Plastic Used to Oil With Automatic Slagging SystemUS$ 20,000 - 48,000MOQ: 1 Set -
Hot Sale Low Cost High Quality Pyrolysis Plastic to Oil and Carbon Black MachineUS$ 20,000 - 48,000MOQ: 1 Set
-
Essential Oil Retreading Equipment for Recycling Waste Rubber to Crude OilUS$ 20,000 - 48,000MOQ: 1 Set
-
China Grain Linear Vibrating Screen for Sieving Various GrainsUS$ 1,500 - 10,000MOQ: 1 Set
-
After-sales Service Good Linear Vibrating SieveUS$ 1,500 - 10,000MOQ: 1 Set
FUEL OIL (40% to 45%)
items | diesel(afterdistillation) | Mixed oil,pyrolysis oil | GB 0# diesel |
Oxidation stability | 2.0 | 1.5 | 2.5 |
volume % | 0.005 | 0.005 | 0.05 |
steam residual carbon residue % | 0.25 | 0.25 | 0.3 |
ashes% | 0.008 | 0.1 | 0.01 |
copper corrosion/level | 1.1 | 1.1 | 1 |
water % | traces | 1 | traces |
mechanical impurities | no | no | no |
density | 0.85 | 0.88 | 0.83-0.87 |
Freezing point /℃ | -10 | -5 | 0 |
Flash point(closed)/℃ | 45 | 40 | 55 |
Kinematic viscosity | 2.5 | 5.0 | 3.0-8.0 |
combustion value | 9500 | 10000 | 8500 |
color | 1.2 | 4.5 | ≤3.5 |
Cetane number | 43 | 38 | 46 |
CARBON BLACK (30% t0 35%) (depending on the type of tyres)
Properties | Analysis Method | Rubber powdered carbon | Carbon black grades in US | ||
HAF(N330) | SRF(N754) | MT(N908) | |||
Iodine Adsorption Number, mg/g | ASTM D-1510 | 176 | 82 | 24 |
|
DBP Absorption, cm3/100g | ASTM D-2414 | 78 | 92-102 | 50-65 | 26-44 |
CTAB Surface Area, m2 /g | ASTM D-3765 | 68 | 74-90 | 23-39 |
|
pH - Value | ASTM D-1512 | 9 | 7-9 | 7-10 |
|
Heating Loss, % max | ASTM D-1509 | 1.5 | 2.5 | 1.5 | 1.5 |
Ash Content, % max | ASTM D-1506 | 10 | 0.5 | 0.5 | 0.5 |
Average Particle Size, nm | MICROSCOPE | 300 mesh |
|
|
|
- 1. lt has higher calorific value as compared to natural gas.
- 2. It can be replaced where natural gas and propane are stored.
- 3. The high energy gas may be utilized as a source of energy for the Pyrolysis process.
- 4. The amount of gas generated in the system is 12% to 15% of the total amount of recycled tyres and considering the 10 ton scrap tyre/day recycling capacity, the facility generates 1200 -1500 m3/day gas, which has an enormous energy potential when evaluated.
Raw Material | Oil Output | |
Weaves & Handbags | ≈60% | |
Soles | Sports shoes soles | 27%-33% |
Black rubber soles | ≈35% | |
Gum-rubber outsole | ≈45% | |
Tyre | Steel tyre | 40%-45% |
Nylon tyre | ≈40% | |
Tyres of bikes etc. | ≈35% | |
Paper Mixture | Rough material | ≈15% |
Washing Material | 23%-26% | |
PE material | 70% | |
Cabin Skin | PE cable skin | ≈85% |
PVC cable skin | ≈25% | |
Pure rubber cable skin | ≈35% | |
Telephone line | ≈50% | |
Life garbage | Pure (plastic bags) | ≈50% |
Wet Mixture | ≈15% | |
Others | Usual rubber tubes | ≈30% |
Car glass bead | ≈50% | |
Beverage Bottle Cap | ≈50% | |
Beverage Bottle | ≈30% | |
Making process
ship packing
2200*5000mm |
Two 40HQ containers |
2200*6600mm | |
2600*6000mm |
One 40FR open container and one 40HQ container |
2600*6600mm | |
2800*6000mm | |
2800*6600mm |
running time
L: 3m~8m
V: 5.6m3~ 80m3
*250~300kg/m3 for the whole tires
*350~400kg/m3 for extruding tires
*500~600kg/m3 for pieces tires
more information will show before your eyes, if you click Eileen yang ^-^
