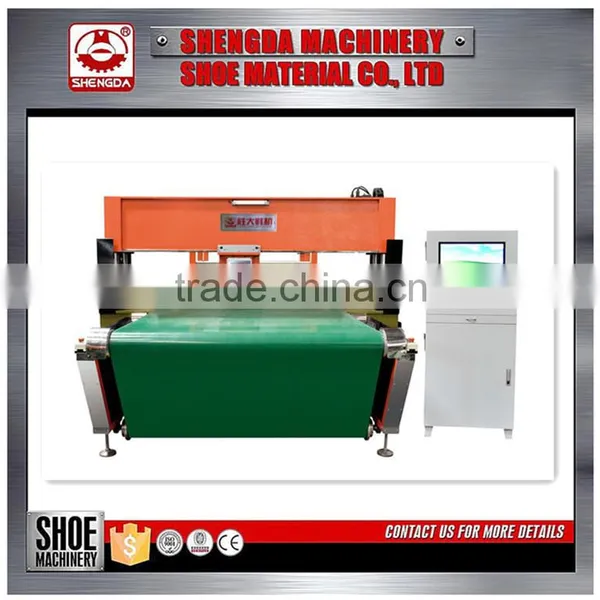

SHENGDA SD-9898 40T Computer Control Leather die Press Cutting Machine Leather Production Cutting Machine
1. This machine is suitable for large factory using the molding cutting die on carpet, leather, rubber, cloth etc. non metal materials.
2. Conveying part adopt conputer control, the serve motor drive material to input from one side, and output from the other side after die cutting, Feeding accuracy is ensured, and operation is stable. The conveying length can be conveniently adjusted through touch screen,
3. The host machine adopts the four-column guiding, double crank balance and hydraulic drive to guarantee the cutting die speed and precision of the machine. All the sliding connection parts adopt the central oil supply automatic lubricating device, the wear to a minimum.
4. The input and output of material is conveyed on the conveying belt, and the die cutting operation of materials is also done automatically on the conveying belt.
5. Machine adopts roulette corrective devices to ensure the precision of conveying belt running position.
6. Machine cutting area is equipped with safety light curtain on feeding and discharging area to ensured operator safety.
7. The fix of cutting die adopts pneumatic clamping device or pressing head rotating device, and replace cutting die more quick.
8. Special specifications can be customized.
|
|
|
| |
