Lengthways veneer slicer HB25T
Machine body
1. Made of cast iron, ensuring work stability
2. Chromed columns, preventing wearing off
3. Well ground guideway , guaranteeing high performance
4.Electric braking systerm independent developed by our engineers,very efficient and reliable
5.Roll feeding style, getting wood moved easily
Key parts
1. Swiss ABB motor or German Siemens motor that meets European latest criteria EFF2, saving power by 13%, enjoying small heating and long life span.
2. Japan-made professional slicing knife, ensuring good quality veneers.
3. Japan-made OMRON sensor to keep reliable performance.
4. AUTONICS encoder imported from South-Korea.

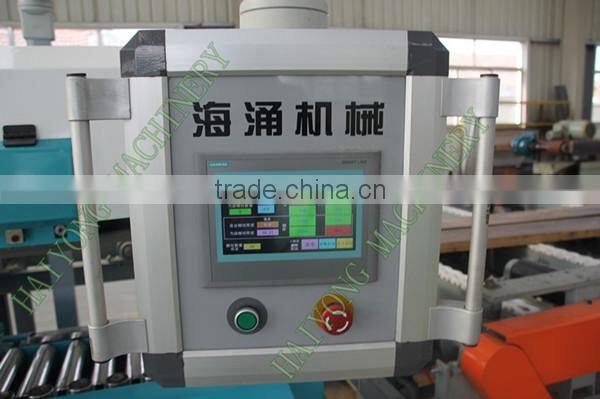

5. Selection of Siemens man-machine interface, convenient operation control.
6. Electric braking system independent developed by our engineers, very efficient and reliable
7. French Schneider electric components
8. Italy-made professional feeding belt.
Performance:
1. Veneer output can be indicated by a counter
2. Automatic feeding speed can be adjusted by PLC
3. Veneer thickness can be from 0.5mm to 8mm according to wood harness
4. Veneer thickness error falls in ±0.05mm
5.About 25pcs of veneers per minute(based on 2-meter wood and aotomatic cycle feeding system)
Technical specifications:
Name/ model | HB 20V | HB 25T | HB 35T |
Max cut width | 200mm | 250mm | 350mm |
Max cut thickness | 200mm | 250mm | 350mm |
Feeding speed | 58m/min | 58m/min | 60m/min |
Total power | 12kw | 19.6kw | 33.75kw |
Overall dimension | 2420*1350*2000mm | 3360*1630*2000mm | 4600*2000*2000mm |
N.W. | 4000kg | 8500kg | 15000kg |
Veneer Processing Flow Chart :
square timber---softening---slicing into veneer---veneer cleaning---veneer drying---veneer clipping---packing

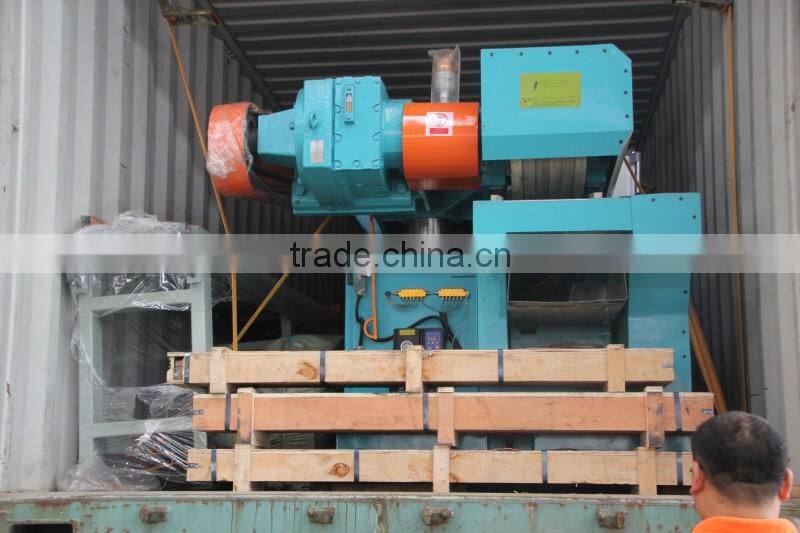

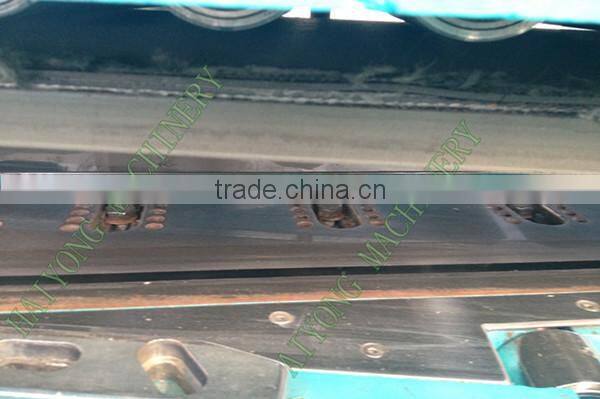

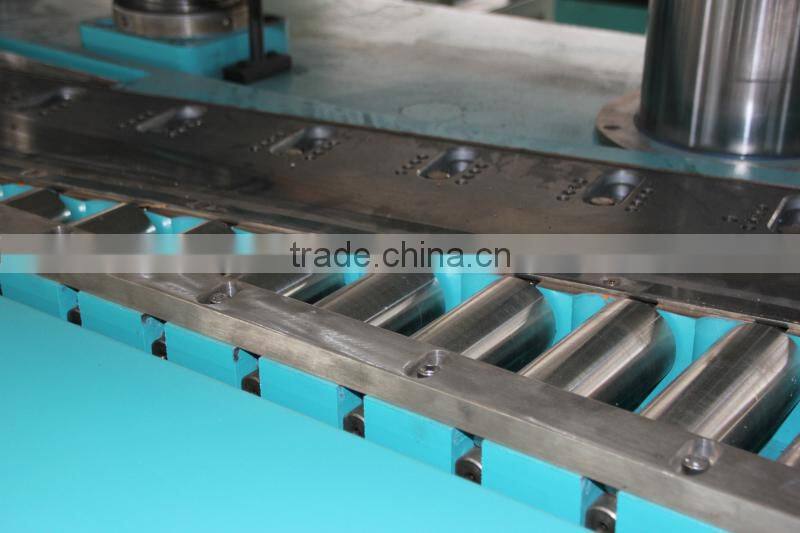

Product show:

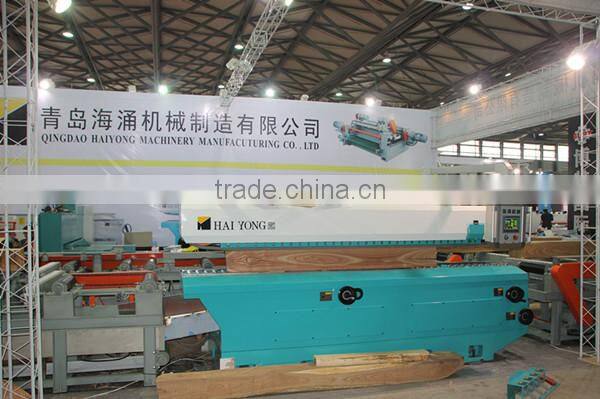

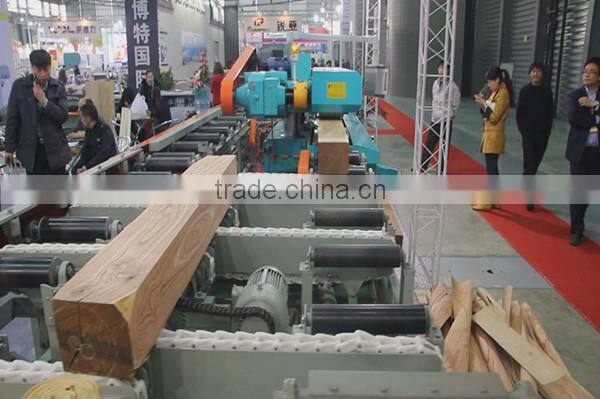

Exhibition:
Kindly tell me the following questions in your email:
1-- what is the size of the veneer, the length, width and height.
2--what is the quantity of the veneer you want to cut every day.
