lengthway veneer slicer HB 35T

 function of the machine

1. the machine is designed to cut the timber into small veneer. you can adjust the machine as you requirment to control the thickness of the veneer. the veneer produced by the machine can use in many field such as door making ,floor board surface decorate and room decoration ect.

advantage of the machine

1. the machine has a very long life span and good quality. that means that you cann use the machine for a long time without any issues.

2. this machine is easy to operate,for we choose the Simens operating panel.

3. this machine is convinent to maintain and repair (even it hardly to meet this situation,for our good quality). all the assimble unit is the standard parts and accesories which we make depond on our drawings.what need you to do is just changing the spare part .

key parts of the machine

we choose many imported units which are very famous in the world to increase the performance and sevice life of the machine.

1. Swiss ABB motor or German Simens motor that you can choose to use which one and both meet European latestcritaria EFF2. the motor can save power by 13% .genarate small heating  and have long life span.

2. the slicing knife is manufactured by Japan,cut the veneer with high precision and the knife has a long life span.

3. Japan -made OMROM sensor to keep reliale performance.

4. south-korea AUTONICS encoder

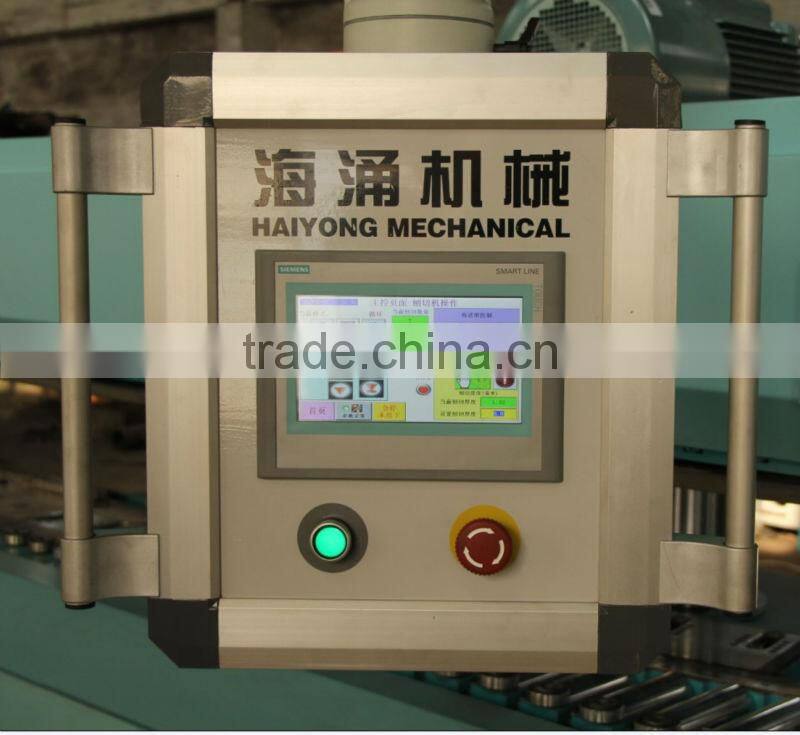

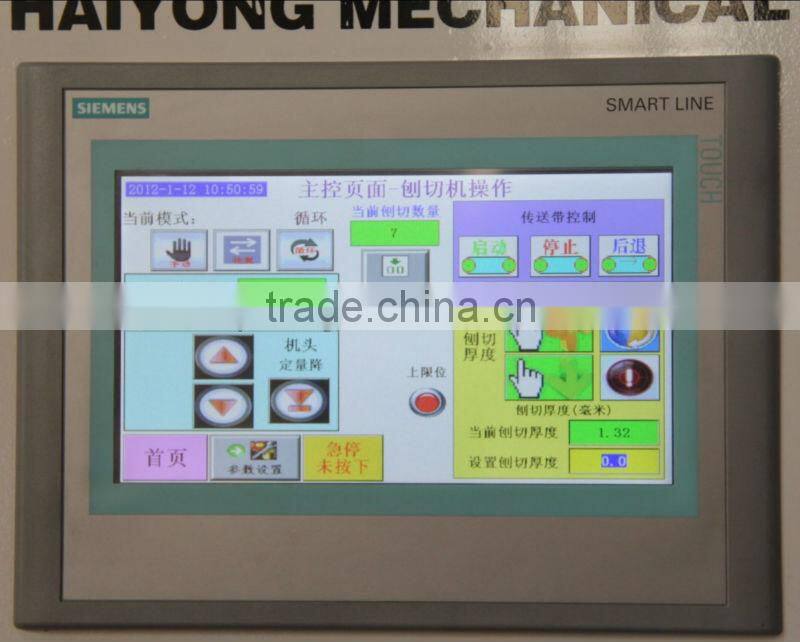

5. selection of siemens man-machine panel ,convenient operation control

6. electric braking system indepedent developed by our engineers,very efficient and reliable.

7. French Shineider electric components

8. Italy-made professional feeding belt.

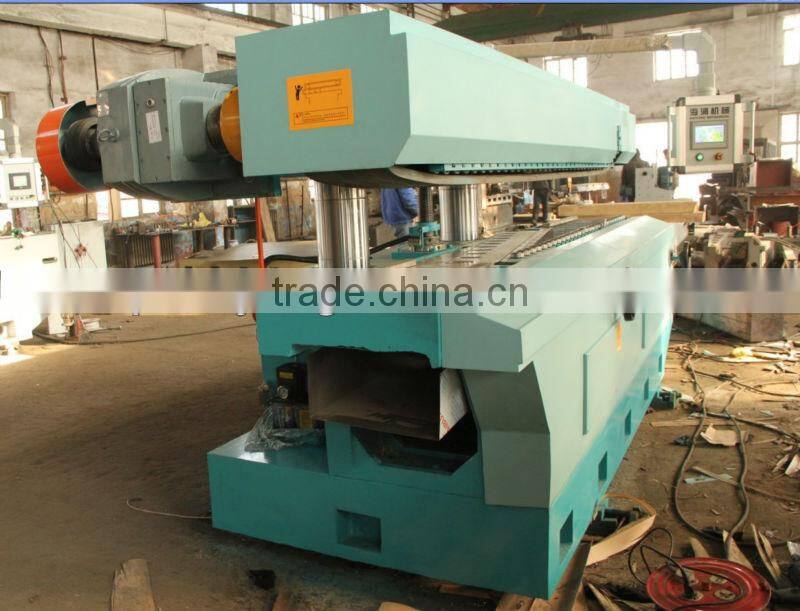

machine body of our machine

1. made of cast iron,ensuring work stability.

2. chromed columns,preventing wearing off

3. well ground guideway,guarenteeing high performance

4. Roll feeding style, get small friction and ensure the life of conveyor belt.

Performance of our machine

1. About 25 pcs of veneers per minute (based on 2 meter wood and cycle feeding system)

2. Cutting thickness shown in number, it can be as accurate as 0.01mm

3. Working table lifting controlled manually and automatically.

4. Equipped with wireless foot switch

5. Veneer output can be indicated by a counter

6. Automatic feeding speed can be adjusted by PLC

7. Veneer thickness can be from 0.5mm to 8mm according to wood harness

8. Veneer thickness error falls in ±0.05mm

Technical specifications

if you want to see vedio about our machine , please visit our website: /watch?v=PGVJ2c4DfeM&feature=plcp
