Specifications
Wood Clipper1.Using the transmission gear
2.Simple operation and high efficiency
3.Cast iron with good stability
Wood Clipper
1.Application:
Thin wood shearing machine series adopts worldwide advanced technology and is manufactured with fine process and can be used in the superimposition processing of the thin wood, sheet paper, etc. and is a necessary equipment for the manufactures of three-ply board, multiplayer board, dense board, lumbercore plywood and the furniture.
2.Technical specifcation:
Model |
BJ2209 |
BJ2210 |
BJ2213 |
Max cutting length |
920mm |
1000mm |
1350mm |
Max cutting thickness |
60mm |
60mm |
60mm |
Maximum stroke |
150mm |
150mm |
50mm |
Operation frequency |
80cuts/min |
80cuts/min |
80cuts/min |
Total power |
4kw |
4kw |
4kw |
Overall size |
1600*700*1400(mm) |
1720*600*1430(mm) |
2050*700*1400mm |
Weight |
1000kg |
1500kg |
1500kg |

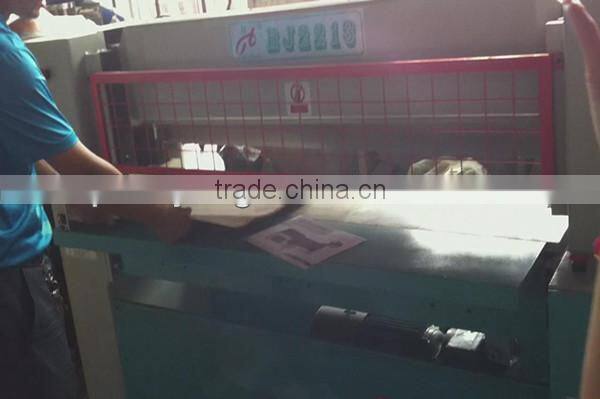

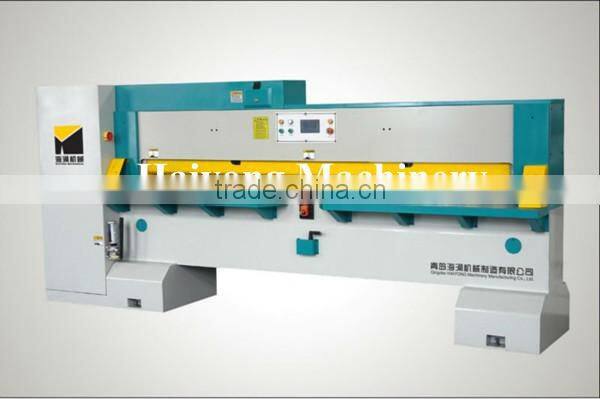

3.Pictures:
6.Other production offered:
Hydraulic veneer shearing machine
Pneumatic veneer clipper
Qingdao Haiyong Machinery Manufacturing Co., Ltd. is a manufacturer of wood –working machinery with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in manufacturing wooden products and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
We can produce machine according to customer's requirement.
For more infomation,please feel free to contact me.
Wish you a nice and happy day:))
