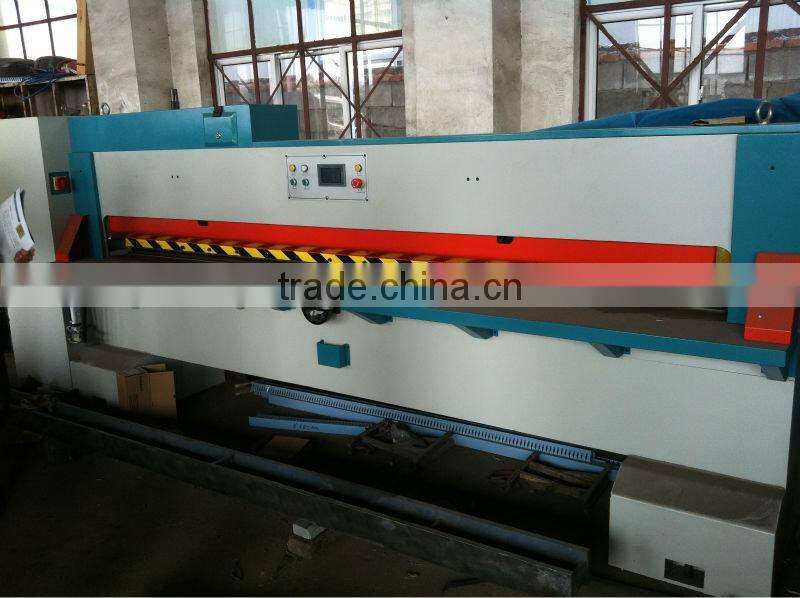

woodworking precision paper veneer cutting machine

Specifications

the veneer cutting machine is used for cutting the veneer or paper. the max cutting length is from 1600mm to 3500mm.

Application of the veneer cutting machine

Thin veneer cutting machine series adopts worldwide advanced technology and is manufactured with fine process and can be used in the superimposition processing of the thin wood, sheet paper, etc. and is a necessary equipment for the manufactures of three-ply board, multiplayer board, dense board, lumbercore plywood and the furniture.
This veneer cutting machine is well sold in more than 20 provinces and cities and also exported to Southeast Asia and other countries and is very popular among the users.
This veneer cutting machine adopts electromagnetic braking three-phase asynchronous motor with smooth performance and sensitive and stable braking velocity.
This veneer cutting machine adopts advanced photoelectric protector and the operation is even more safe and reliable.
This feeding system of this machine has two operation modes of manual and automatic feeding for the customer option. The automatic feed adopts international advanced digital counter to make the size more precise and the quality more stable.

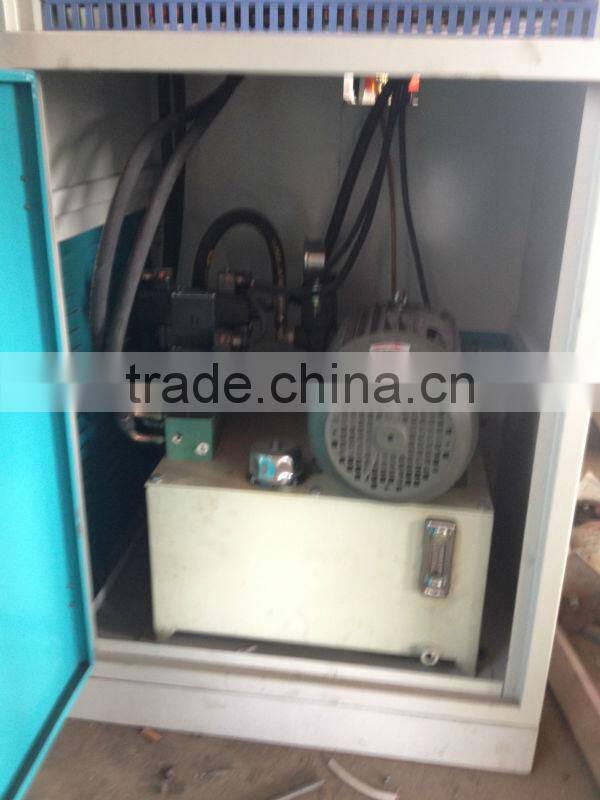

The pressing system of this machine adopts dual modes of hydraulic and air-pressure for the user's option.

 Brief introduction of veneer cutting machine

The veneer cutting machine adopts the advanced machine guide-way structure with precise input and positioning, which solves the hard problem of non-uniform cutting.
No contamination to the material, save cost and convenient maintenance.
Novelty structure, advanced and rational design is easy and simple to handle.
Both knife rest and press plate adopt cast iron with good stability.
The feeding attachment particularly fit for cutting the edge sealing wood strip.
Ensure the safety of your transaction Receive assistance throughout the entire process



Technical specification of veneer cutting machine

Model	MQJ160	MQJ260	MQJ310	MQJ350
Max cutting length	1600	2600	3100	3500
Max cutting thickness	50	50	50	50
Oil pump power	4	4	4	4
Feeding motor power	0.1	0.18	0.18	0.18
Max working pressure	10	10	10	10
Overall dimension	2470*1450*1600	3680*1680*1600	4180*1680*1600	4580*1680*1600
Net weight	2000	2350	2650	3300









this is the brief introdution about our company

QINGDAO HAIYONG MACHINERY MANUFACTURING CO, LTD is a woodworking machine manufacturing

company established in 2000 which has rich experience in the field of precision machining. We mainly produce

veneer slice, rotary lathe, knife grinder, edge banding machine, veneer shearing machine,hot press machine

etc. Our company emphasize the high quality of products. We introduce equipments like bedway grinder,

CNC boring and miling machine etc and parts from domestic and international famous brands to make the

main parts of our products reaching the international advanced level. Our company obtained the international

 quality certificate of IS09001 in 2012 and integrity company certificate of alibaba in 2013. Our products sell to

American, Russia, Peru, Dubai, India, Iran, Mexico. Focused on Customers is our service tenet for years.We provide

good after sale service for customers. We welcome new and old customers from all walks of life to contact us for future

business relationships and achieving mutual success!

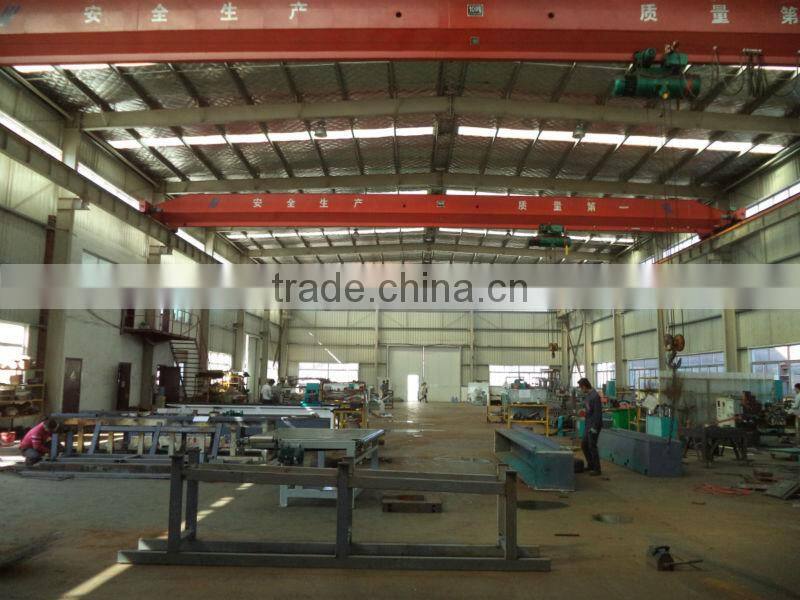

this is picture of our fatory and our exhibition

i f there is anything you are not clear, please feel free to contact me. thanks
