sliding table saw machine1.Movable table guide track is in and out of chrome plated round rod structure
2.Made of high-stren

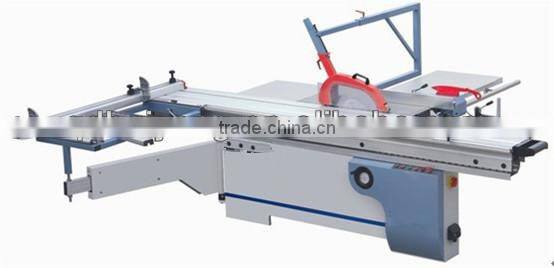

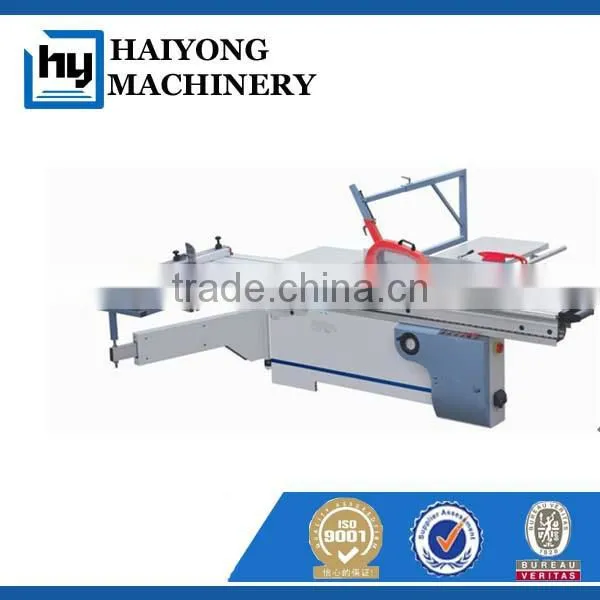

sliding table saw machine
Feature:
1. Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
2. Movable table guide track is in and out of chrome plated round rod structure , exact and durable.
3. Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
4. With oxidation treatment, movable table surface is beautiful and hardwearing.
Main technical parameter:
Dimension of sliding table | 3800*375mm |
Gross cut capacity | 3800mm |
The biggest cutting width | 1250mm |
Saw blade diameter | 300mm(250-315) |
The biggest cutting thickness | 80mm |
Near spindle diameter | 40mm |
45°max cutting thickness | 55mm |
Speed of main saw spindle | 4000/6000rpm |
Main spindle diameter | 30mm |
Tilting saw blade | 0-45º |
Main motor | 5.5KW |
Diameter of scoring saw | 120mm |
Speed of scoring saw blade | 8000r/min |
Diameter of countershaft | 20mm |
Scoring motor | 0.75kw |
Overall dimensions | 3850X3150X960mm |
