Specifications
this saw machine is used for cutting wood board.the max working length is1500mm,2200mm,2800mm.the basic information about saw machine
1 apply to processing all kind of density boards, shaving board, wood- based panel, pvc panel, organic glass, soild wood and others with wood structure and similar hardness
2 movable table guide track iss plating chromium steel bars structure, exact and durable.
3 made of high-strength extruded aluminum alloy,movable table is high in strength and won't be bend.
4with oxidation treatment, movable table surface is beautiful and hardwearing.
5 tilt angle of main and scoring saw blades are displayed directly by precision inclinometer
main teechnical parameter of saw machine
| dimension of sliding table | 3200X415MM |
| max cut length | 3200mm |
| max cut width | 1250mm |
| saw balde diameter | 300mm |
| cutting thickness at the angle of 45 | 55mm |
| speed of main saww spindle | 4000/6000rpm |
| main spindle diameter | 30mm |
| tilting saw blade | 0-45 |
| main motor | 5500w |
| scoring sw balde diameter | 120mm |
| speed of scoring saw blade | 7000-8000r/min |
| scoring spindle diameter | 20mm |
| scoring motor | 1100w |
| net weight | 950kg |
| height of cut | 80mm |
| gross weight | 1100kg |
| overall dimensions | 3300x3150x900mm |

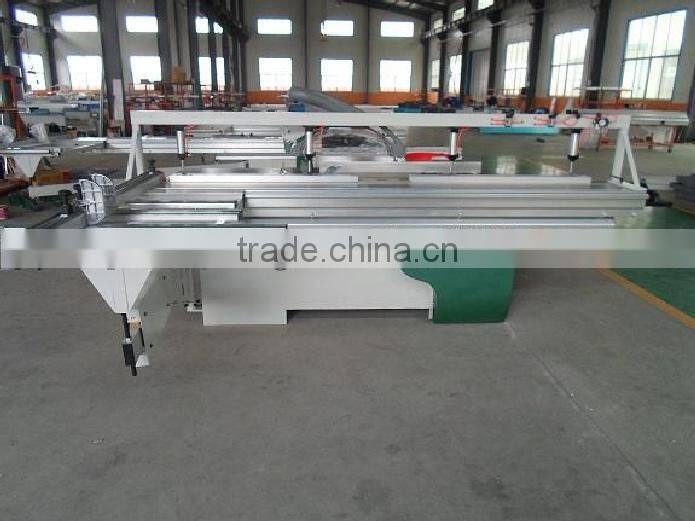

picture of the automatic saw machine
