Percise Automatic Panel Saw
US$ 500 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Table Panel Saw
Use:
Woodworking
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Table Panel Saw
Use
Woodworking
Style
Horizontal
Place of Origin
Shandong, China
Brand Name
HAIYONG
Model Number
HY30
Usage
cut wood
Voltage
380v
Power(W)
5500w
Dimension(L*W*H)
3300x3150x900mm
Weight
1100kg
Certification
ISO9001
Warranty
1 year
Specifications
automatic panel saw is used for cutting wood board. the max cutting length is3200mm.the basic information about automatic panel saw
1 apply to processing all kind of density boards, shaving board, wood- based panel, pvc panel, organic glass, soild wood and others with wood structure and similar hardness
2 movable table guide track iss plating chromium steel bars structure, exact and durable.
3 made of high-strength extruded aluminum alloy,movable table is high in strength and won't be bend.
4with oxidation treatment, movable table surface is beautiful and hardwearing.
5 tilt angle of main and scoring saw blades are displayed directly by precision inclinometer
main teechnical parameter
| dimension of sliding table | 3200X415MM |
| max cut length | 3200mm |
| max cut width | 1250mm |
| saw balde diameter | 300mm |
| cutting thickness at the angle of 45 | 55mm |
| speed of main saww spindle | 4000/6000rpm |
| main spindle diameter | 30mm |
| tilting saw blade | 0-45 |
| main motor | 5500w |
| scoring sw balde diameter | 120mm |
| speed of scoring saw blade | 7000-8000r/min |
| scoring spindle diameter | 20mm |
| scoring motor | 1100w |
| net weight | 950kg |
| height of cut | 80mm |
| gross weight | 1100kg |
| overall dimensions | 3300x3150x900mm |

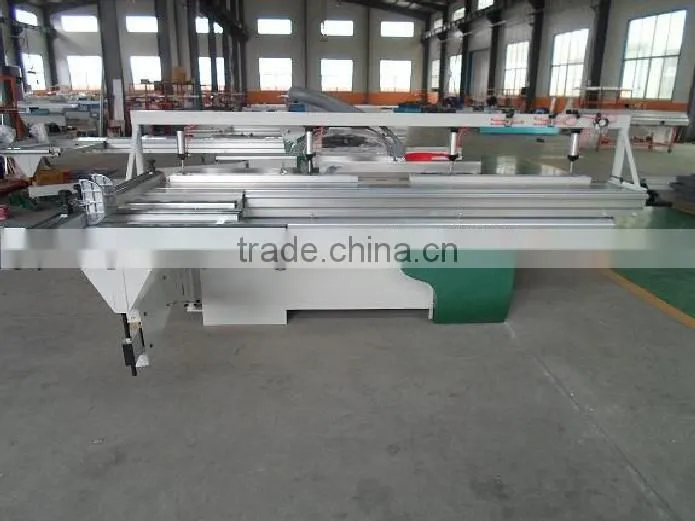

picture of the automatic panel saw
