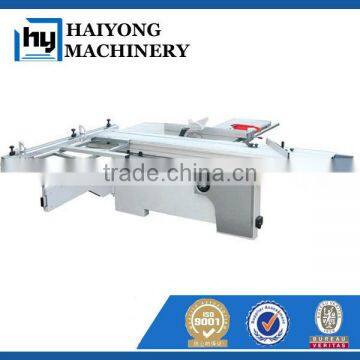

this machine is used for cutting panel board,
basic funtion of this machine
1. suitable for cutting all kinds of MDF, Plywood board, shaving boards, PVC panels, wood-based panels, ABS panels, , organic glass plates, other wood structure and similar hardness panels.
2. the guideway is imported chromium steel balls structure, precise and durable.
3. the movable table is made of high-strength extruded aluminum alloy, strong and won’t bend.
4. the movable table surface is oxidation treatment, beautiful and hardwearing
technical specification
Type | MJ6128TY | MJ6130TY | MJ6132TY | MJ6138TY |
Table size (mm) | 2800*400 | 3000*400 | 3200*400 | 3800*400 |
Main saw Power (kw) | 4 | 4 | 5.5 | 5.5 |
Main saw rotation (r/min) | 4000-6000 | 4000-6000 | 4000-6000 | 4000-6000 |
Main saw Diameter (φ) | 300*30 | 300*30 | 300*30 | 300*30 |
Grooving saw power (kw) | 0.75 | 0.75 | 0.75 | 0.75 |
Grooving saw Rotation (r/min) | 8000 | 8000 | 8000 | 8000 |
Grooving saw Diameter (φ) | 120*20 | 120*20 | 120*20 | 120*20 |
Max. cutting thickness (mm) | 75 | 75 | 75 | 75 |
Incline angle (degree) | 45 | 45 | 45 | 45 |
Net Weight (kg) | 650 | 850 | 1000 | 1200 |
Size (mm) | 2900*3100*900 | 3100*3150*900 | 3250*3150*900 | 3800*3500*950 |
