1500mm to 7000mm Woodworking/printing Knife Sharpening Machine

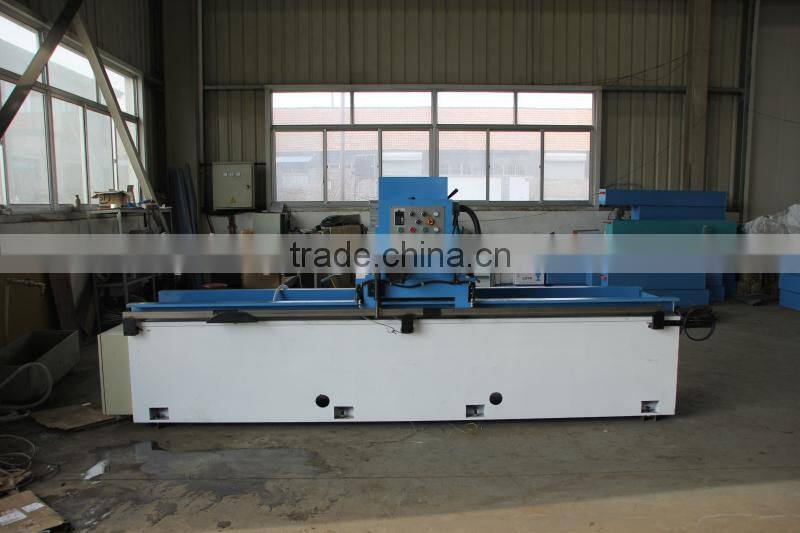

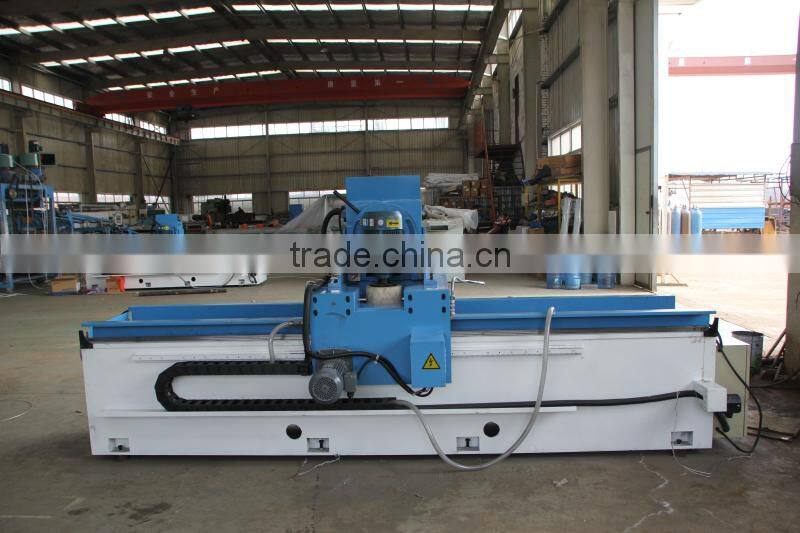

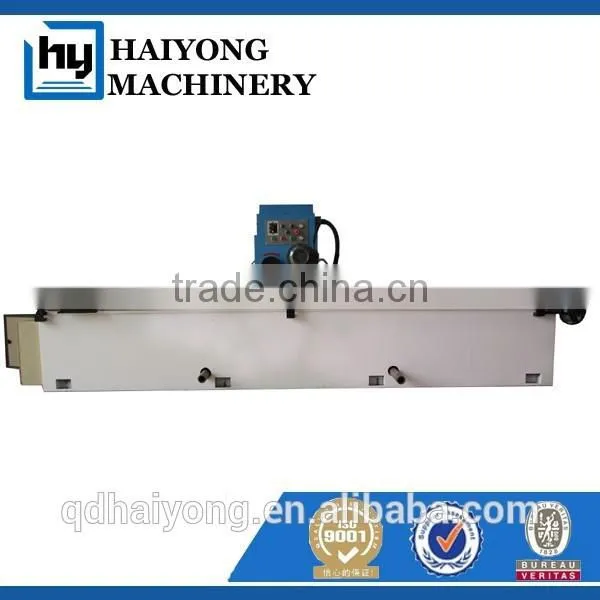

1500mm to 7000mm Woodworking/printing Knife Sharpening Machine photo-1
US$ 6,000 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Surface Grinding Machine
CNC or Not Normal
Max. Grinding Diameter 200mm
Max. Grinding Length 2200mm
Place of Origin Shandong, China
Brand Name haiyong
Model Number HM1822
Voltage 220v,380v,440v
Power(W) 4kw
Dimension(L*W*H) 4000x1400x1400mm
Weight 2320
Certification ISO
After-sales Service Provided Overseas service center available

specification of the knife sharpening machine

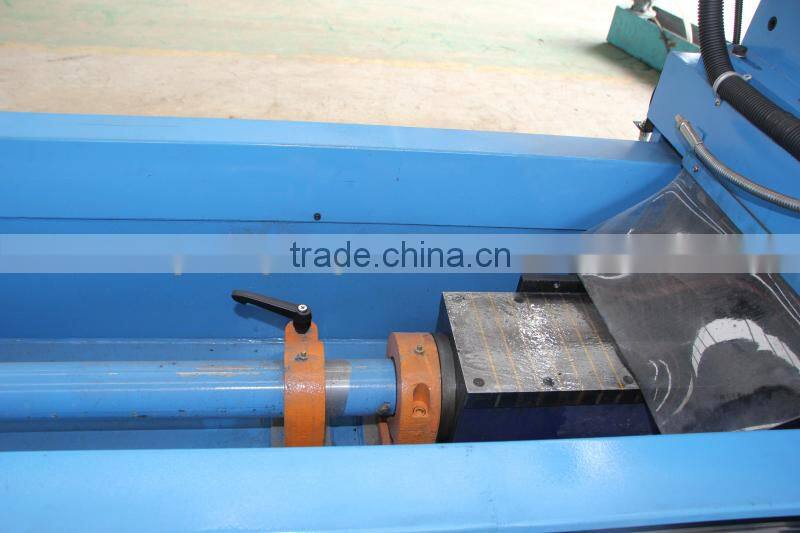

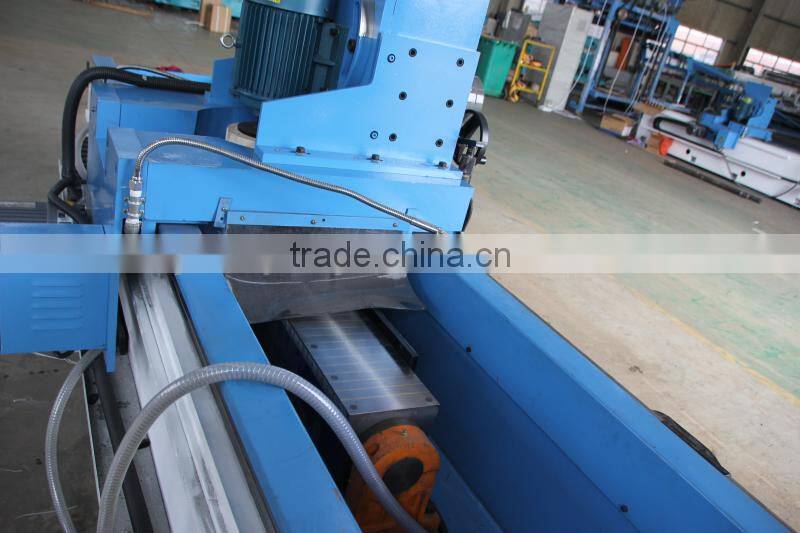

1. The working table is of electromagnetic chunk with strong magnetic power and lower consumption.

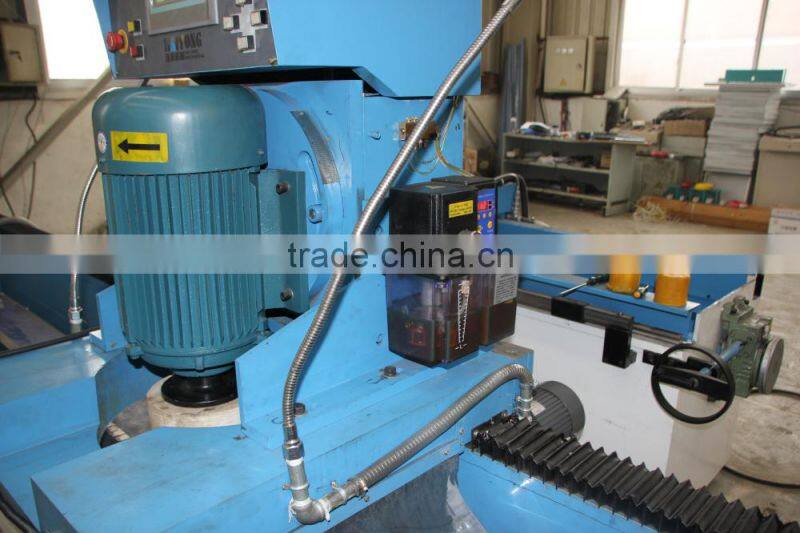

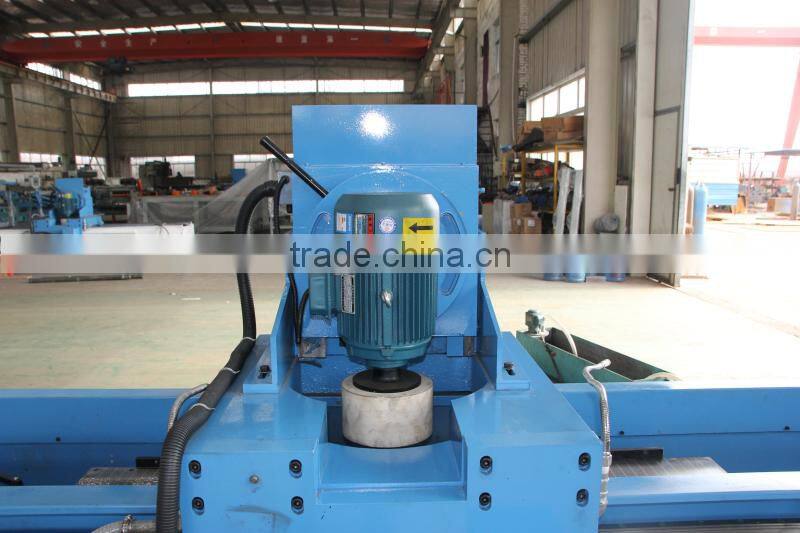

2. The grinding  motor is professionally made for grinding knife, with high precision and easy maintenance.

3. The machine has a double tilting fillet to lock tight the electro-magnetic chunk, so the grinder is more stable.

4. The machine chooses rack driving, so the grinding head traveling is smoother.

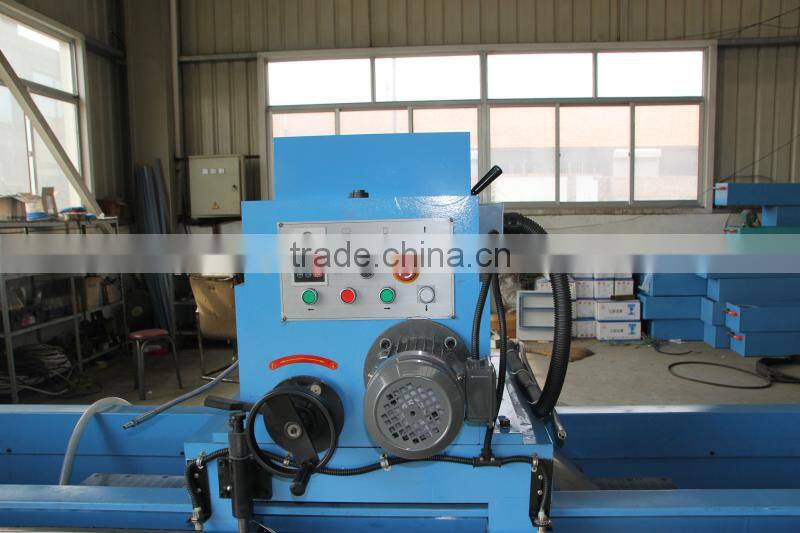

5. The button is chosen from Siemens which has a reliable quality. It is easy to operate and has a long life span.

6. The switch and the contactor is choose from French Schneider electric components which are well known in the world. The quality is beyond all doubts.

7. The moving up and down of the grinding head is depended on the ball screw. The machine can use for a long time without the dropping of the knife. It is the no clearance transmission.

8. The movement of the grinding head is controlled by the inverter. Its speed is 0-20m/s. Its speed can be fitted for both accurate grinding and rough grinding.

9 we can make the grinding chunk for you due to the size of your griding stone.



 parameter of the knife sharpening machine

Name/ model

HM1815

HM1822

HM1830

HM1835

HM1842

Max grinding length

1500mm

2200mm

3000mm

3500mm

4200mm

Width of the working table

180mm

180mm

180mm

180mm

180mm

Grinding head power

4kw

4kw

4kw

4kw

4kw

Linear speed of grinding wheel

0-20m/s

0-20m/s

0-20m/s

0-20m/s

0-20m/s

Speed of the sliding plate

Stepless speed change

Stepless speed change

Stepless speed change

Stepless speed change

Stepless speed change

Tilting range of the working table

±90°

±90°

±90°

±90°

±90°



 1500mm to 7000mm woodworking/printing knife sharpening machine1500mm to 7000mm woodworking/printing knife sharpening machine1500mm to 7000mm woodworking/printing knife sharpening machine1500mm to 7000mm woodworking/printing knife sharpening machine1500mm to 7000mm woodworking/printing knife sharpening machine1500mm to 7000mm woodworking/printing knife sharpening machine1500mm to 7000mm woodworking/printing knife sharpening machine1500mm to 7000mm woodworking/printing knife sharpening machine
