Home > Products > Knife Grinder > CNC Knife Grinder HM1830

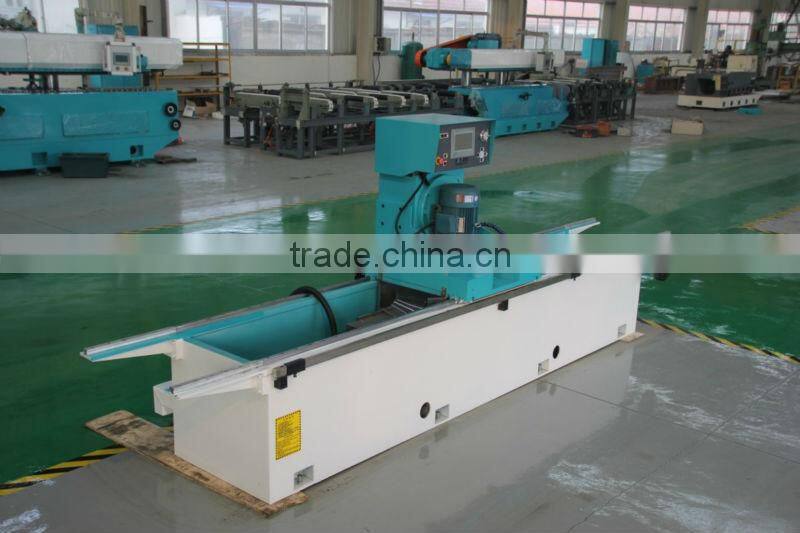

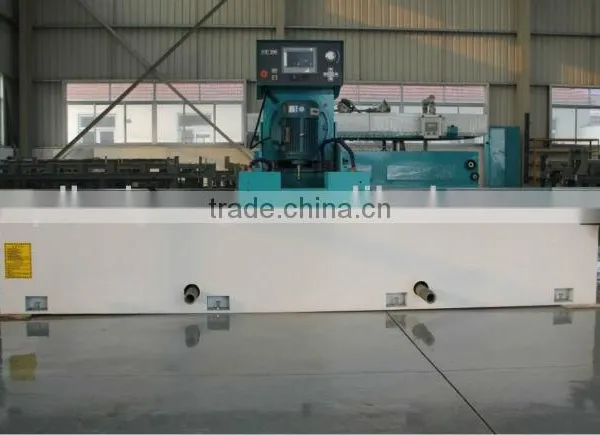

CNC Knife Grinder HM1830
- 2 Set / Sets per Month
- Qingdao port
- advanced design easy operation mushroom slice cutting machine
- advanced design easy operation shitake slicer machine
- advanced design easy operation spiral vegetable slicer
- advanced design easy operation automatic vegetable mushroom slicer
- advanced design easy operation multifunctional vegetable cutter
- advanced design easy operation vegetable slicer/mushroom slicer
Product Details
Place of Origin: | Shandong, China | Brand Name: | Haiyong | Model Number: | HM1830 |
Product Description
Specifications
Adopting the technology at home and abroadThe electromagnetic chunk with strong magnetic power and lower
consumption
Adopting the technology at home and abroad, this newly developed machine has reached the international level and has become a necessity for many knife users.
1. The working table is of electromagnetic chunk with strong magnetic power and lower consumption.

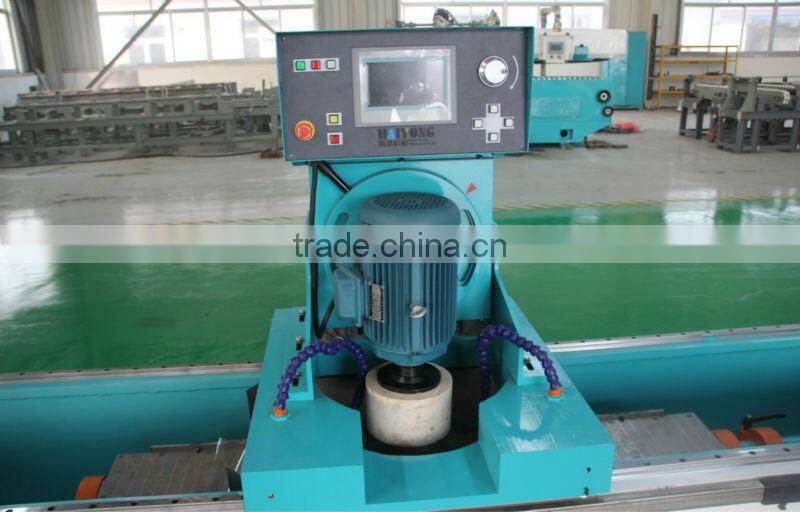

2. The spindle motor is professionally made for grinding knife, with high precision and easy maintenance.
3. The machine has a double tilting fillet to lock tight the electro-magnetic chunk, so the grinder is more stable.
4. The machine chooses rack driving, so the grinding head traveling is smoother.
5. The button is chosen from Siemens which has a reliable quality. It is easy to operate and has a long life span.
6. The switch and the contactor is choose from French Schneider electric components which are well known in the world. The quality is beyond all doubts.
7. The moving up and down of the grinding head is depended on the ball screw. The machine can use for a long time without the dropping of the knife. It is the no clearance transmission.
8. The linear guide is from Taiwan TBI. It can keep the smoothness of the walking and it has a long life.
9. The movement of the grinding head is controlled by the inverter. Its speed is 0-20m/s. Its speed can be fitted for both accurate grinding and rough grinding.
10. The Siemens touch screen is a PLC controller. You can set the automatic cycle times, automatic feeding times, feeding number and grinding head walking speed by the touch screen. This can finish the grinding of one knife only by one-touch operation.
11. The feeding is controlled by impulse. The servo motor drive the up and down of the grinding head.
Technical specification:
Name/ model | HM1815 | HM1822 | HM1830 | HM1835 | HM1842 |
Max grinding length | 1500mm | 2200mm | 3000mm | 3500mm | 4200mm |
Width of the working table | 180mm | 180mm | 180mm | 180mm | 180mm |
Grinding head power | 4kw | 4kw | 4kw | 4kw | 4kw |
Linear speed of grinding wheel | 15m/s | 15m/s | 15m/s | 15m/s | 15m/s |
Speed of the sliding plate | Stepless speed change | Stepless speed change | Stepless speed change | Stepless speed change | Stepless speed change |
Tilting range of the working table | ±90° | ±90° | ±90° | ±90° | ±90° |
This is the video of the knife grinder: /watch?v=NCQMXHLEcXk
