Home > Products > Hot Press Machine > woodworking new model lamination machine
woodworking new model lamination machine
- 1 Set / Sets per Month
- QINGDAO
- Automatic powder coating machine-ZHT-Made in China-Shenyang Liaoning
- LIVTER Fully Automatic Hydraulic Chilling Press Hydraulic Wooden Wood Door Press Machine
- 60T Hydraulic Multi-Layer Wooden Door Cold Pressing Machine For Multilayer Plywood Honeycomb Panel
- PL8-D High Quality Hydraulic Hot Press Plywood machine
- Pvc film vacuum membrane press machine for wood cabinet door PVC laminating machine for interior door making
- one table PVC foil vacuum press machine Pvc film vacuum membrane press for wood cabinet door
Product Details
Condition: | New | Type: | Hot Press | Application: | plywood making |
Pressure: | 100T-500T | Place of Origin: | Shandong, China | Brand Name: | HAIYONG |
Model Number: | BY214 | Voltage: | 380V | Power(W): | 2600 |
Dimension(L*W*H): | 5000X1446X5395MM | Weight: | 3400KG | Certification: | ISO9001 |
Warranty: | 1year | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
lamination machineis widly used in wood based panel.1.max pressure is 1.6mn
2 max opening is 80-120
number of layer is 5
Specifications
the hot presss is used to hot-press and adhere furniture panel, construct partition, wood and adhere furniture panel,construct partition,wooden door and to press all kind of decorative material such as decorative paper, decorative cloth, melamine proof plate,metal foil,artificialand nature veneer and natural veneer matvhing on the surface of vaarious artificial board such as plywood,core-board,MDF and shaving board and also is used for veneer drying leveling and leveling and forming for colorful decorative veneer,so it is suitable for midsize furniture factory and small soze factory of artificial board secondary operation.
Technical specification:
Model | BY214×8/12(3)H | BY214×8/16(4)H | BY214×8/16(5)H |
Size (foot) | 4×8 | 4×8 | 4×8 |
Dimension of hot platens (mm) | 1300×2600 | 1300×2600 | 1300×2600 |
Nominal pressure (mn) | 1.2 | 1.6 | 1.6 |
Max service opening (mm) | 80-120 | 80-120 | 80-120 |
Number of layers | 3 | 4 | 5 |

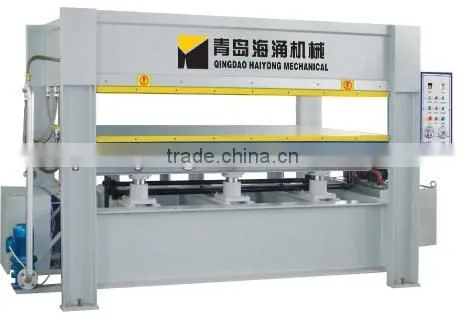

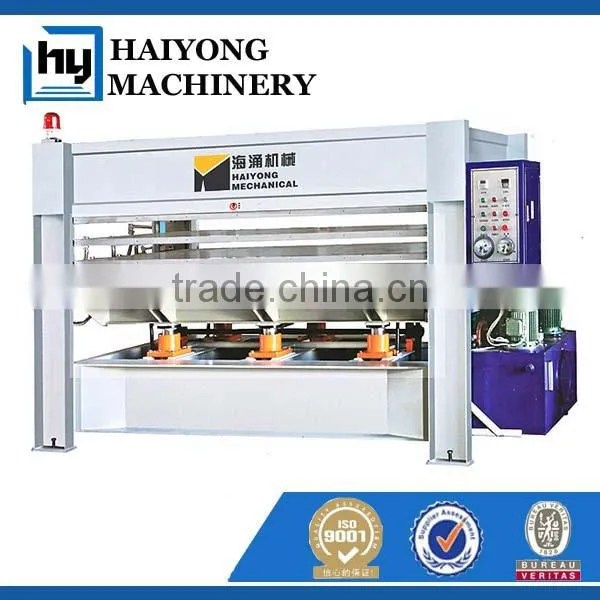

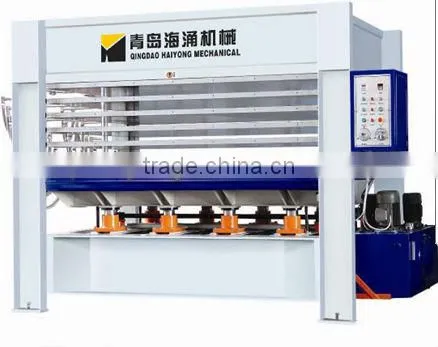

picture of the machine
