Aluminum Titanium Ceramic Rod of Ceramic Spray Coatings
Ceramic Spray Coatings Properties:
1 Good Resistance to Mechanical Friction
2 Good Abrasion Abrasion Resistance
Ceramic Spray Coatings Aluminum Titanium Ceramic Rod Typical Chemical Composition(%)
| AI2O3 | 49.01 |
| TiO2 | 49.11 |
| SiO2 | 0.82 |
| CaO | 1.01 |
| Fe2O3 | 0.03 |
| MgO | 0.02 |
Ceramic Spray Coatings Properties:
| Color | Yellow |
| Weight | 41g/pcs |
| Hardness | HV1000~1200 |
| Applications | Hot Metal Extrusion Dies |
Ceramic Spray Coatings Features
| Deposit Efficiency | 61% |
| Total porosity | <8.6% |
| Bulk Density | 4.8g/cc |
| Coating Hardness | HV1100 |

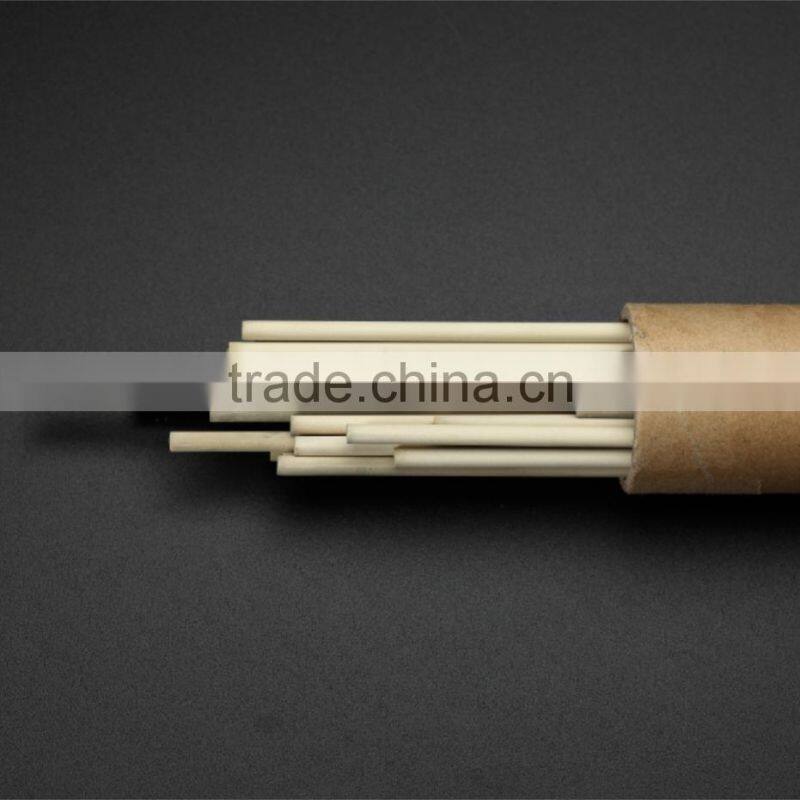

Aluminum Titanium Ceramic Rod,Ceramic Spray Coatings Packaging
| Kingsky™AT | 1/4" (KS-05) |
| Rods Packaged in Tubes | 50 rods |
| 10 tube per wooden box | 500 rods |
Ceramic Spray Coatings Worth knowing:
Properties of Aluminum Oxide Ceramic (Al2O3)
1 Very good electrical insulation (1x1014 to 1x1015 Ωcm)
2 Moderate to extremely high mechanical strength (300 to 630 MPa)
3 Very high compressive strength (2,000 to 4,000 MPa)
4 High hardness
5 Moderate thermal conductivity (20 to 30 W/mK)
6 High corrosion and wear resistance
7 Good gliding properties
8 Bioinert and food compatible

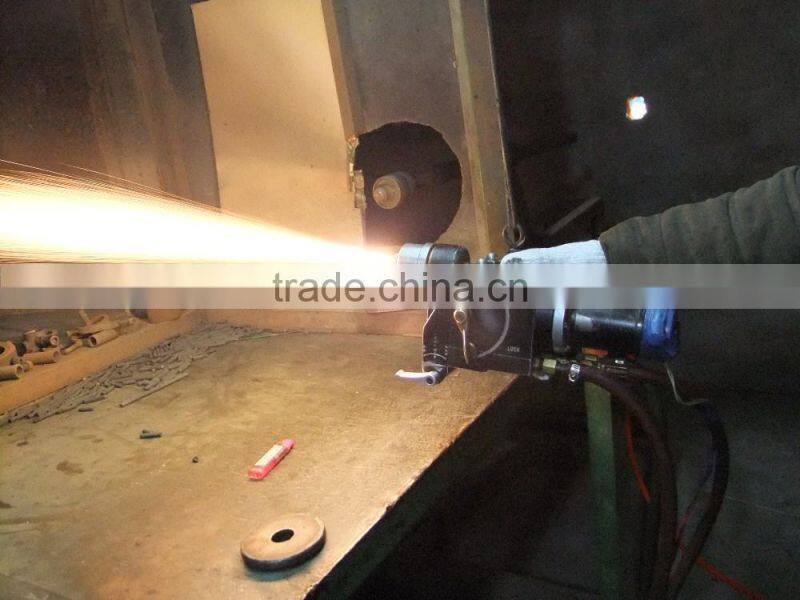

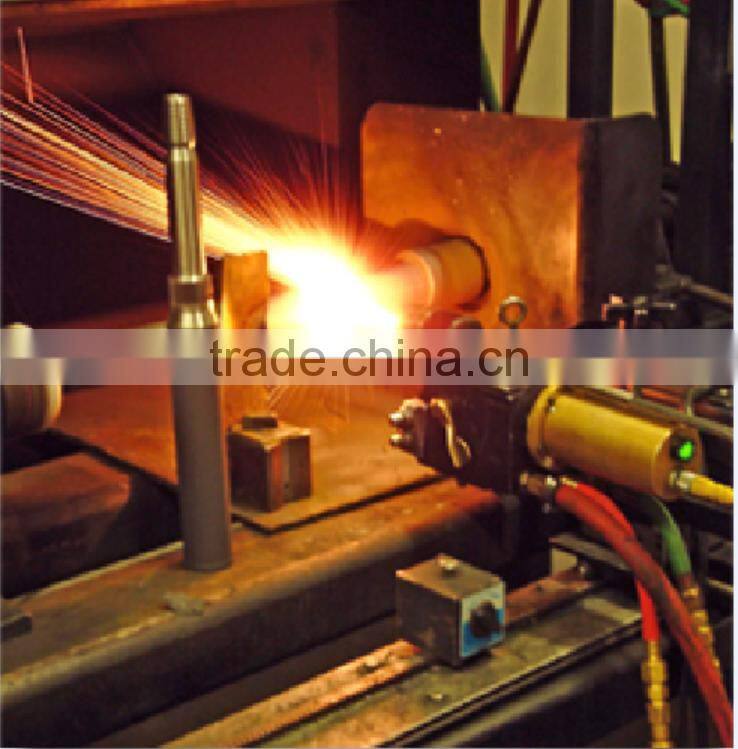

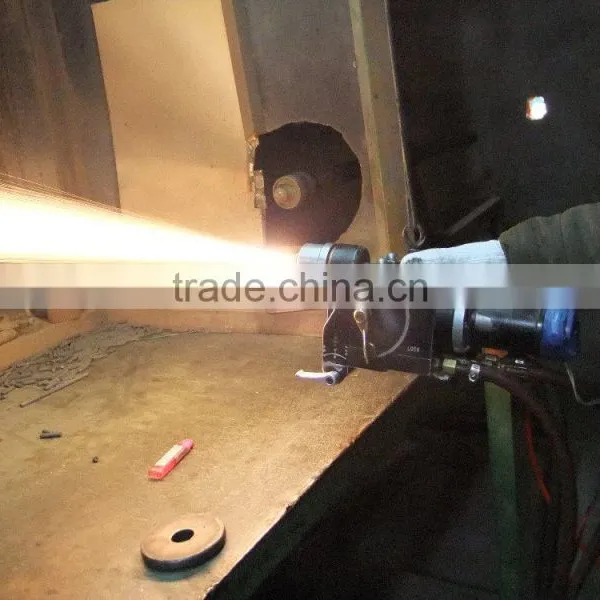

Ceramic Spray Coatings,Ceramic Rod Flame Spraying by Al2O3:
Numerous chemistries are available, each offering unique advantages. Aluminum oxide coatings can be engineered to improve dielectric performance (using nearly-pure AlO3), to provide electrical insulation, to boost corrosion or wear resistance (using titanium oxide additives), to reduce or eliminate current transfer arc erosion, and more, based on customer requirements for part performance
1 Ball Heads
2 Ballistic Protection Components
3 Bearing Technology in Automotive Engineering
4 Drawing Tools
5 Dry-pressed Substrates (Ceramics)
6 Vacuum Isolators
7 Metalized Substrates (Ceramics)
8 Protective Ceramics (Ballistics)
9 Pumps, Components for
10 Seal and Regulator Discs
11 Seal Rings, Bearings and Sealing
12 Sealing Technology (Seal Rings, Bearings)
13 Stamped Substrates (Ceramics)
14 Textiles Industry
15 Vacuum Accessory Components
Ningbo Kingsky Ceramic Rod co., ltd,Ceramic Spray Coatings
Ningbo Kingsky Thermal Spray Ceramic Rod co., ltd are one of China's leading manufacturers and supplier's of thermal spray ceramic rod and thermal spray industrial coating services.
Kingsky's original ceramic rod came out of Shanghai Institute of Ceramics,Chinese Academy of Sciences. This relationship continues today as Kingsky and SIC continues to collaborate in ceramic rod materials for thermal spray research. Kingsky ceramic materials with a focus on developing and manufacturing the highest performing line of ceramic rod for thermal spray, along the road on our amazing journey, we pride ourselves in providing ceramic rod with a rare of unmatched reliability, quality and good service. Due to reasonable prices, convenient delivery, good service, our products have become the best supplier of choice to reduce production costs, and is widely used in different industry:
1 Wire industry (wire drawing capstans, wire drawing rolls and wire guides)
2 Textile and chemical fiber industry (tension washers, draw rolls and thread guides)
3 Paper industry (pump sleeves, pump shafts, and valve stems, etc.)
4 Petrochemical industry (Pump sleeves, Mud pump shafts, etc.)
5 Aerospace (entry guide vanes) This makes Kingsk leader in Thermal Spray Ceramic Rod Coating in China
Ceramic Spray Coatings ,Kingsky™ Ceramic Rod Samples Policy
1 To help you with your testing of the Kingsky™ Ceramic Rod, Kingsky is pleased to offer a limited amount of ceramic rod samples to qualified customers.
2 Usually 10 pcs ceramic rod sample are valid.
3 No Free samples! it needs a limited amount cost of the samples (include shipping cost by DHL or Fedex)
4 If you'd like to order ceramic rod samples or have any questions, please don't hesitate to contact us
Aluminum Titanium Ceramic Rod of Ceramic Spray Coatings
