Industrial Tea Ultrasonic Extraction Equipment

Ultrasonic herbal extraction processor

 ultrasonic extraction equipment

MODEL: BR-28SH/BR-20SH

INTRODUCTION:

The ultrasonic herbal extraction equipment is composed of ultrasonic transducer (converter) with cover, booster, horn (sonotrode, probe) and generator.

Ultrasonic extraction is the use of ultrasound (frequency> 20KHz) with the mechanical effect, cavitations effect and thermal effect, by increasing the movement velocity of the molecular medium, increasing media penetration in order to extract material (herbal medicine) active ingredient technology.

1. Mechanical effects


Ultrasonic wave propagation in the medium can make the medium in the propagation space in particle vibration, thereby strengthening the medium of diffusion, mass transfer, that is ultrasonic mechanical effects.
Ultrasonic transmission:

1. Radiation pressure-- Organization cells deformation, plant protein denaturation.

2. Molecular friction--biological molecules depolymerization.

2. Cavitations effects

Medium dissolved micro bubbles within the ultrasound's role in increasing the formation of the cavity, and then instantly closed, that is ultrasonic cavitations.

3. Thermal effect


Ultrasound in the dissemination process, the sound can continue to be absorbed by the media, and all or most of the energy into heat energy, causing the media itself, and herbs tissue temperature to promote dissolution of the active ingredient, which is the thermal effect of ultrasound.

MAIN ADVANTAGE:

1. High extraction efficiency:

the unique physical characteristics of ultrasound can induce plant cell tissue broken or deformed, so that extraction is more fully of herbal medicine active ingredients, the extraction rate increased significantly than traditional craft of 50 to 500%;

2. Short extraction time:

   Ultrasonic extraction of herbal medicine can usually in 24-40 minutes to get the best extraction rate, extraction time greatly reduce the 2 / 3 than traditional methods, medicinal raw materials large processing capacity;

3. Low extraction temperature:

Ultrasonic extraction best temperature of herbal medicine is 0-60 °C, for the case of heat-labile, susceptible to hydrolysis or oxidation of the active ingredients in medicinal herbs has a protective effect, while significantly saving energy; extraction temperature 40 - 60 °C, to protect the active ingredient.

4. Wide Adaptability:

Ultrasonic extraction of herbal medicines is not limit of component polarity and molecular size, suitable for extracting various herbs and components;

5. Extract liquid little impurities, the active ingredient is easy to separate and purify;
6. Extraction of low operating costs, overall economic efficiency significantly;
7. Simple operation, easy to maintenance.

SPECIFICATION:

APPLICATION:

The ultrasonic herbal extraction equipment is suitable for extraction herbal (traditional Chinese medicine).

.

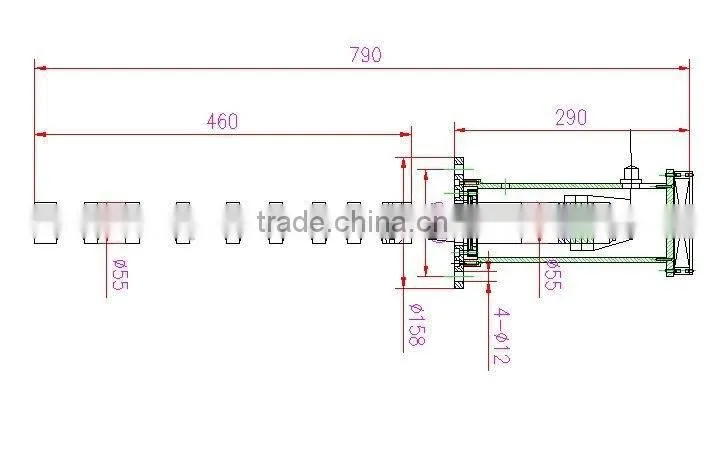

DRAWING:

PACKAGING:

DELIVERY TIME:15DAYS

PAYMENT TERMS:T/T,L/C,ESCROW

GUARANTEE: one year for whole equipment warranty. Equipment for the warranty, please contact us first. We will immediately feedback how to return repair.

FAQ:

1. Do you have it in stock?

Sorry, haven’t.

2. Could you supply sample?

Sorry, we can supply sample for free, because its value is high.

3. Could you make it according to our special requirements?

Of course, we can do. Please tell us your idea or your application.

4.How long do you make the order product?

About 20days

5. Do you have operating manual?

Of course, we will put it with the goods together.

6. How about the quality?

One time business is not our target, we hope to be as one hundred enterprises.

 7. Could you do OEM?

Yes, of course.

8. Could we as your agent?

Of course, it’s our pleasure.

Requirements:

1. Need to know ultrasonic knowledge

2. Has a good business reputation.

3. Have certain economic strength.

4. Strong ability of management.

5. Have a sound sales network (with the ability to expand the market).

6. Agents need to implement the unified national price policy of our company, may set the sale price of do STH without authorization, shall not be string.
