♦ Application field

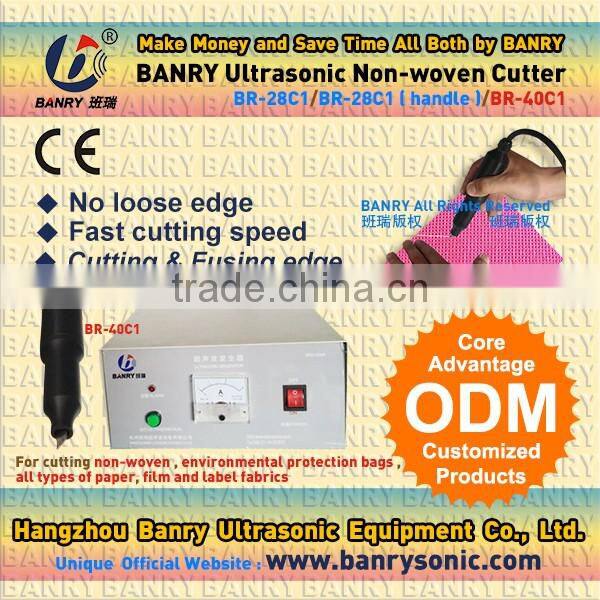

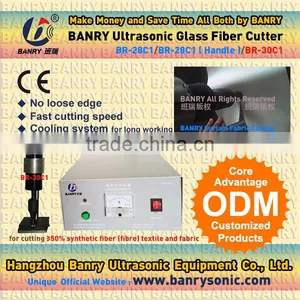

BANRY Ultrasonic BR-28C1/BR-28C1(handle)/BR-30C1 Cutting machine (cutter) is suitable for cutting at least containing 50% synthetic fiber (fibre) textile and fabric. Such as non-woven fabric, chemical fiber (fibre), glass fiber (fibre) cloth (curtain, blind fabric), woven cloth, sunscreen cloth, umbrella cloth, (pongee, polyester, nylon, oxford fabric, satin umbrella fabric, PVC, T/C cotton fabric, EVA, pearl fabric)and so on. It is also suitable for cutting thermal plastic cloth and flannelette fabric. (There are plenty fabric , Blackout, Sunscreen all of them are mainly made of Polyester. There is sunscreen with 30% Polyester and 70% PVC. All of this fabric weight between 300 to 450 gr/m2.)

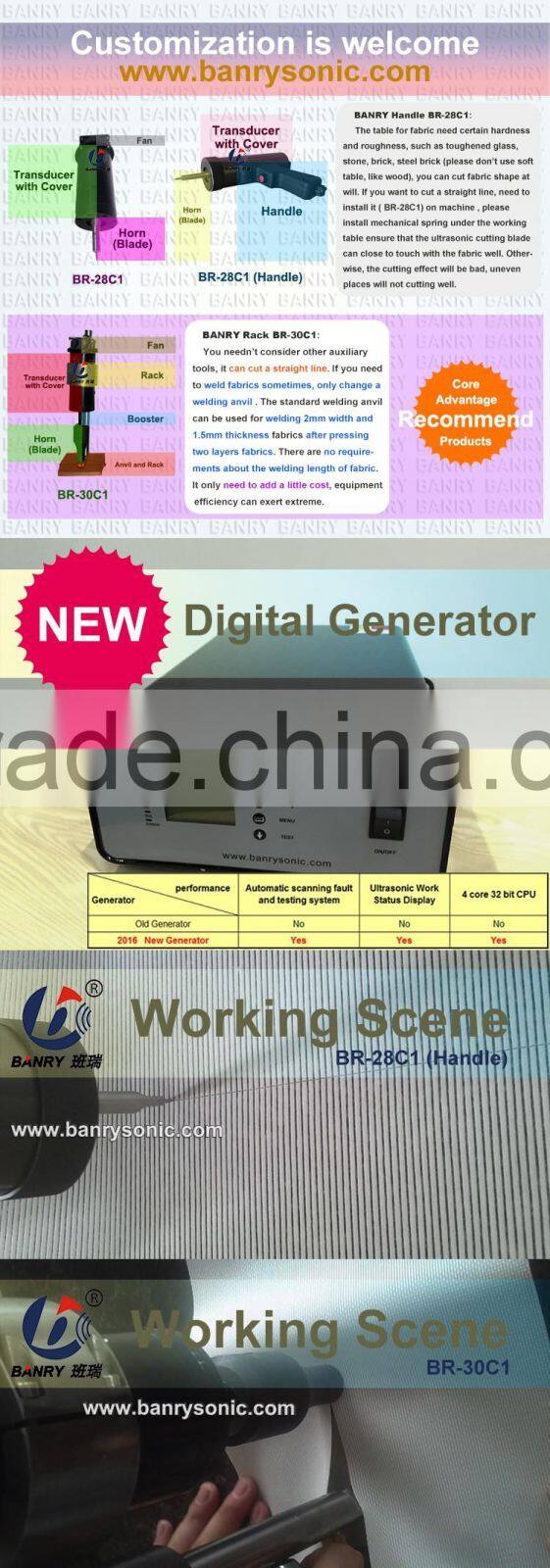

BANRY Ultrasonic Glass Fiber Fabric Cutting Machine ( Cutter ) is composed of ultrasonic transducer (converter) , booster , horn ( sonotrode ) , generator , anvil and rack . There is a fan to cooling ultrasonic transducer ( converter ) , ensure it can work efficiently for a long time. Moreover , Compressed air cooling system is on the rack near the horn , protects the horn and fabric from overheating .
♦ Principle of Ultrasonic Glass Fiber Fabrics Cutting
Ultrasonic energy to the vibration of ten million times , cutting and gluing the cutting edge at the same time , so the cutting point will not rough selvedge like conventional cutting , cutting edge point will produce melt plasticization when cutting/welding process , which makes fraying or rough selvedge impossible .
| Brand/Product | BANRY/Ultrasonic Fabrics Cutting Machine | ||
| Model No. | BR-30C1 | BR-28C1 | BR-28C1(handle) |
| Frequency | 30kHZ | 28kHZ | 28kHZ |
| Cutting power | Cutting power depends on the different compression force change and the cloth | ||
| Switch | Button or foot switch | ||
| N.W. | 20KGS | 10KGS | 10KGS |
| Matched analog generator | Digital generator can be adjusted the output amplitude (match with analog generator for this machine ordinary) | 100 type | 100 type |
| Cable | Standard 2m Special length, please inform us. | ||
♦ Advantage
1. Good cutting effect , good smooth cutting edge and no rough selvedge (loose edge)
2. Cutting speed , reduce the staff's working intensity, cost savings
3. Simple operation , handle cut or can be installed on machine
4. Precise cutting force control cooling system ensure it can work efficiently for a long time
Please click the following pictures to see your interesting products details :
Hangzhou BANRY Ultrasonic Curtain Fabric Cutting Machine

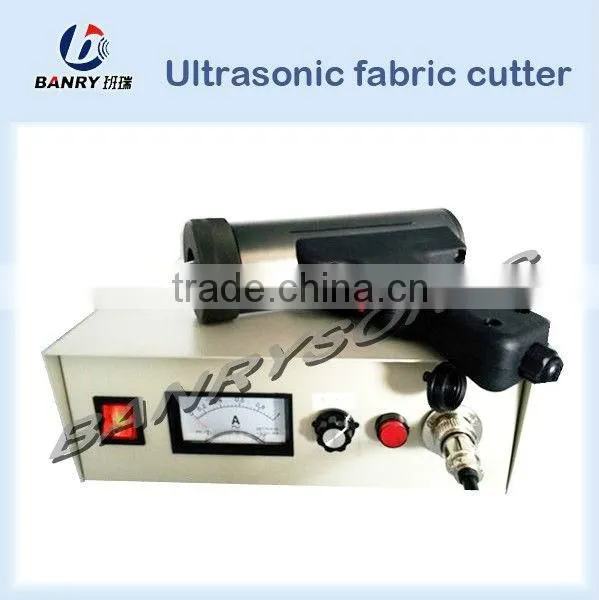

Ultrasonic poliester fabric cutter
