industrial 20k mixer ultrasonic probe sonicator
- 500 Set / Sets per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Banry | Model Number: | BR-28SH/BR-20SH |
Type: | Other, liquid processing |
Product Description

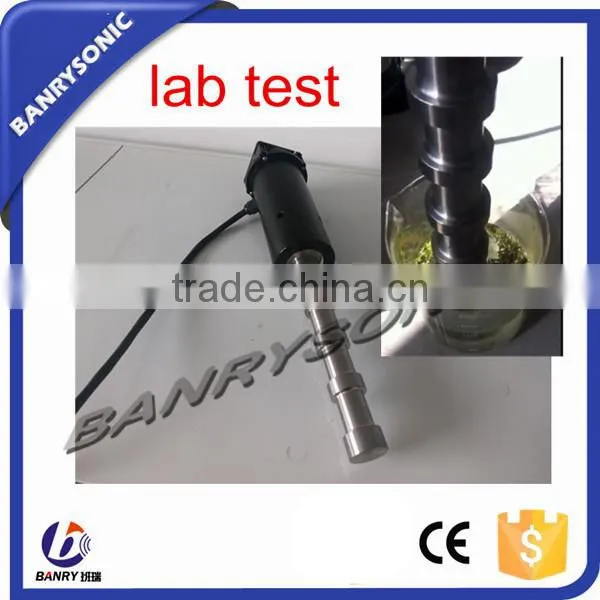

Ultrasonic food oil in water homogenizer
ultrasonic probe sonicator
MODEL: BR-28SH/BR-20SH
INTRODUCTION:
The ultrasonic homogenizer is composed of ultrasonic transducer (converter) with cover,booster, horn (sonotrode, probe) and generator. Mainly is to use of theultrasoniccavitation effect.Ultrasonic in the liquidproducedhundreds of thousands oftimesper second, make the liquid to break into tiny bubbles of vibration, these bubbles in the role of the continuous, rapid growth, then suddenly closed, produce the super shock wave, around the bubble produced thousands of atmospheres of pressure and local high temperature, the physical phenomenon known as ultrasonic cavitation effect. Ultrasonic generatoroutputHigh-frequency voltagesignal to driveultrasonic transducergeneratesultrasound,the use ofcavitationgenerated bythe tremendous energyof theliquidflowing through thedeviceofa strongdecentralization, from thehomogeneousemulsificationeffect.At the same timeget rid oftinybubbleswithinthe liquid, crushing large particulate matter, to prevent theprecipitate,to achievehomogeneousprocessing.
MAIN ADVANTAGE:
1. Optional frequency and power,40kHz — 20 kHz, 200W - 3000W.
2. Withover current, overvoltage protection,to ensuresystem security.
3. Frequencyautomatic tracking adjustment, to avoid theload impedancewith the ambient temperature, the working mediumdue tofactors such aschanges inthe largerpowerfluctuations.
4. Constant power, good effect.
5. Ultrasonic digitalgenerator,small size,light weightand high efficiency.
6. Reasonable structure, easy ventilation, continuous running and reliable operation.
7. Modular design, can be by several hundredwattsor severalkilowatts ofpower to form tenskilowattsgenerator, which can optimize the combination ofthe transducer, and then ensure transducer work in thebest condition; such as agenerator fails, the otherunitstill work,easy torepairthe damagedunit.
SPECIFICATION:
ITEM | DECRIPTION | |||||
TYPE | BR-28SH | BR-20SH-5 | BR-20SH-10 | BR-20SH-15 | BR-20SH-20 | BR-20SH-30 |
Frequency | 28 kHz | 20 kHz | ||||
Max. power | 200W or 500W | 500W | 1000W | 1500W | 2000W | 3000W |
Handling capacity L/h | ≤500 | ≤500 | ≤800 | 200-1000 | 300-1600 | 1600-2500 |
Apply | laboratory | Production line,can be used in combination | ||||
Allow pressure | max≥5 MPa | |||||
Allow temperature | max≥350°C | |||||
Generator | Digital generator can be adjusted the output amplitude from 50% to100%, frequency tracking automatically to sure working continuously. | |||||
Cable | Standard 5m Special length, please inform us. |
APPLICATION:
Apply in food industry, chemical industry, water treatment, cosmetics and other industries in homogeneouse mulsion.
.
DRAWING:
PACKAGING:
DELIVERY TIME:15DAYS
PAYMENT TERMS:T/T,L/C,ESCROW
GUARANTEE: one year for whole equipment warranty. Equipment for the warranty, please contact us first. We will immediately feedback how to return repair.
FAQ:
1. Do you have it in stock?
Sorry, haven’t.
2. Could you supply sample?
Sorry, we can't supply sample for free, because its value is high.
3. Could you make it according to our special requirements?
Of course, we can do. Please tell us your idea or your application.
4.How long do you make the order product?
About 20days
5. Do you have operating manual?
Of course, we will put it with the goods together.
6. How about the quality?
One time business is not our target, we hope to be as one hundred enterprises.
7. Could you do OEM?
Yes, of course.
8. Could we as your agent?
Of course, it’s our pleasure.
Requirements:
1. Need to know ultrasonic knowledge
2. Has a good business reputation.
3. Have certain economic strength.
4. Strong ability of management.
5. Have a sound sales network (with the ability to expand the market).
6. Agents need to implement the unified national price policy of our company, may set the sale price of do STH without authorization, shall not be string.
