Ultrasonic Pesticide Emulsification Device (emulsifier)

Specifications

 Ultrasonic pesticide  emulsification device (emulsifier)

MODEL: BR-28SH/BR-20SH

INTRODUCTION:

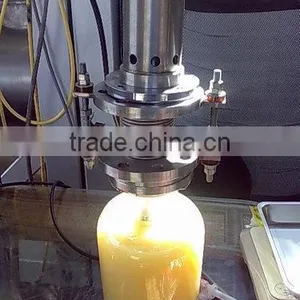

The ultrasonic emulsification (emulsifier) is composed of ultrasonic transducer (converter) with cover,booster, horn (sonotrode, probe) and generator.

MAIN CHARACTERISTIC:

 (1) the formation of the emulsion average droplet size is small, for 0.2 ~ 2μm; narrow droplet size distribution, for 0.1 ~ 10μm; or narrower and high concentrations, the concentration of pure latex can be more than 30%, plus emulsifier can be up to 70%.

(2) the formation of more stable emulsion. An important feature of ultrasonic emulsification is that you can do less with emulsifier or with no emulsifier to produce a very stable emulsion.
(3) can control the emulsion type. Ultrasonic emulsification, in some sound field conditions, O / W (oil in water) and W / O (water in oil) type emulsion can be prepared, which is impossible for mechanical emulsification method. For example: toluene in water emulsion, under loud strong condition is likely to form an emulsion. And under low voice strong can form another type of emulsion.

The obvious advantages of ultrasonic emulsification has prompted it in the food, cosmetics, paper, paint, chemicals, pharmaceuticals, textiles, fuel thermoelectric, fuel central air conditioning, petroleum, metallurgy, bio-diesel and many other industrial processes have increasingly been application, which burn fuel mixed with water in the country is re-emerging as an important project.

Ultrasonic emulsification device compared with stirrer, colloid mill, homogenizer, etc. The emulsion of good quality, high efficiency, low cost, already more and more attention by the departments of industry and adopted, and become a modern important of emulsifying equipment.

MAIN ADVANTAGE:

1. Optional frequency and power,40kHz — 20 kHz, 200W - 3000W.

2. Withover current, overvoltage protection,to ensuresystem security.

3. Frequencyautomatic tracking adjustment, to avoid theload impedancewith the  ambient      temperature, the working mediumdue tofactors such aschanges inthe largerpowerfluctuations.

4. Constant power, good effect.

5. Ultrasonic digitalgenerator,small size,light weightand high efficiency.

6. Reasonable structure, easy ventilation, continuous running and reliable operation.

Modular design, can be by several hundredwattsor severalkilowatts ofpower to form tenskilowattsgenerator, which can optimize the combination ofthe transducer, and then ensure transducer work in thebest condition; such as agenerator fails, the otherunitstill work,easy torepairthe damagedunit.

SPECIFICATION:

APPLICATION:

Suitable for food, cosmetics, paper, paint, chemicals, pharmaceuticals, textiles, fuel thermoelectric, fuel central air conditioning, petroleum, metallurgy, bio-diesel and many other industrial processes
1. Herbal medicine extraction, cells, bacteria, viruses, tissue crushing, such as extraction of cell      contents.
2. The material particles dispersed, homogenize, and emulsions. For example, the dispersion of nanometer materials, cosmetics emulsion.
3. Accelerated dissolution, accelerate chemical reactions, such as chemical synthesis.

.

DRAWING:

PACKAGING:

DELIVERY TIME:15DAYS

PAYMENT TERMS:T/T,L/C,ESCROW

GUARANTEE: one year for whole equipment warranty. Equipment for the warranty, please contact us first. We will immediately feedback how to return repair.

FAQ:

1. Do you have it in stock?

Sorry, haven’t.

2. Could you supply sample?

Sorry, we can supply sample for free, because its value is high.

3. Could you make it according to our special requirements?

Of course, we can do. Please tell us your idea or your application.

4.How long do you make the order product?

About 20days

5. Do you have operating manual?

Of course, we will put it with the goods together.

6. How about the quality?

One time business is not our target, we hope to be as one hundred enterprises.

 7. Could you do OEM?

Yes, of course.

8. Could we as your agent?

Of course, it’s our pleasure.

Requirements:

1. Need to know ultrasonic knowledge

2. Has a good business reputation.

3. Have certain economic strength.

4. Strong ability of management.

5. Have a sound sales network (with the ability to expand the market).

6. Agents need to implement the unified national price policy of our company, may set the sale price of do STH without authorization, shall not be string.
