♦ Application field

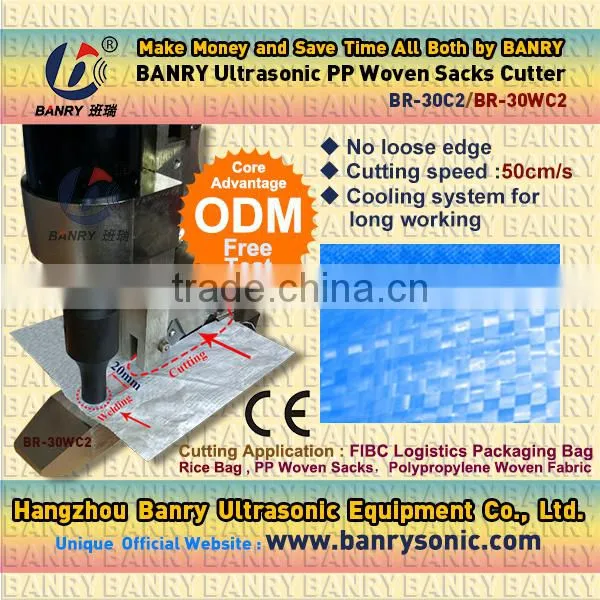

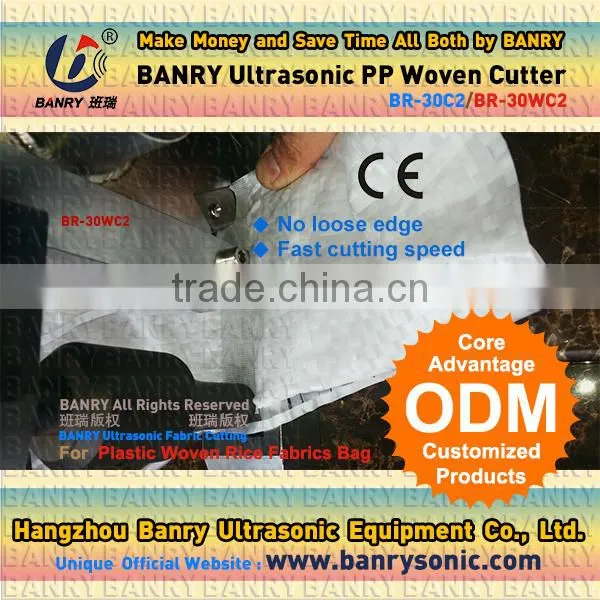

BANRY Ultrasonic BR-30C2/BR-30WC2 Cutting Machine (cutter) is suitable for plastic woven rice bag fabric , PP jumbo bag,bulk sack,container bag,FIBC bag ,polypropylene woven bag fabric etc.
♦ Quality Assurance and After-sale Service

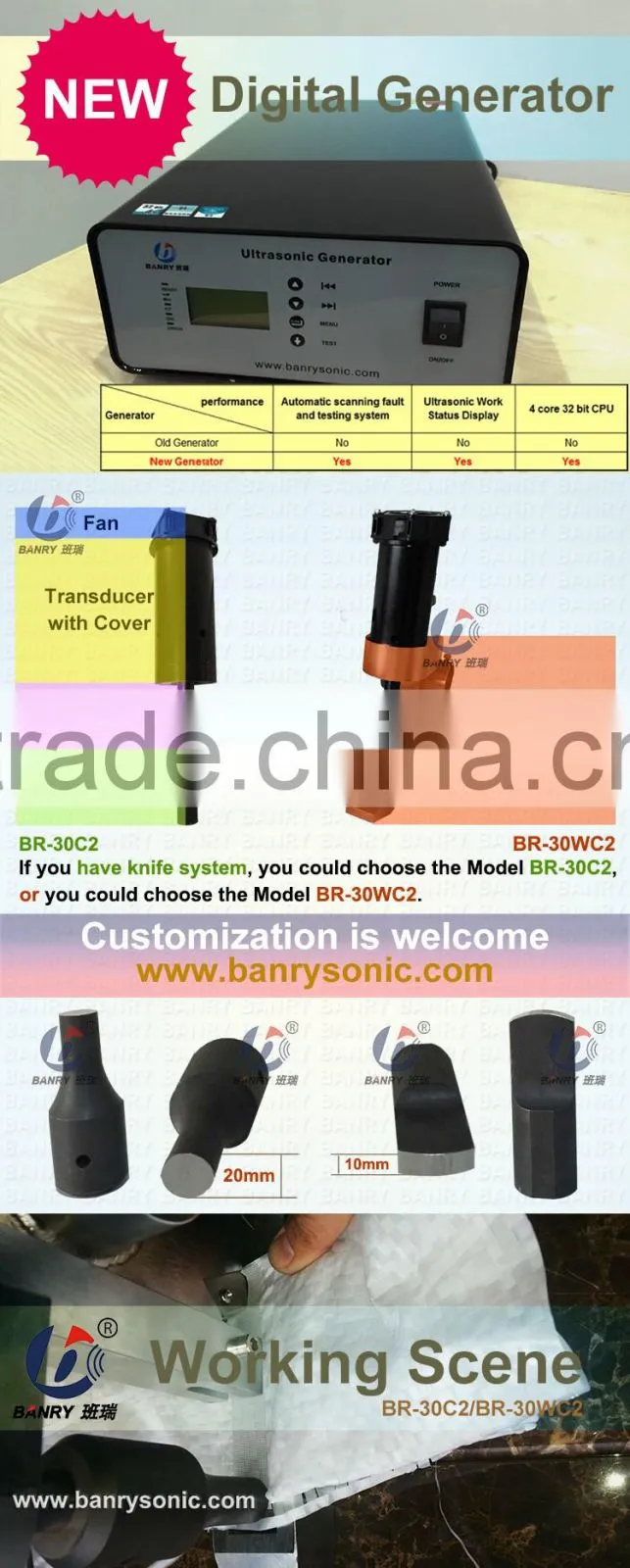

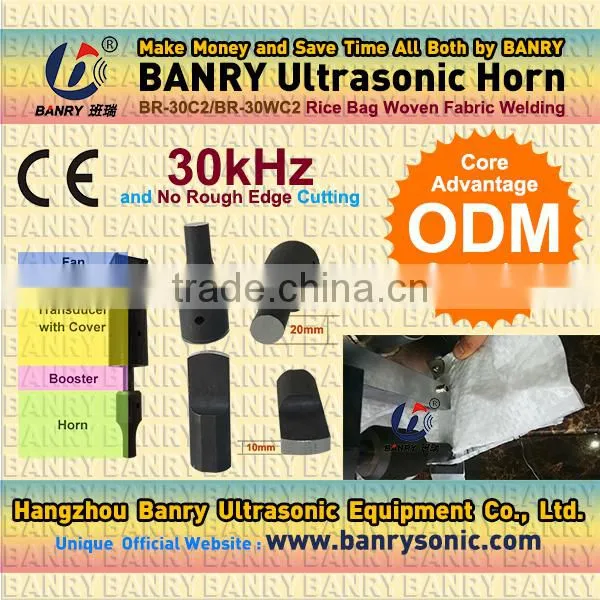

BANRY Ultrasonic Cutting Machine (Cutter) for Plastic Woven Rice Fabrics Bag is composed of ultrasonic transducer (converter) with cover , fan,booster, horn(sonotrode), generator, anvil and rack. There is a fan to cooling ultrasonic transducer (converter), ensure it can work efficiently for a long time.
♦ Principle of Ultrasonic Plastic Woven Fabric Cutting

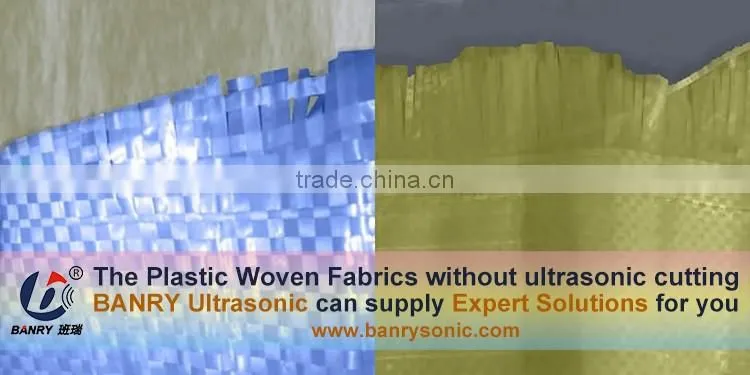

Ultrasonic energy to the vibration of ten million times, with 20 mm wide welding, the blade will cut it in half at the same time, so the cutting point will not rough selvedge like conventional cutting, will be very smooth.
| Brand/Product | BANRY/Ultrasonic Plastic Woven Fabric Machine | |
| Model No. | BR-30C2 | BR-30WC2 |
| Choice type |
if you have knife system, you can choose this type |
If you haven’t use ultrasonic before, pls choose this type |
| Welding & Cutting thickness | 2mm | |
| Frequency | 30kHZ | |
| Voltage | 220V±10 OR 110V±10,50HZ/60HZ | |
| Horn (sonotrode) |
Diameter 20mm can be design according to special requirements |
|
| N.W | 15KGS | 25KGS |
| Cable |
Standard 3m Special length, please inform us. |
|
♦ Advantage
1. Good cutting effect, good smooth cutting edge and no rough selvedge (loose edge)
2. Cutting speed, reduce the staff's working intensity, cost savings
3. Simple operation, easy to install on machine
4. Precise cutting force control
5. Cooling system ensure it can work efficiently for a long time
Please click the following pictures to see your interesting products details :
Hangzhou BANRY 30kHz No rough edge rice bag Woven Fabric welding machine ultrasonic horns
