Specifications
Thermocouple Ultrasonic MI cable end stripping machineGreat reliability
high working efficiency
High speed
What cables your ultrasonic devices can strip off?
REPLY: ultrasonic device can strip off mineral insulated (MI) cables. (see below MI cable)

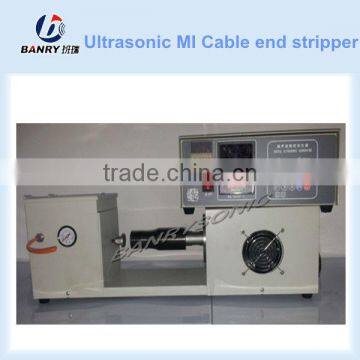

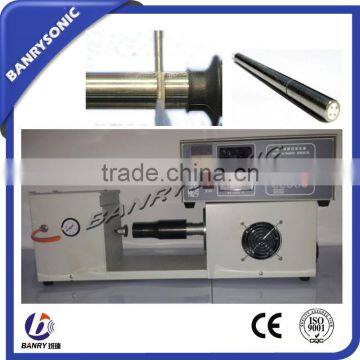

Ultrasonic mineral insulated (MI) cables jacket end stripper machine
thermocouple Ultrasonic mineral insulated (MI) cables jacket end stripper machine
20khz thermocouple Ultrasonic MI cable end stripping machine
MAIN ADVANTAGE:
- Great reliability, high working efficiency
- High speed and low energy consumption
- Very simple to set-up and operate
SPECIFICATION:
ITEM |
DECRIPTION |
|
TYPE |
BR-28MI |
BR-20MI |
Frequency |
28 kHz |
20 kHz |
Max. power |
500W |
1000W |
Control method |
Foot switch, timing control |
|
Generator |
Digital generator can be adjusted the output amplitude from 50% to100%, continuously working |
|
Cable |
Standard 5m Special length, please inform us. |
|
INTRODUCTION:
Ultrasonic mineral insulated (MI) cables jacket end stripper machine is composed of ultrasonic transducer (converter) with cover, booster, horn (sonotrode, probe) , generator and so on.
The ultrasonic generator can convert the commercial electricity into AC current with high
frequency and high voltages. After that, this current is transmitted to the transducer
assembled in the stripper part. The transducer will transform the electric energy into
mechanical energy, that’s ultrasonic waves. It signs a sudden movement in vertical.
And the transducer drives the working terminals impacting on shell of the cable.
Finally the outer shell will be crushed or the isolated mineral powder be shaken outside,
the MI cable is end stripped. Its moving part can be of electromotion or be pneumatic.
APPLICATION:
Ultrasonic MI cables jacket end stripper can work on all cables and optical cables
with mineral isolated shells.
* Fire retardant cable or mineral insulated cable manufacturers
* Fireproof cable or mineral insulated cable construction unit or the use of units
* Optical cable production units
* Optical cable construction unit or the use of units
* Thermocouple manufacturers
DIAGRAMMATIC DRAWING:
PACKAGING:
DELIVERY TIME:15 DAYS
PAYMENT TERMS:100%T/T BEFORE, L/C, ESCROW
GUARANTEE: one year for whole equipment warranty. Equipment for the warranty,
please contact us first. We will immediately feedback how to return repair.
FAQ:
1. Do you have it in stock?
Sorry, haven’t.
2. Could you supply sample?
Sorry, we can't supply sample for free, because its value is high.
3. Could you make it according to our special requirements?
Of course, we can do. Please tell us your idea or your application.
4.How long do you make the order product?
About 20days
5. Do you have operating manual?
Of course, we will put it with the goods together.
6. How about the quality?
One time business is not our target, we hope to be as one hundred enterprises.
7. Could you do OEM?
Yes, of course.
8. Could we as your agent?
Of course, it’s our pleasure.
Requirements: 1. Need to know ultrasonic knowledge.
2. Has a good business reputation.
3. Have certain economic strength.
4. Strong ability of management
5. Have a sound sales network (with the ability to expand the market).
6. Agents need to implement the unified national price policy of
our company, may set the sale price of do STH without authorization,
shall not be string.
