♦ Application field
Hangzhou BANRY Ultrasonic Food Cutter is suitable for the food products which include different hardness foods such as Cheese, Mousses Cake , Sponge Cake , Bread , Pizza , Candy , Nuts , Caramel Treats , Dried Fruits and Vegtables .
♦ Nice Ultrasonic Blade Standard
♦ Quality Assurance and After-sale Service

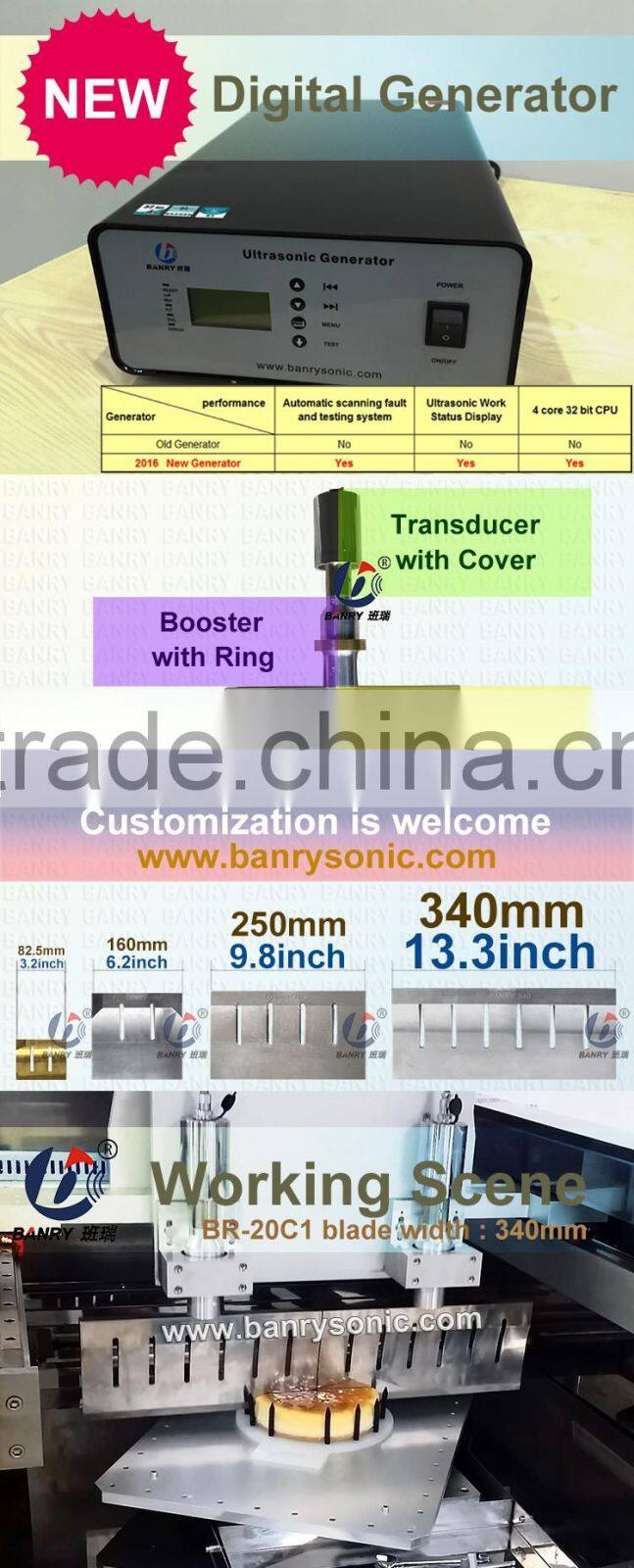

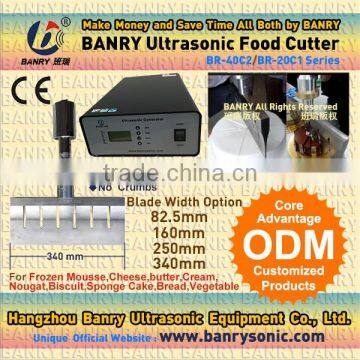

Hangzhou BANRY Ultrasonic Food Cutting machine (cutter) is composed of ultrasonic transducer (converter) with cover, booster, titanium blade and digital generator.
♦ Principle of Ultrasonic Food Cutting
Hangzhou Banry Ultrasonic Equipment Co.,Ltd offer an innovative food processing by using ultrasonic food cutter.
The ultrasonic blade which called sonotrode vibrates at high frequencies of 20kHz or 40kHz, and this high-frequency vibration reduces the friction resistance at cutting surface. This low-friction cutting make a blade cut the food products smoothly. It brings clean and beautiful cutting surface for various food products.
Also, ultrasonic cutting reduces the chips of foods during cutting. Which will reduces the downtime to clean up your production system.
Our ultrasonic food (cake) cutter will be able to install easily in your current production system.
If some trouble was happened at ultrasonic equipments, the ultrasonic generator output the error signal to customer's PLC. The system can detect the trouble and stop the system immediately.
| Brand/Product | BANRY/Ultrasonic Food Cutter Machine | |
| Model No. | BR-40C2 | BR-20C1 |
| Frequency | 40kHZ | 20kHZ |
| Max. power | 500W | 1000W |
| Blade | Titanium blade, 80.2mm width | Titanium blade, 160mm or 250mm or 340mm width |
| N.W | 10KGS | 15KGS-18KGS |
| Generator | Digital generator can be adjusted the output amplitude from 50% to 100% | |
| Control | External control | |
| Cable |
Standard 5m Special length, please inform us. |
|
♦ Advantage
1. Ultrasonic vibration reduces friction resistance between the blade and food, and it makes the blade cut smoothly without deformation.
2. The cutting blade is made of titanium. It is completely inert and enduring material.
3. Owing to it reduces the chips of food during cutting and fouling on the blade, you can reduce the down time to cleaning and increase the productivity.
Please click the following pictures to see your interesting products details :
Ultrasonic vegetable dried fruit cutter
