Ultrasonic Atomization for making AL Metal Powder
ultrasonic atomizer
MODEL: BR-40JW/BR-35JW/BR-20JW
INTRODUCTION:

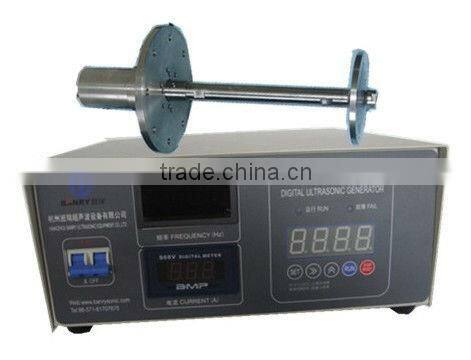

The core parts of Ultrasonic Atomization for making Metal Powder are the part of oscillation and matched Ultrasonic Generator.

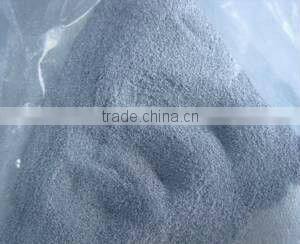

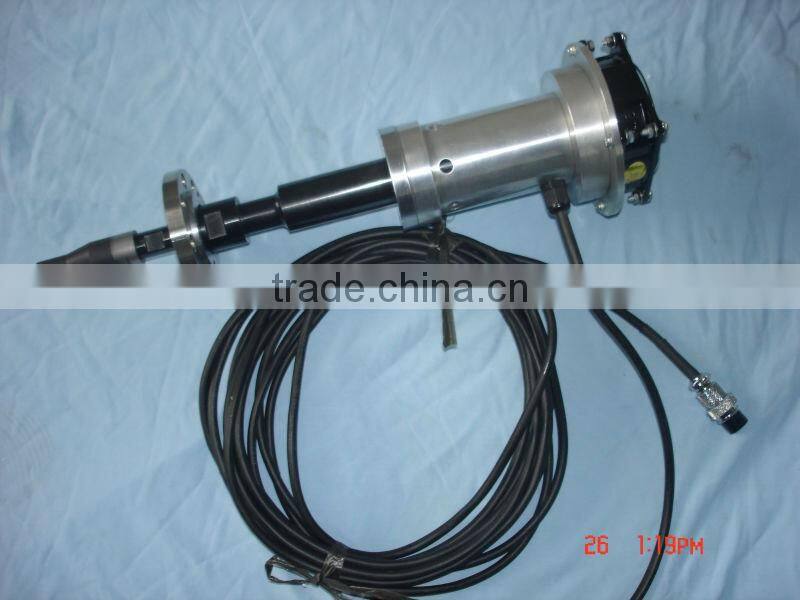

Ultrasonic Oscillation part including High-Power Ultrasonic Converter(transducer),booster ,spraying head, to produce Ultrasonic Oscillation, and then the power of oscillation shoot into the metal melt . Ultrasonic Converter (transducer) change electrical energy into the mechanical energy (ultrasonic). The working way is the movement of converter (transducer) come and goes in portrait direction, the amplitude generally in several microns. But this amplitude power in density is not enough, can not be used in directly. The booster need to enlarge amplitude according to design. Insulate metal melt and convey energy, at the same time to fix up the complete ultrasonic Oscillation system. One of spray heads connect with booster, and convey ultrasonic energy oscillation to spray head. Melting liquid metal flow into the other spray head, this is the place of highest amplitude. Liquid metal in the excitation of Ultrasonic Oscillation, were dispersed, and spray out. Collected after rapid cooling, and finally get the metal powder.
Ultrasonic Generator (power supply) including commutate circuit, oscillate circuit, magnify circuit, feedback circuit, tracking circuit, protect circuit, matching circuit, display instrument. It is used to producing in high frequency power circuit, and driving ultrasonic vibration parts. In order to suitable different working state, the power generator is adjustable in power, and also can control time of oscillation and impulse.
MAIN ADVANTAGE:
- simple structure,small shape
- steady performance ,strong reliability
- easy to airproof and maintenance, and simple to install
SPECIFICATION:
ITEM | DECRIPTION | ||
TYPE | BR-40JW | BR-35JW | BR-20JW |
Frequency | 40 kHz | 35 kHz | 20KHz |
Max. power | 300W | 800W | 1500W |
The Max. Handing capacity kg/h | ≥60 KG/H | ≥100 KG/H | ≥150 KG/H |
Structure form | portrait taper
| Rotate tape amplitude of swing | Vertical type |
Particle diameter | 50μm | ||
Generator | Digital generator can be adjusted the output amplitude from 50% to100%, continuously working | ||
Cable | Standard 5m Special length, please inform us. | ||
APPLICATION:
Suitable for atomizing Zin, AL and so on.
PACKAGING:
DELIVERY TIME:15DAYS
PAYMENT TERMS:T/T,L/C,ESCROW
GUARANTEE: one year for whole equipment warranty. Equipment for the warranty, please contact us first. We will immediately feedback how to return repair.
FAQ:
1. Do you have it in stock?
Sorry, haven’t.
2. Could you supply sample?
Sorry, we can't supply sample for free, because its value is high.
3. Could you make it according to our special requirements?
Of course, we can do. Please tell us your idea or your application.
4.How long do you make the order product?
About 20days
5. Do you have operating manual?
Of course, we will put it with the goods together.
6. How about the quality?
One time business is not our target, we hope to be as one hundred enterprises.
7. Could you do OEM?
Yes, of course.
8. Could we as your agent?
Of course, it’s our pleasure.
Requirements:
1. Need to know ultrasonic knowledge
2. Has a good business reputation.
3. Have certain economic strength.
4. Strong ability of management.
5. Have a sound sales network (with the ability to expand the market).
6. Agents need to implement the unified national price policy of our company, may set the sale price of do STH without authorization, shall not be string.
