High Power Alloy Crystallization Degassing High-power Ultrasonic Metal Melt Treatment Device

Specifications

High-power ultrasonic metal  (AL,ZIN) melt treatment device (processor)

High-power ultrasound metal melt treatment device     High-power ultrasound metal melt treatment device

High-power ultrasound metal melt treatment device    High-power ultrasound metal melt treatment device

High power alloy crystallization degassing High-power ultrasonic metal melt treatment device

MODEL: BR-20MT-10L/BR-20MT-10/BR20MT-20

INTRODUCTION:

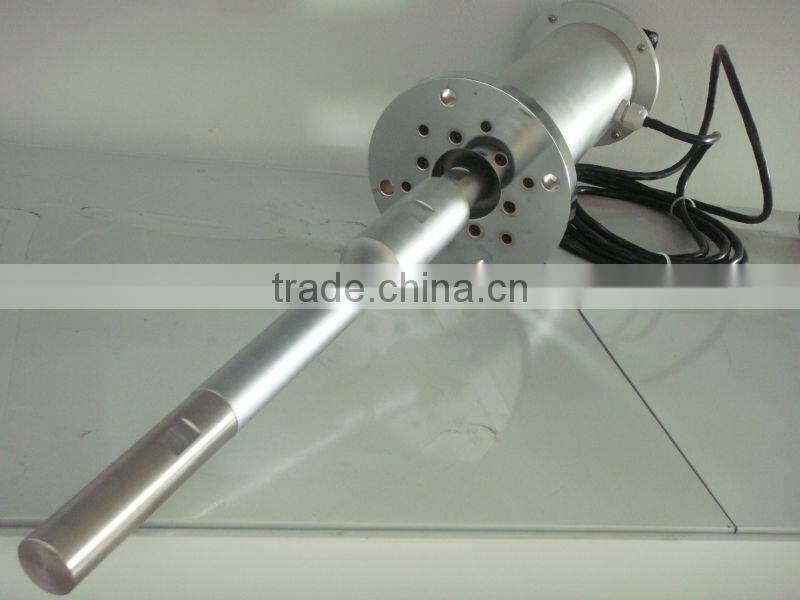

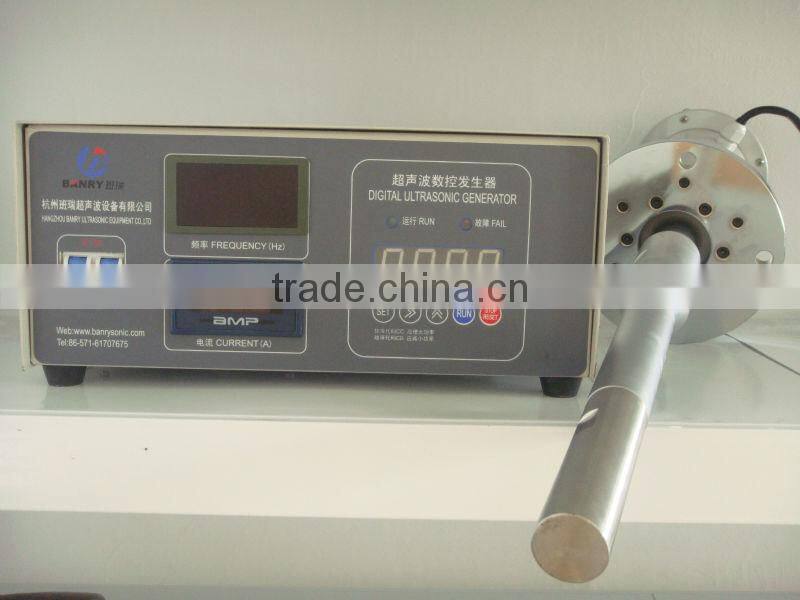

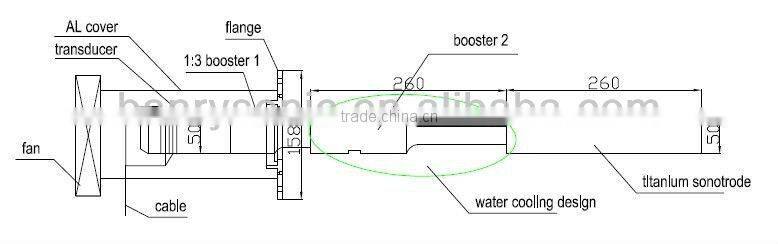

High-power ultrasonic metal melt treatment device is composed of ultrasonic transducer (converter) with cover,booster, horn (sonotrode, probe) and generator.

Ultrasonic technology can be used to improve the liquid aluminum degassing in the process of casting.

Ultrasonic machining can improve molten metal structure, improve the aluminum magnesium alloy performance. Metallic melts through the ultrasonic degassing effect, namely cavitation (cavitation is the key to remove hydrogen) ultrasonic degassing can reduce more than 50% of the hydrogen content, thus improve the density and plasticity.

Ultrasound applied in the metal melt processing there are also two special difficulties, the reason is known as: namely, high temperature and corrosion. There is a lot of literature about ultrasonic metallurgical benefits, but the technology has not been widely used. Hangzhou Banry Ultrasonic equipment co., LTD classe technology to overcome these problems.

Ultrasonic casting technology has environmental protection, no pollution, and pure physical effect of ultrasonic treatment.

MAIN ADVANTAGE:

1. Can significantly refine metal grain, homogeneous alloy composition, accelerate the bubble motion,
2. Can significantly improve metal material properties, such as strength, hardness, plasticity and toughness

SPECIFICATION:

APPLICATION:

1. foundry high strength aluminum,Magnesium alloy

2. produce aluminum and Magnesium alloy bar, sheet metal

3. degassing Various alloy materials and motor rotor crystallization.

4. foundry various metal Composites and high-strength aluminum piston.

PACKAGING:

DELIVERY TIME:15DAYS

PAYMENT TERMS:100%T/T BEFORE, L/C, ESCROW

GUARANTEE: one year for whole equipment warranty. Equipment for the warranty, please contact us first. We will immediately feedback how to return repair.

FAQ:

1. Do you have it in stock?

Sorry, haven’t.

2. Could you supply sample?

Sorry, we can't supply sample for free, because its value is high.

3. Could you make it according to our special requirements?

Of course, we can do. Please tell us your idea or your application.

4.How long do you make the order product?

About 20days

5. Do you have operating manual?

Of course, we will put it with the goods together.

6. How about the quality?

One time business is not our target, we hope to be as one hundred enterprises.

7. Could you do OEM?

Yes, of course.

8. Could we as your agent?

Of course, it’s our pleasure.

Requirements: 1. Need to know ultrasonic knowledge.

                             2. Has a good business reputation.

                             3. Have certain economic strength.

                             4. Strong ability of management

                             5. Have a sound sales network (with the ability to expand the market).

                            6. Agents need to implement the unified national price policy of our company,    may  set the sale price of do STH without authorization, shall not be string.
