High power Ultrasonic Sprayer (Atomizer) SystemHigh power Ultrasonic Sprayer (Atomizer) System
ultrasonic atomizer high power ultrasonic sprayer system
MODEL: BR-15WH/BR-20WH/BR-30WH/BR-50WH
INTRODUCTION:

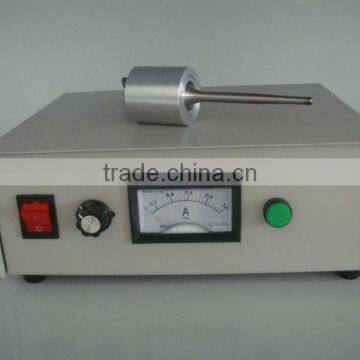

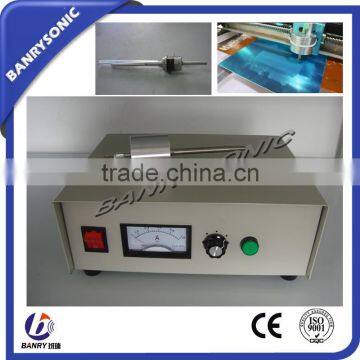

The High power Ultrasonic Sprayer (Atomizer) System is composed of ultrasonic transducer (converter) with cover,booster, nozzel and generator.Ultrasonic atomizer is using ultrasonic energy to break up the water or various liquid into several μm to more than 100μm particle. It is applied to air humidification, liquid Granulation, mixing, promoting chemical reaction, coating, and metal powder and so on.
In Ultrasonic Atomize technology of high powers, all powers are generated from the vertical transducer. The complete machine consists of ultrasonic transducer, booster, horn (sonotrode), and special generator. Its characteristics are lower working frequency, large power; high fog efficiency, single transducer fog volume can be large or small, one unit max. fog volume can over 100L/H; for medium unlimited, it can spray sewage, chemical liquid and oil mucus. The fog volume can be adjusted at will; it is mainly suitable application in industry field.
The ultrasonic atomizer will replace the traditional pressure atomizer, and be applied to various industry manufacture procedure and R&D widely. Especially in minim spay coating field. Ultrasonic atomizer’s fog is more exactitude, easy control and environmental protection.
MAIN ADVANTAGE:
1. Breakthrough of atomize technology, can atomize various liquid
2. Low power consumption, large atomize volume, energy-saving, environmental protection
3. No plug, no abrasion, no noise, no pressure, no movement parts.
4. Can be combined randomly according to the request of atomize volume
5. Using high-performance titanium and stainless steel to make
SPECIFICATION:
ITEM |
DECRIPTION |
|||
TYPE |
BR-15WH |
BR-20WH |
BR-30WH |
BR-50WH |
Frequency |
15k |
20k |
30k |
50k |
Max. fog volume |
100L/h |
70L/h |
50L/h |
2L/h |
Average fog particle diameter |
120μm |
100μm |
100μm |
70μm |
power consumption |
0.001degree/kg |
0.01degree/kg |
||
Nozzle structure |
Trumpet type |
Columnar type |
||
power |
500W |
300W |
100W |
30W |
Suitable fog medium |
water,various liquid,chemical liquid,various oil mucus,metal liquid |
|||
Cable |
Standard 3m Special length, please inform us. |
|||
APPLICATION:
Humidification , chemical mixing and producing, dryer, spray coatings, metal powder
DRAWING:
PACKAGING:
DELIVERY TIME:15DAYS
PAYMENT TERMS:T/T,L/C,ESCROW
GUARANTEE: one year for whole equipment warranty. Equipment for the warranty, please contact us first. We will immediately feedback how to return repair.
FAQ:
1. Do you have it in stock?
Sorry, haven’t.
2. Could you supply sample?
Sorry, we can't supply sample for free, because its value is high.
3. Could you make it according to our special requirements?
Of course, we can do. Please tell us your idea or your application.
4.How long do you make the order product?
About 20days
5. Do you have operating manual?
Of course, we will put it with the goods together.
6. How about the quality?
One time business is not our target, we hope to be as one hundred enterprises.
7. Could you do OEM?
Yes, of course.
8. Could we as your agent?
Of course, it’s our pleasure.
Requirements:
1. Need to know ultrasonic knowledge
2. Has a good business reputation.
3. Have certain economic strength.
4. Strong ability of management.
5. Have a sound sales network (with the ability to expand the market).
6. Agents need to implement the unified national price policy of our company, may set the sale price of do STH without authorization, shall not be string.
