♦ Application field
Main Application : It is suitable for packing plasitic food package, blister pack and tags.
Suitable welding materials : PSP, OPS, PVC, HIPS, PPF, A-PET
Using BANRY BR-60W2 Mini (small) ultrasonic spot welder can completely replace the traditional stapler, screw, card buckle, glue paste etc, thus save material for you, and the welding products are more strong and beautiful.
BANRY Ultrasonic Mini Spot Welder BR-60W2 is composed of ultrasonic transducer (converter), cover, horn (sonotrode), anvil and generator.
♦ Principle of Ultrasonic Plastic Woven Fabric Cutting
With high frequency ultrasonic vibration welding horn (sonotrode) under the moderate pressure, make the two pieces of plastic joint surface to produces friction heat and melting joint moment. Adopt suitable artifacts and reasonable interface design, which can achieve watertight, airtight andefficient cleaning of welding, avoid the adjunct to the inconvenience, efficient clean welding.
Brand / Product | BANRY / Ultrasonic Mini Spot Welder |
Type | BR-60W2 |
Frequency | 60kHz |
power | 20W |
Welding time | Can be controlled, 0-5 seconds to adjust |
N.W | 1.5KGS |
Generator | Matched with new 100 type generator; standard dc 16v low voltage output of the power adapter; it also can be matched with batteries for outdoor use, very safe and reliable. |
♦ Advantage
1. Quick, efficient, clean and solid
2. Timer : 0 to 5 seconds to adjust, hand shank with timing work instructions.
3. Ultrasonic only can work after clamp the hand shank; automatically stops ultrasonic after the material fully welded, which will avoid the welding head (horn, sonotrode) to wear and tear.
4. It’s easy to use like a stapler!
5. Standard dc16v low voltage output of the power adapter; it also can be matched with batteries for outdoor use, very safe and reliable.
Please click the following pictures to see your interesting products details :
Hangzhou BANRY Ultrasound Ultrasonic Plastic package box sewing New Non used small battery spot welder
g machine

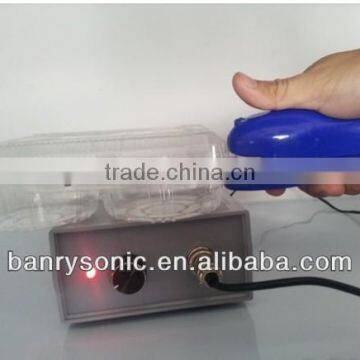

25W 16V Outdoor battery portable mini spot Hand-held ultrasonic welding machine
