Large Capacity Rotary Dryer for Bentonite, Titanium Concentrate, Coal, Manganese Ore, Pyrite

Large capacity rotary dryer for Bentonite, Titanium concentrate, Coal, Manganese ore, Pyrite

 Limonite is an iron ore consisting of a mixture of hydrated iron(III) oxide-hydroxides in varying composition.

Limonite rotary kiln consists of cylindrical shell, supporting device, supporting device of thrust roller, driving unit, moveable kiln head, sealing device on the tail of kiln, coal dust pipe device, etc.

Limonite rotary kiln technical parameter:

Limonite rotary kiln introduction:

Limonite Rotary kiln cylinder is composed of steel plate, cylinder body is builded with laying bricks or refractory lining,which has specified slope with levels,rotary kiln has three tyres on the supporting device, there fixed a big gear ring with tangential spring in the inner cylinder of material feeding end of belting leather accessories,rotary kiln has a small gear wheel interdigitate with the big gear ring.

Operation process of limonite rotary kiln,the main drive motor gives power to the open gear device through the main reducer,and then drives the rotary kiln operation.
Materials enter into kiln tail for calcination,As a result of rotary kiln cylinder slope and rotary kiln ortation,the materials are rotated along the circumferential direction and along the axial direction (from high-end to low-end), After the complete decomposition and calcination process, finally,the produced clinker are cooled by cooling machine through the kiln head cover into the cooling machine.Fuel from the kiln head spray into the rotary kiln, in which waste air and clinker do the heat exchange,and then exhaust air from the kiln tail.

Limonite rotary kiln production line:

1.pulverized coal(0-5mm) mixed with limonite(0-20mm) for calcining in limonite rotary kiln

2. After water quenching, get magnetization limonite

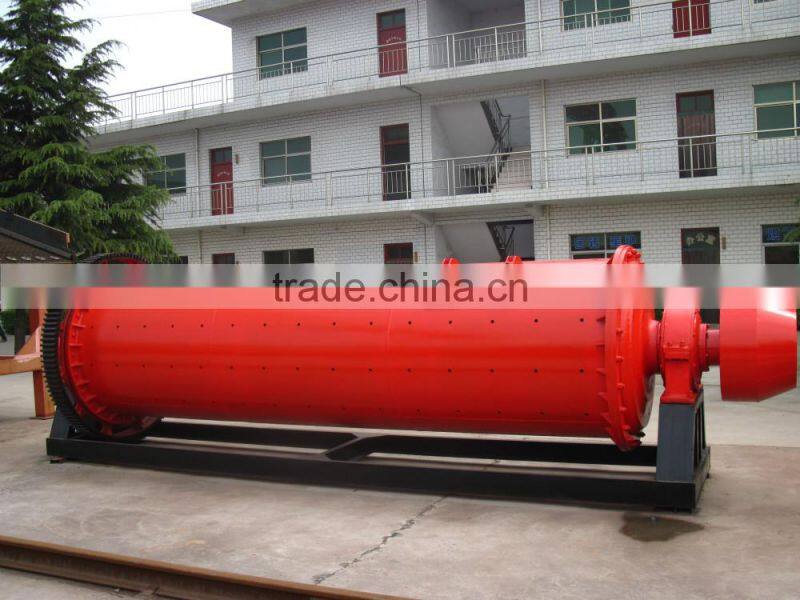

3.Magnetization limonite grinded by ball mill machine

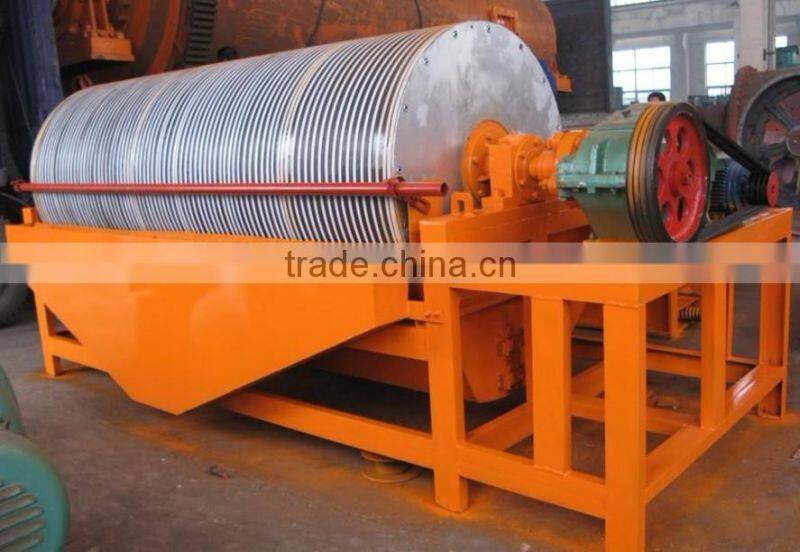

4.Using magnetic separator for iron concentrate

Derui main products:

Crushing equipment: jaw crusher, impact crusher, cone crusher, hammer crusher, sand making machine, vibrating feeder, vibrating screen;

Mineral processing equipment: ball mill, spiral chute, classifier, flotation machine, magnetic separator;

Drying equipments: sawdust dryer, wood chips dryer, sand dryer, coal dryer, mine powder dryer,etc.

Building material equipment: rotary kiln, lime rotary kiln, cement rotary kiln,  rotary kiln bauxite,Limonite rotary kiln,etc.

Production line: sand production line, stone production line, active lime production line, cement production line.
